Traxon e:cue SYMPL serial Node

Traxon e:cue

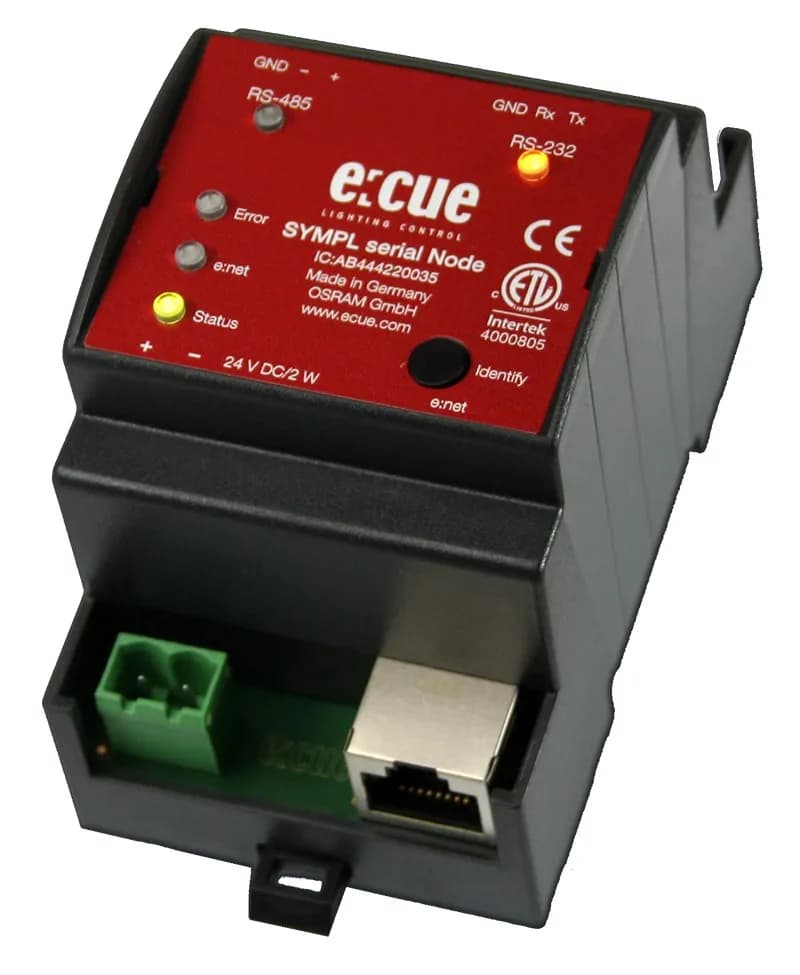

Traxon e:cue SYMPL serial Node

The e:cue SYMPL serial Node is a two-channel serial interface that can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent serial ports, the RS-232 and the RS-485 channel. The e:cue SYMPL serial Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. e:cue SYMPL serial Node is straightforward, reliable and easy-to-use interface solution for SYMPHOLIGHT.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

  • Two serial interfaces, the RS-232 and the RS-485
  • Flexible mounting onto 35 mm DIN rails or vertical surfaces
  • Simple and easy integration into e:cue SYMPHOLIGHT
  • Separate webinterface for configuration

Technical data

  • Dimensions (W x H x D): 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)
  • Weight: 100 g
  • Power Supply: 24 V DC (terminal plug), or PoE IEEE 802.3af on RJ45
  • Power Consumption: 2 W (incl. RS-485 bus term.)
  • Operating Temperature: 0 … 50 °C / -4 … 122 °F
  • Mounting: on 35 mm DIN rail (EN 60715), 3 units, or with key hole on any stable vertical surface
  • Interface: 2 x serial interfaces: 1 x RS-232, 1 x RS-485, on 3-pin terminal plug
  • Ethernet-Port: 1 x e:net 10/100 Mbit/s, RJ-45

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, ETL, UKCA
