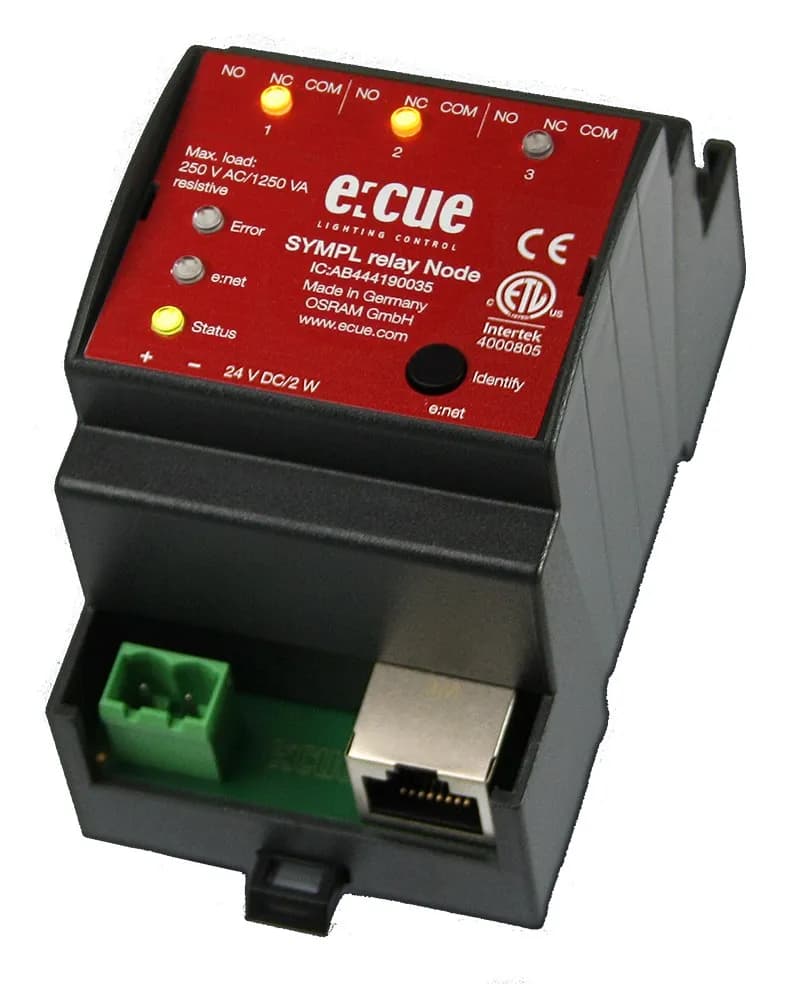

Traxon e:cue SYMPL relay Node

Traxon e:cue

Traxon e:cue SYMPL relay Node

The e:cue SYMPL relay Node is a switching interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides three relay outputs in single-pole / double-throw configuration. The e:cue SYMPL relay Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The e:cue SYMPL relay Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

  • Three relay outputs SPDT for ...
  • up to 5 A/250 V AC or 3 A/30 V DC
  • Flexible mounting onto 35 mm DIN rails or vertical surfaces
  • Simple and easy integration into e:cue SYMPHOLIGHT
  • Separate webinterface for configuration

Technical data

  • Dimensions (W x H x D): 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)
  • Weight: 125 g
  • Power Supply: 24 V DC (terminal plug), or PoE IEEE 802.3af on RJ45
  • Power Consumption: 2.8 W
  • Operating Temperature: 0 … 50 °C / -4 … 122 °F
  • Mounting: on 35 mm DIN rail (EN 60715), 3 units, or with key hole on any stable vertical surface
  • Interface: 3 x SPDT relays, on 3-pin terminal plug
  • Ethernet-Port: 1 x e:net 10/100 Mbit/s, RJ-45

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, ETL, UKCA
