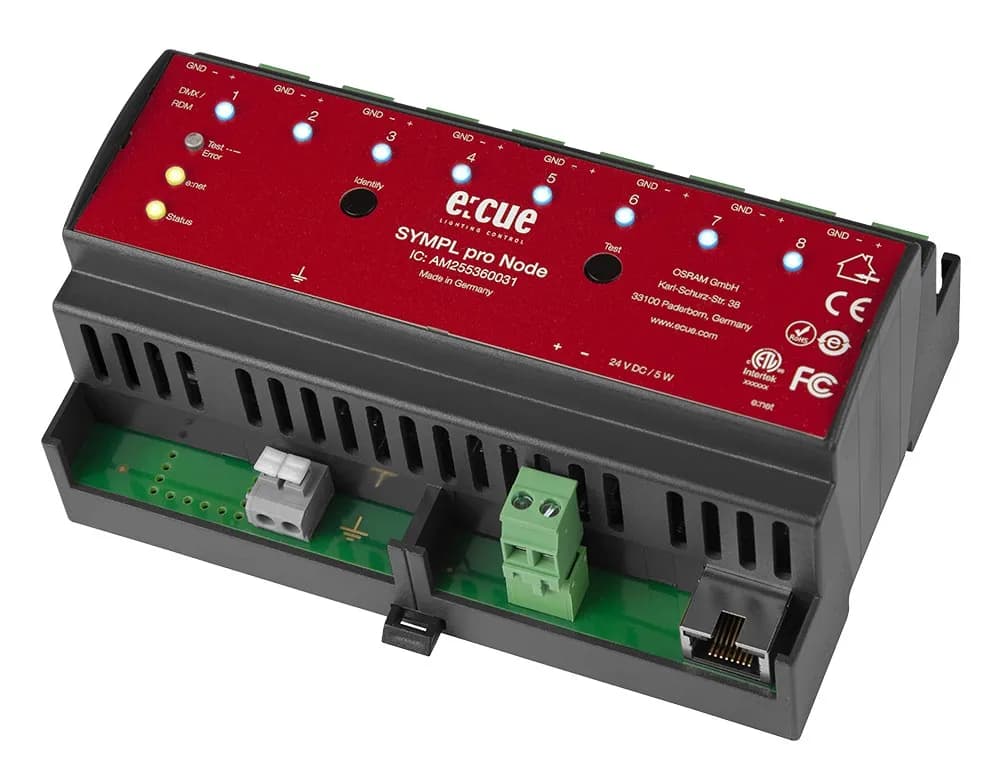

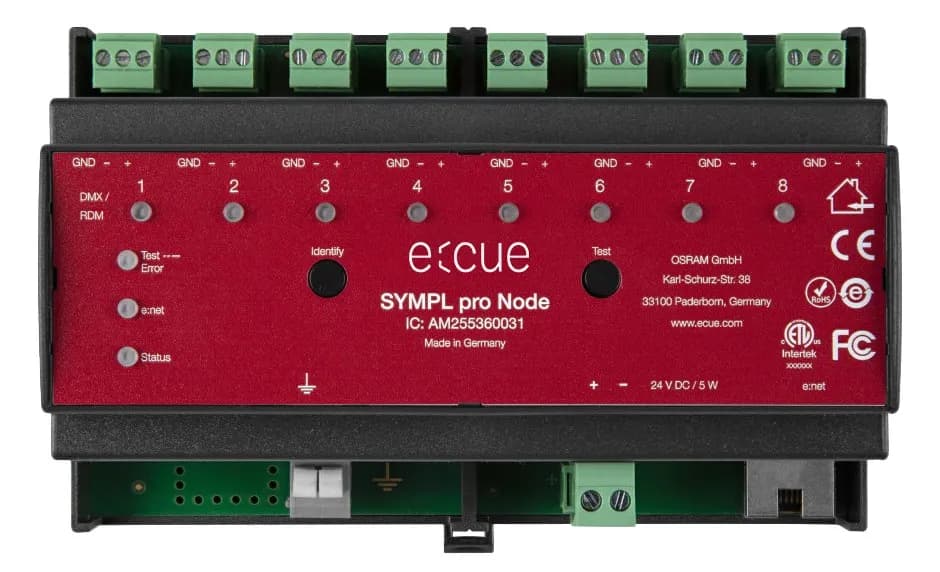

Traxon e:cue SYMPL pro Node

Image 1 of 2

Traxon e:cue

Traxon e:cue SYMPL pro Node

The smart DMX/RDM controller for state-of-the-art lighting control projects has been specifically designed with tough outdoor environments in mind. The SYMPL pro Node is an eight-channel DMX / e:pix / m:pix and RDM interface for use with e:cue’s lighting control solution SYMPHOLIGHT. It provides eight independent DMX/RDM interfaces for eight DMX512 universes with 4096 channels. Also available as e:pix version (16384 channels) and m:pix version (12288 channels). The SMYPL pro Node is especially designed for projects in tough outdoor environments. Connection to the server runs via Ethernet interface with 100 Mbit/s. The SYMPL pro Node can be powered by an external power supply or via Power-over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The SYMPL pro Node is a simple, reliable and easy to use interface solution for e:cue lighting control solutions with SYMPHOLIGHT.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

  • 8 outputs for DMX512/RDM or e:pix or m:pix (dependent on model)
  • Highly isolated outputs
  • Integrated protection against surge (Level 3)
  • Protection against miswiring
  • Extended operating temperature -40 … 70°C*
  • Embedded temperature & humidity sensors
  • Reverse polarity protection
  • Backup-mode on data loss
  • Power-over-Ethernet
  • Test mode access via button

Technical data

  • Dimensions (W x H x D): 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip)
  • Weight: 250 g / .55 lb
  • Power Supply: 24 … 48 V DC (terminal plug), reverse polarity protection or PoE IEEE 802.3af on RJ45
  • Power Consumption: Max. 8 W (incl. DMX termination)
  • Operating Temperature: -40 … 70 °C* / -40 … 158 °F*
  • Mounting: On 35 mm DIN rail (EN 60715) or with key hole on any stable vertical surface
  • Interface: 8 x DMX512, Isolated in pairs
  • Ethernet-Port: 1 x e:net 10/100 Mbit/s, RJ-45

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, ETL, UKCA
