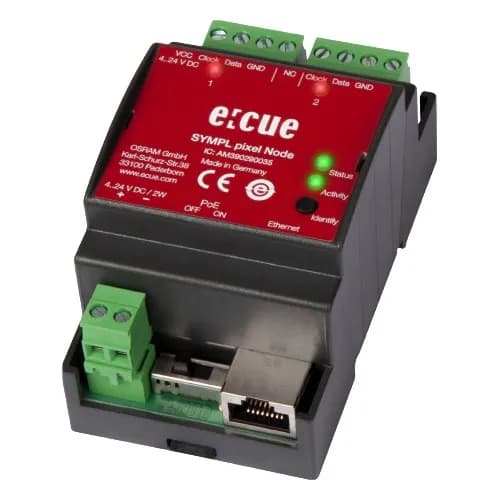

Traxon e:cue SYMPL pixel Node

Traxon e:cue

Traxon e:cue SYMPL pixel Node

The SYMPL pixel Node is an LED pixel controller which supports various serial addressable LED pixel products like strips, dots and boards with individually controllable pixels. It can control a wide range of asynchronous and synchronous protocols (SPI). You can create content using our software e:cue SYMPHOLIGHT (optional). The SYMPL pixel Node comes with two pixel outputs with screw terminals. For each of the two outputs, you can configure the pixel protocol separately. With the SYMPL pixel Node, it is possible to run up to 2 x 2048 channels (=4096 in total, = 1364 RGB pixels). You can cover distances of up to 300 m between the pixel Node and the lighting fixture with the optional Pixel Range Extender.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

  • e:net to serial addressable LED pixel interface, with 2 outputs
  • Output a wide range of asynchronous and synchronous (SPI) protocolsannel with e:pix
  • Controls up to 2048 pixel channels per output (= 682 RGB or 512 RGBW pixels)
  • Supports 512 DMX channels per output (= 170 RGB pixels)
  • The pixel Node can be powered in 3 different ways: external PSU, PoE, directly from the connected fixture.
  • With the optional Pixel Range Extender you can increase the distance up to 300 m between the node and lighting fixture
  • Simple and easy integration in e:cue SYMPHOLIGHT
  • Web interface for status and configuration
  • Advanced direct testing of output functionality on connected lighting fixtures

Technical data

  • Dimensions (W x H x D): 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)
  • Weight: 100 g
  • Power Supply: Power supply input 5 … 24 V DC pass back power from Pixel Port 1 (e.g. from Pixel Strip), or 5 … 24 V DC terminal plug, or PoE IEEE 802.3af on RJ45
  • Power Consumption: 2 W
  • Operating Temperature: 0 … 50 °C / -4 … 122 °F
  • Mounting: on 35 mm DIN rail (EN 60715), 3 units, or with key hole on any stable vertical surface
  • Ethernet-Port: 1 x ethernet 10/100 Mbit/s, RJ45 for e:net and PoE

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, ETL, UKCA, RoHS
