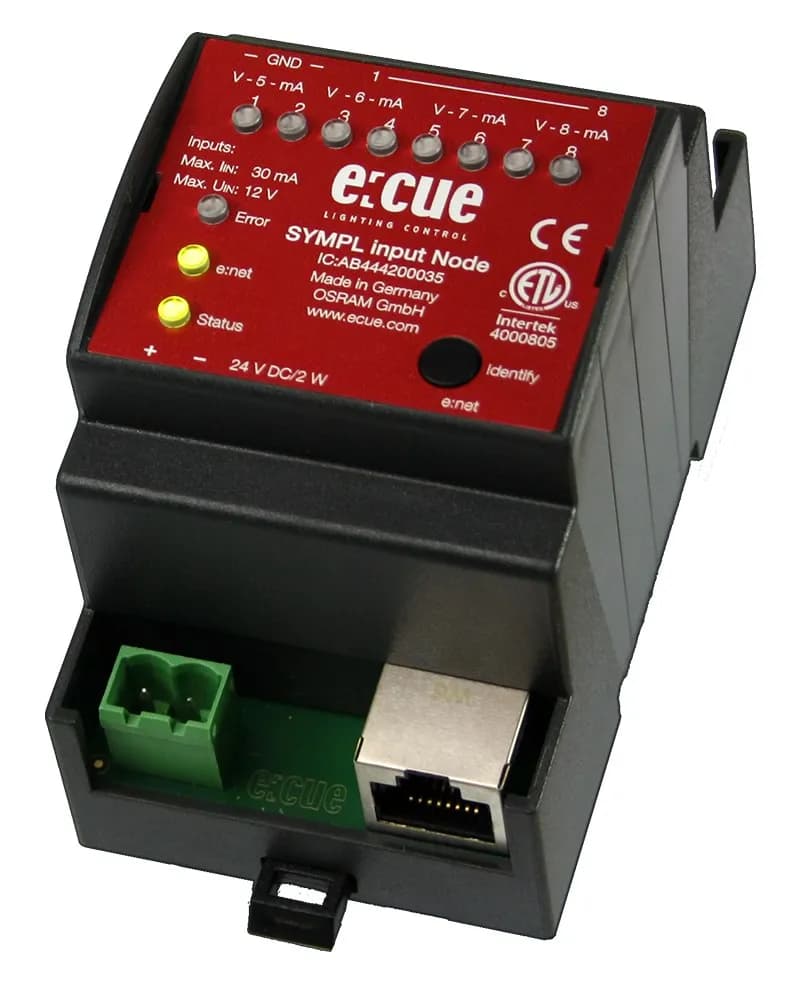

Traxon e:cue SYMPL input Node

The e:cue SYMPL input Node is an eight-channel analog input interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides eight independent analog 10 V inputs, whereas four of them also support a 20 mA constant current input, which can be configured by operating a slide switch. The e:cue SYMPL input Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The e:cue SYMPL input Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.

Manufacturer: Traxon e:cue
Luminaire type: Lighting control

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

Eight analog inputs for 0 ... 10 V
Four inputs switchable to 0 ... 20 mA input
Input configuration with a slide switch
Flexible mounting onto 35 mm DIN rails or vertical surfaces
Simple and easy integration into e:cue SYMPHOLIGHT
Separate webinterface for configuration

Technical data

Dimensions (W x H x D): 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)
Weight: 100 g
Power Supply: 24 V DC (terminal plug), or PoE IEEE 802.3af on RJ-45
Power Consumption: 1.2 W
Operating Temperature: 0 … 50 °C / -4 … 122 °F
Mounting: on 35 mm DIN rail (EN 60715), 3 units, or with key hole on any stable vertical surface
Interface: 8 x analog inputs 0 … 10 V, 4 of them switchable to 0 … 20 mA, Common ground connector, Terminal plug row
Ethernet-Port: 1 x e:net/ethernet 10/100 Mbit/s, RJ-45

Protection and resistance

Protection Class: IP20

Certifications

CE, ETL, UKCA
