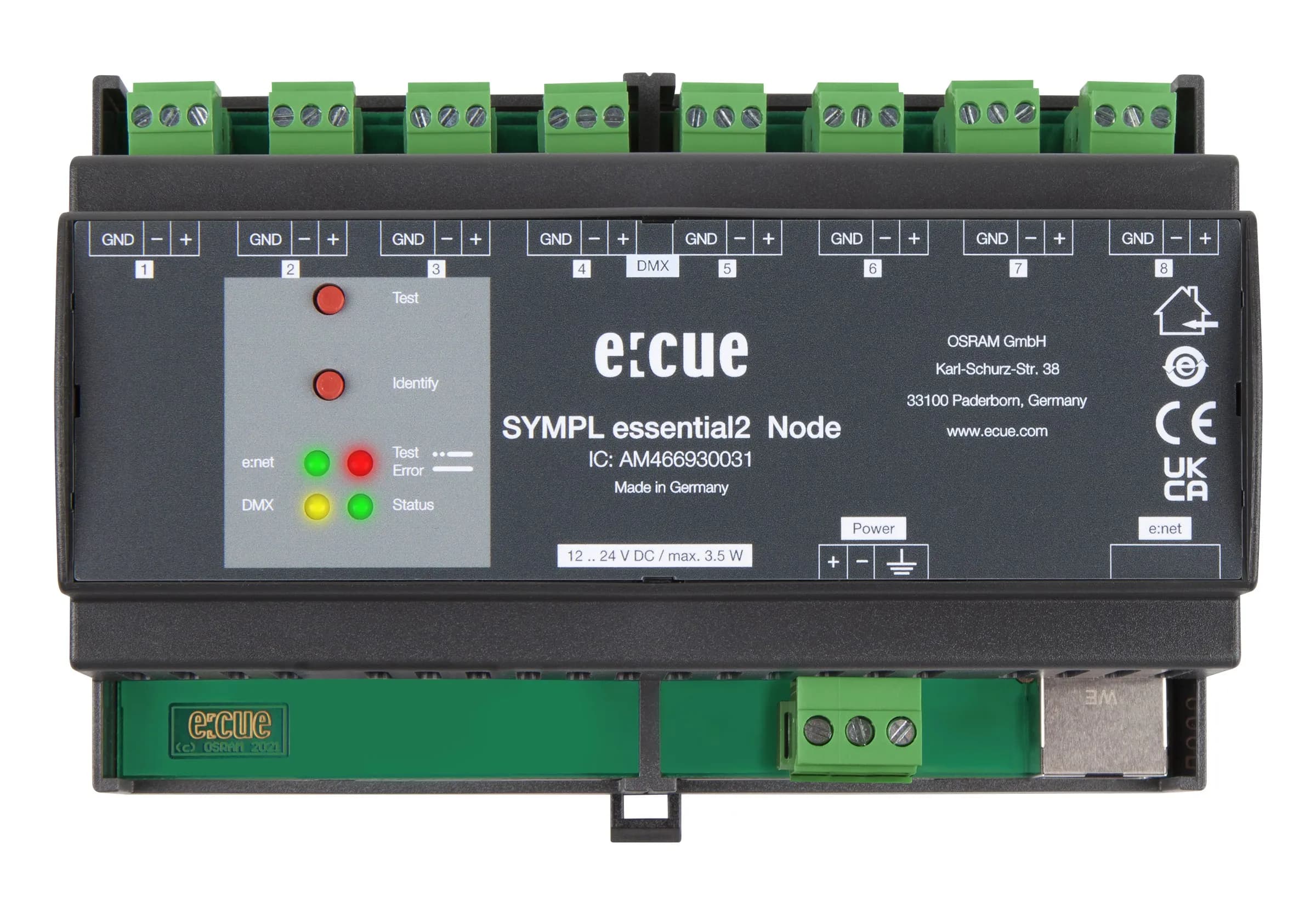

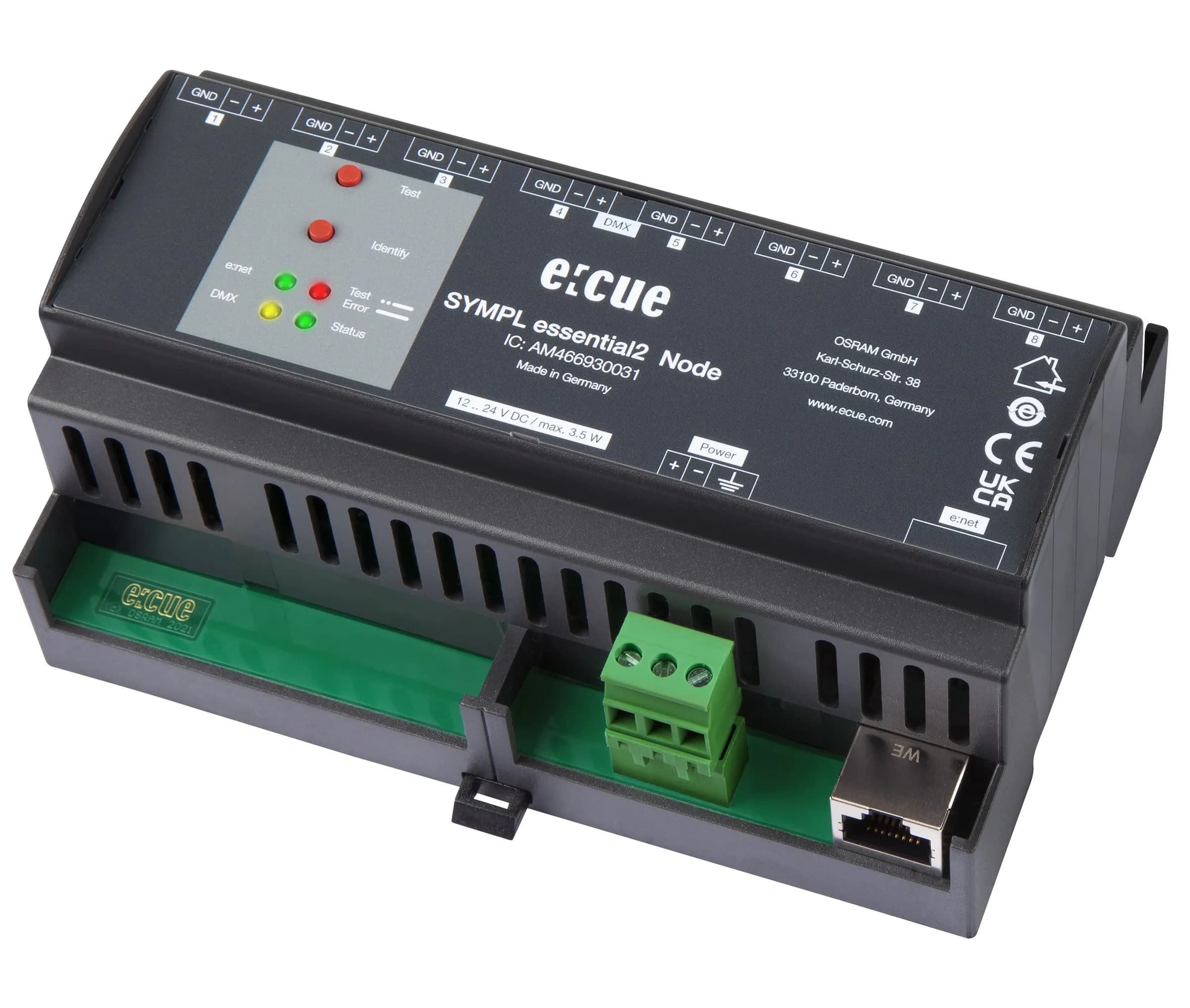

Traxon e:cue SYMPL essential2 Node

The new smart DMX controller for state-of-the-art lighting control projects has been specifically designed with tough outdoor environments in mind. The SYMPL essential2 Node is an eight-channel DMX interface for use with e:cue’s lighting control solutions SYMPHOLIGHT and LAS. It provides an interfaces for up to 4096 DMX channels split into 8 universes with each 512 channels (DMX512 with SYMPHOLIGHT or LAS). The SYMPL essential2 Node can be powered by an external power supply or via Power-over-Ethernet (PoE). It is easily mounted on standard 35 mm DIN rails, or with key holes in the housing base.

Manufacturer: Traxon e:cue
Luminaire type: Lighting control

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

8 ports (universes) for DMX512
Integrated protection against surge (Level 3)
Power-over-Ethernet
High operating temperature: -30 ... 55 °C
Isolated DMX outputs
Surge protection (DMX side)
Reverse polarity protection
Test mode via button and web interface

Technical data

Dimensions (W x H x D): 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4, in (excl. fastening clip)
Weight: 250 g / .55lb
Power Supply: 12 … 24 V DC (terminal plug), reverse polarity protection or, PoE IEEE 802.3af on RJ45
Power Consumption: Max. 3.5 W (incl. DMX termination)
Operating Temperature: -30 … 55 °C / -22 … 131 °F
Mounting: On 35 mm DIN rail (EN 60715) or, with key hole on any stable vertical surface
Output interfaces: 8 x DMX512, short circuit protected, isolated in pairs, surge protection, 3-pin terminal plug
Ethernet-Port: 1 x e:net 10/100 Mbit/s, RJ-45

Protection and resistance

Protection Class: IP20

Certifications

CE, UKCA
