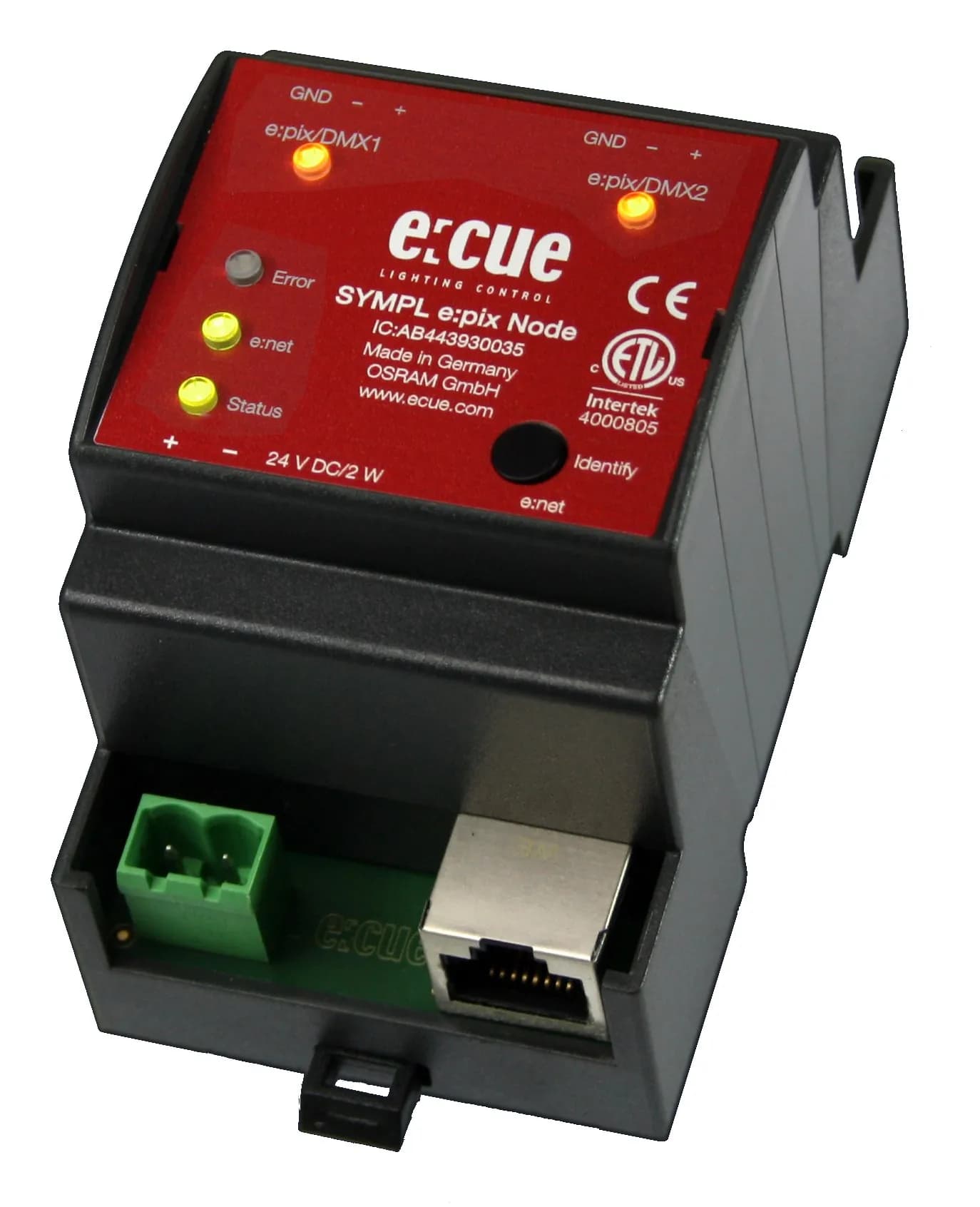

Traxon e:cue SYMPL e:pix Node

Traxon e:cue

Traxon e:cue SYMPL e:pix Node

The SYMPL e:pix Node is a two-channel e:pix interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent e:pix universes for up to 4096 channels. The SYMPL e:pix Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The SYMPL e:pix Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

  • Two e:pix or DMX outputs
  • Up to 4096 channel with e:pix
  • Flexible mounting onto 35 mm DIN rails or vertical surfaces
  • Simple and easy integration into e:cue SYMPHOLIGHT
  • Separate webinterface for configuration

Technical data

  • Dimensions (W x H x D): 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)
  • Weight: 100g
  • Power Supply: 24 V DC (terminal plug) or PoE IEEE 802.3af on RJ45
  • Power Consumption: 2 W (incl. e:[ix termination)
  • Operating Temperature: 0 … 50 °C / -4 … 122°F
  • Mounting: On 35 mm DIN rail (EN 60715), 3 units, or with key hole on any stable vertical surface
  • Interface: 2 x e:pix, 2048 channels/universe, individually isolated (1 kV), 3-pin terminal plug
  • Ethernet-Port: 1 x e:net 10/100 Mbit/s, RJ-45

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, ETL, UKCA
