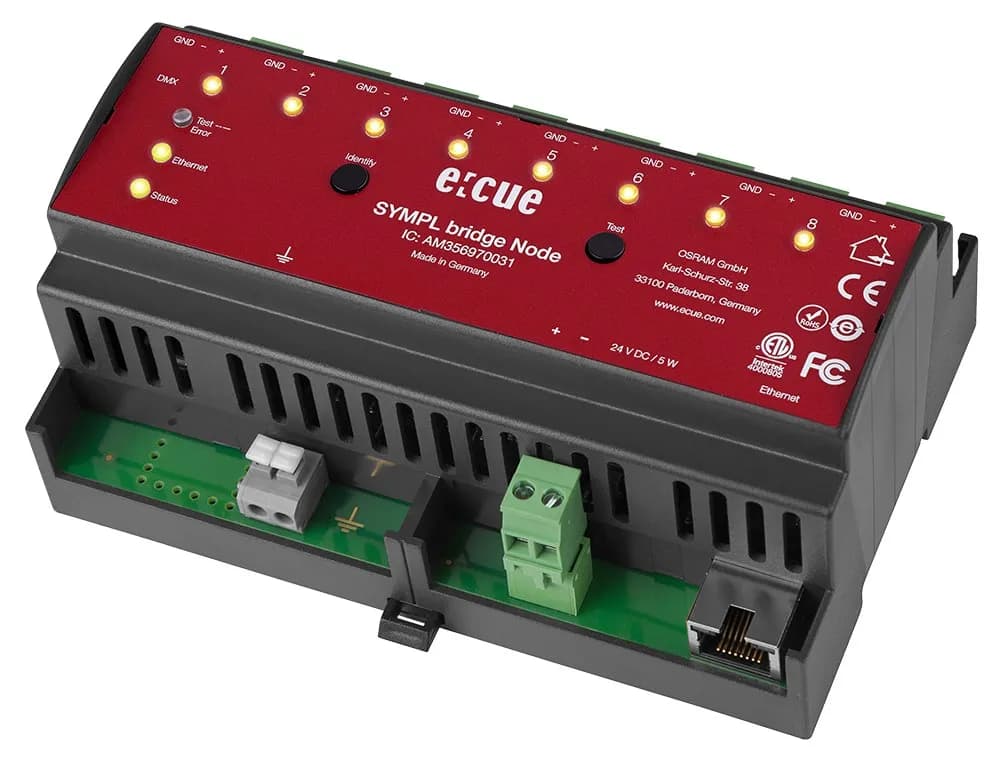

Traxon e:cue SYMPL bridge Node

Traxon e:cue

Traxon e:cue SYMPL bridge Node

sACN/Art-Net/e:net to DMX512/e:pix interface The SYMPL bridge Node is similar to the Bridge8 but the key difference is that besides DMX it also supports e:cue’s protocol “e:pix “. This grants full access to Traxon fixtures via the e:pix protocol by 3rd party controller utilizing Art-Net or sACN with up to 32 Universes. Enjoy the advantages of the e:pix protocol now also with any 3rd party controller. The SMYPL bridge Node is specially designed for projects in tough outdoor environments. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature – the outputs are isolated up to 3,75kV. The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control

Price on request

Project-based price – we will send a quote within one working day.

Message · Traxon e:cue

Contact us

On the manufacturer site

Full technical data, dimensioned drawings and files (IES, BIM) are on the manufacturer’s page – always the latest version.

Control for a whole building? Our automation engineer helps choose the system and commissions it. Lighting automation

Key features

  • 8 outputs for DMX512 or e:pix
  • Switch between two input sources
  • Highly isolated outputs
  • Support for unicast or multicast mode
  • Integrated protection against surge (Level 3)
  • Protection against miswiring
  • Extended operating temperature -40….70°C*
  • Embedded temperature & humidity sensors (with SYMPHOLIGHT)
  • Reverse polarity protection
  • Backup-mode on data loss (with SYMPHOLIGHT)
  • Power-over-Ethernet
  • Test mode access via button
  • Simple and easy integration in e:cue SYMPHOLIGHT
  • For sACN "Full Frame Mode" is used

Technical data

  • Dimensions (W x H x D): 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip
  • Weight: 250 g / .55 lb
  • Power Supply: 24 … 48 V DC (terminal plug), reverse polarity protection or PoE IEEE 802.3af on RJ45
  • Power Consumption: Max. 8 W (incl. DMX termination)
  • Operating Temperature: -40 … 70 °C* / -40 … 158 °F*
  • Mounting: On 35 mm DIN rail (EN 60715) or with key hole on any stable vertical surface
  • Interface: 8 x DMX512 / 8 x e:pix, Isolated in pairs
  • Ethernet-Port: 1 x e:net/ethernet 10/100 Mbit/s, RJ-45, Surge protection

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, ETL, UKCA
