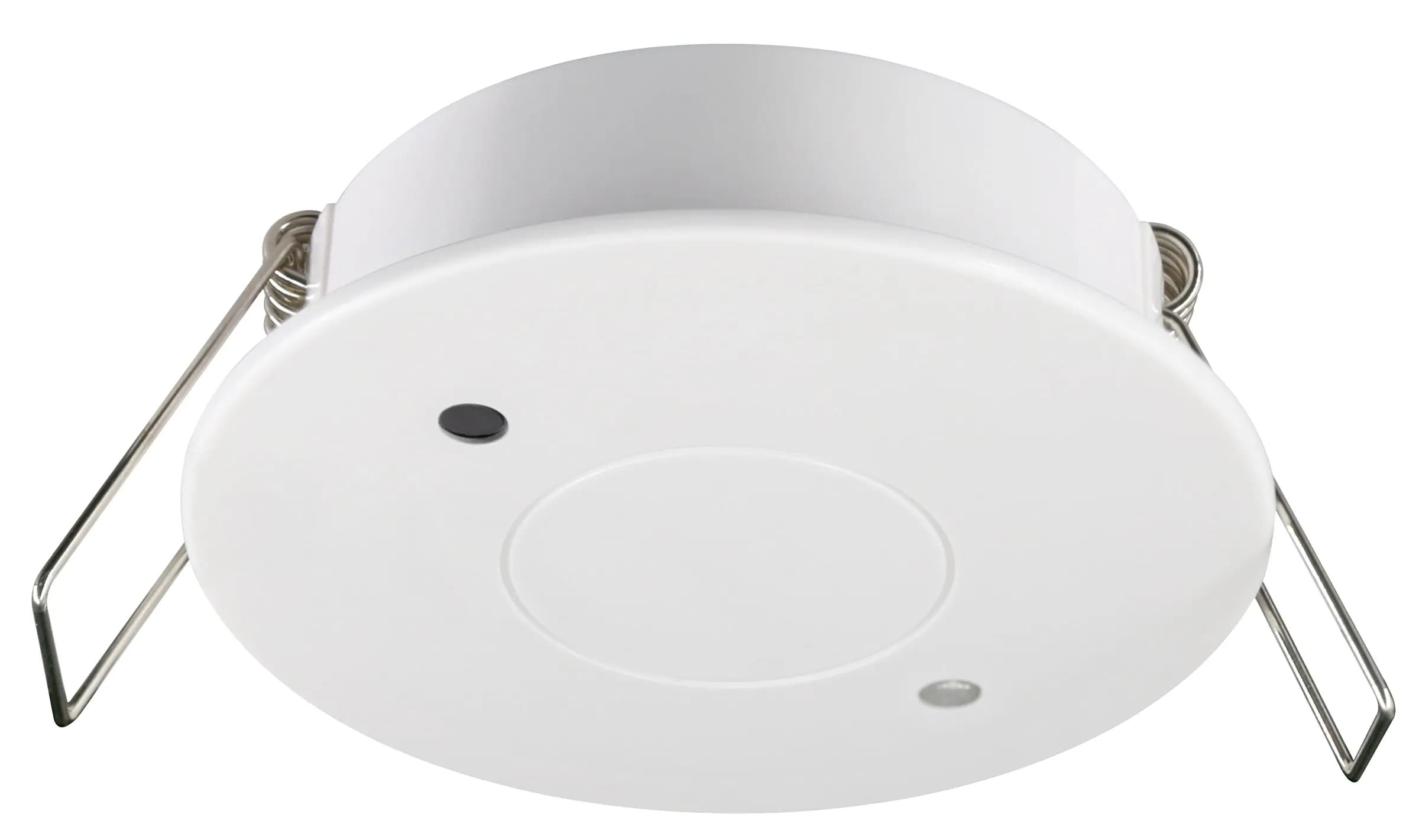

Traxon e:cue SYMPHO DALI-2 Multi Sensor HF

Traxon e:cue

Traxon e:cue SYMPHO DALI-2 Multi Sensor HF

The DALI-2 Multi Sensor HF for ceiling mounting is a DALI-2 and D4i-certified device that combines a motion sensor and a light sensor. The device performs motion detection and measures illuminance. The D4i-certified DALI-2 Multi Sensor HF can be operated with D4i LED drivers or luminaires; the luminaires simply need to be connected to the mains supply. The result is increased comfort for occupants and significant energy savings that meet the most demanding energy regulations for buildings. The sensor is suitable for high-bay applications that require a large detection area and sensor-based automation. The DALI-2 Multi Sensor HF can be powered via the DALI bus and does not require an additional power supply, which means simpler and faster wiring and installation. y Microwave motion detection y Two antennas, large detection area y Motion sensor instance type 3 (303) y Illuminance measurement y Light sensor instance type 4 (304) y DALI-2 & D4i certified y Recessed ceiling installation y Cost-effective solution for energy savings y Compatible with universal DALI-2 compliant central control unit that supports sensor input devices.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control

Price on request

Project-based price – we will send a quote within one working day.

Message · Traxon e:cue

Contact us

On the manufacturer site

Full technical data, dimensioned drawings and files (IES, BIM) are on the manufacturer’s page – always the latest version.

Control for a whole building? Our automation engineer helps choose the system and commissions it. Lighting automation

Key features

  • Microwave motion detection
  • DALI-2 & D4i certified
  • DALI bus powered (No extra power supply needed)
  • Two antennas, large detection area
  • Motion sensor instance type 3 (303)
  • Illuminance measurement
  • Light sensor instance type 4 (304)
  • Ceiling recessed installation

Technical data

  • Dimensions (W x H x D): 83 x 83 (67 x 67) x 21 mm / 3.27 x 3.27 (2.64 x 2.64) x 0.83 in
  • Power Supply: DALI Bus
  • Control: DALI
  • Operating Temperature Range: 0 … 40 °C / 32 .. 104 °F, indoor use only

Certifications

  • CE, UKCA, DALI-2, RoHS
