Traxon e:cue Linear Plus

Traxon e:cue

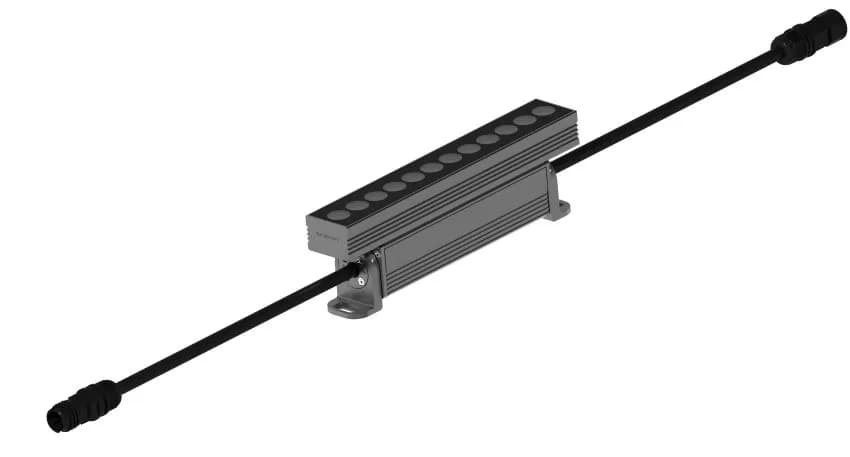

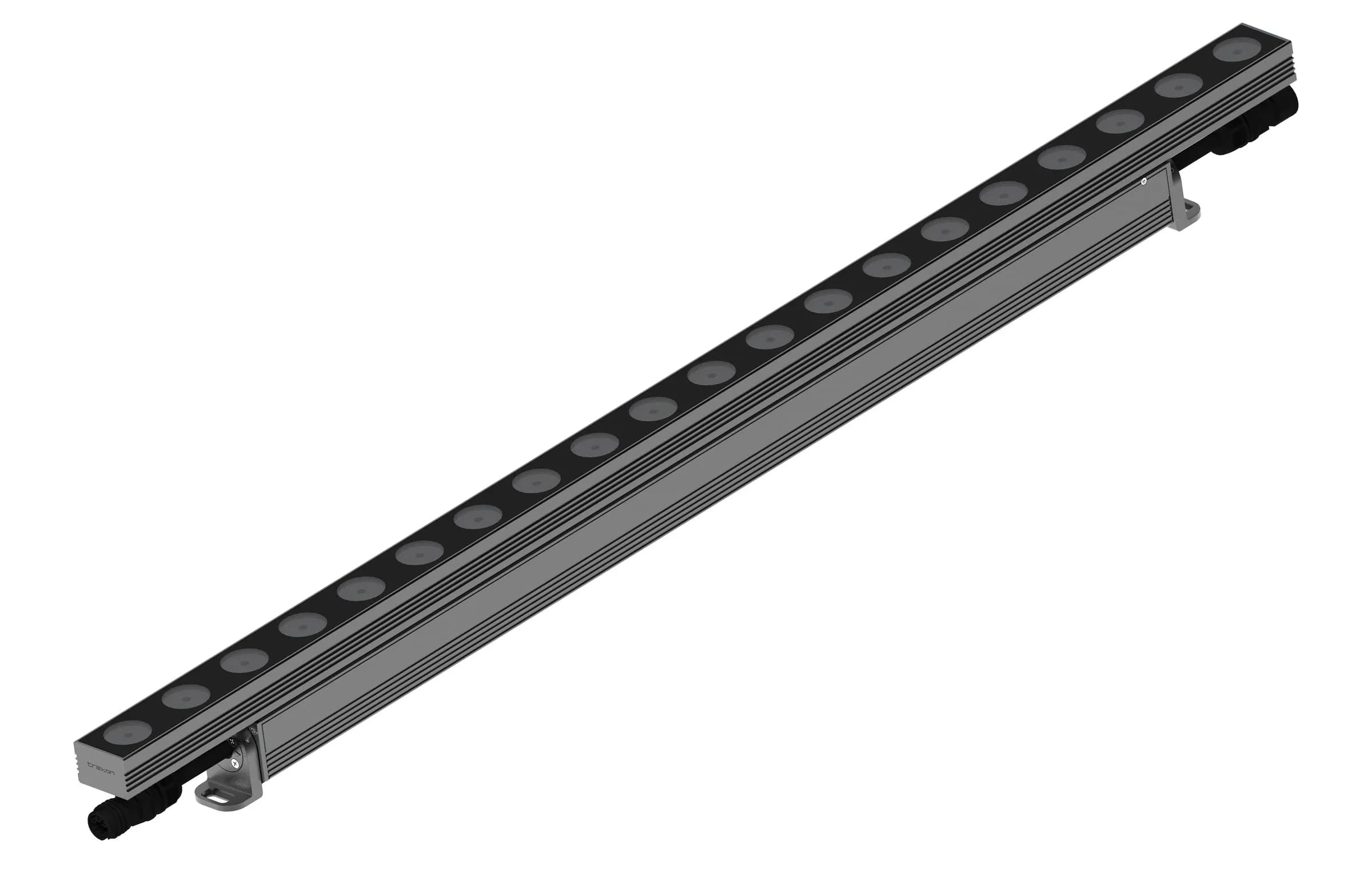

Traxon e:cue Linear Plus

The next generation of Linear excellence available in discrete single colour LED, 4 in1 Quad and High Output (HO) with mixed at source LED clusters.

Manufacturer: Traxon e:cue
Luminaire type: Outdoor luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Power Output options per 300mm 4W, 8W, 12W, 15W
Individual discrete LEDs per colour
Custom Configurable Power Output 1-15W per 300mm
DMX/RDM and 0-10V Control options
Dynamic Boost
Active temperature monitoring
300mm / 1ft Pixel Pitch, (configure in RDM)
Plug 'n' play, daisy chain topology
220-240V AC 50Hz (CE) / 230-277V AC 60Hz (ETL)

Technical data

Size options: 300mm / 1ft; 600mm / 2ft; 900mm / 3ft; 1200mm / 4ft

Protection and resistance

IP66 Coastal Rated
Operating Temperature -30°C to +50°C / -22°F to +122°F

Certifications

CE, ETL, UKCA
