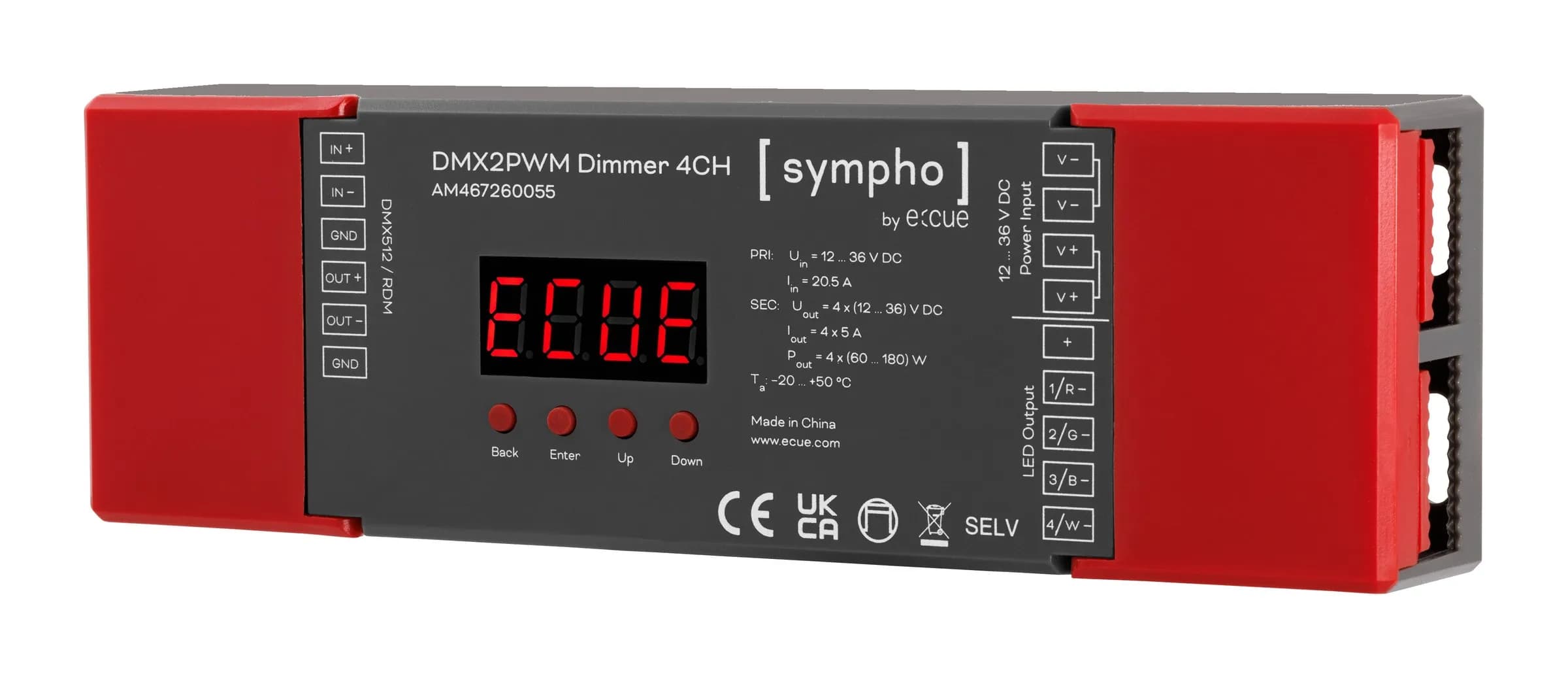

Traxon e:cue DMX2PWM Dimmer 4CH

Traxon e:cue

Traxon e:cue DMX2PWM Dimmer 4CH

4 Channel Constant Voltage Dimmer with DMX The DMX PWM Dimmer delivers smooth, high-precision dimming across four configurable output channels. With selectable 8- or 16-bit resolution, adjustable PWM frequency (0.5–35 kHz), and a customizable gamma curve, it ensures flicker-free operation and accurate color rendering. Ideal for both large and small installations, it features RDM support, standalone mode with Master/Slave functionality, and a user-friendly display for quick setup. A wide voltage range (12–36 V DC), 13 DMX personalities, and built-in surge protection make it a reliable, all-in-one dimming solution.

Manufacturer
Traxon e:cue
Luminaire type
Lighting control
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Key features

  • 4 PWM output channels
  • Adjustable PWM output resolution ratio (8 or 16 bit) for smooth dimming (via RDM or buttons & display)
  • Configurable PWM frequency (0.5 ... 35kHz) for flicker full free dimming (via RDM or buttons & display)
  • Settable output dimming curve gamma value (0.1 ... 9.9) for true color matching (via RDM or buttons & display)
  • Wide input/output voltage range: 12 ... 36 V DC
  • 13 personalities to determine how many DMX channels control the PWM output
  • Integrated standalone mode with Master Slave functionality for smaller projects
  • RDM functionality
  • Rich pre-configured scenes
  • Built-In display with buttons for easy and user friendly configuration and on-site testing
  • Integrated protection against surge on DMX interface

Technical data

  • Dimensions (W x H x D): 170 x 53.4 x 28 mm / 6.69 x 2.09 x 1.1 in
  • Weight: 170 g / 0.37 lb
  • Power input: 12 … 36 V DC (4-pin terminal), Max. input current at “power input”, 20.5 A
  • Operating temperature: -20 … 50 °C / -4 … 122 °F
  • Mounting: with key hole on any stable vertical surface
  • Input: 1 x DMX512 / RDM (3-pin terminal), isolated, surge protection
  • Outputs: 1 x DMX512 / RDM (3-pin terminal) for chaining multiple devices (max. 256), isolated, surge protection, 4 x PWM channel (5-pin terminal) for constant voltage, + connector: identical to input voltage, – connector: low …
  • Output dimming curve gamma: 0.1 … 9 9 ga

Protection and resistance

  • Protection Class: IP20

Certifications

  • CE, UKCA, RoHS, FCC, TÜV Süd, UL Listing pending
