Traxon e:cue Allegro Media Tube Lite

Image 1 of 3

Traxon e:cue

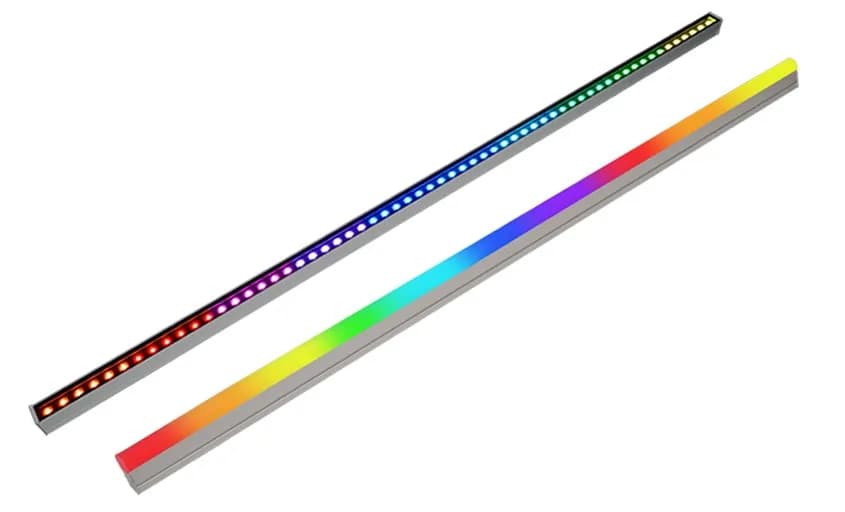

Traxon e:cue Allegro Media Tube Lite

A high brightness, slim media solution designed to integrate into a facade, outline buildings, or trace lines of architectural surfaces. Allegro Media Tube® Lite fits into any wall, façade or media lighting application with tight installation requirements, while the wide beam angle output and 10-pixels-per-meter ensures a smooth illumination experience. Featuring auto addressing and quick lock connectivity, this greatly simplifies the lighting installation for building façades, media applications, bridges and more.

Manufacturer
Traxon e:cue
Luminaire type
Outdoor luminaires
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • 3.9” / 100mm pixel pitch
  • Slim Profile at 1” / 25mm
  • DMX Controlled with auto-addressing
  • Daisy-Chain topology with quick-lock connectors simplifies and speeds up installation
  • Flexible mounting
  • Factory-configurable pixel-controlled segments for flexible installation

Technical data

  • Color options: Dynamic White 2700K – 6500K; Full color RGBW (W=6500K) for vivid color and white content; Full color RGB
  • Length options: Available in 1’ and 4’ lengths with 3 pixels or 12 pixels per tube
  • Lens options: Clear View – 90°; Diffused View – 115°x170°

Protection and resistance

  • IP66 and suitable for Coastal Environments
  • IK09 (Diffused View)
  • ANSI 3G Vibration Rated for bridges

Certifications

  • CE, FCC
