3F Filippi X8 Rail

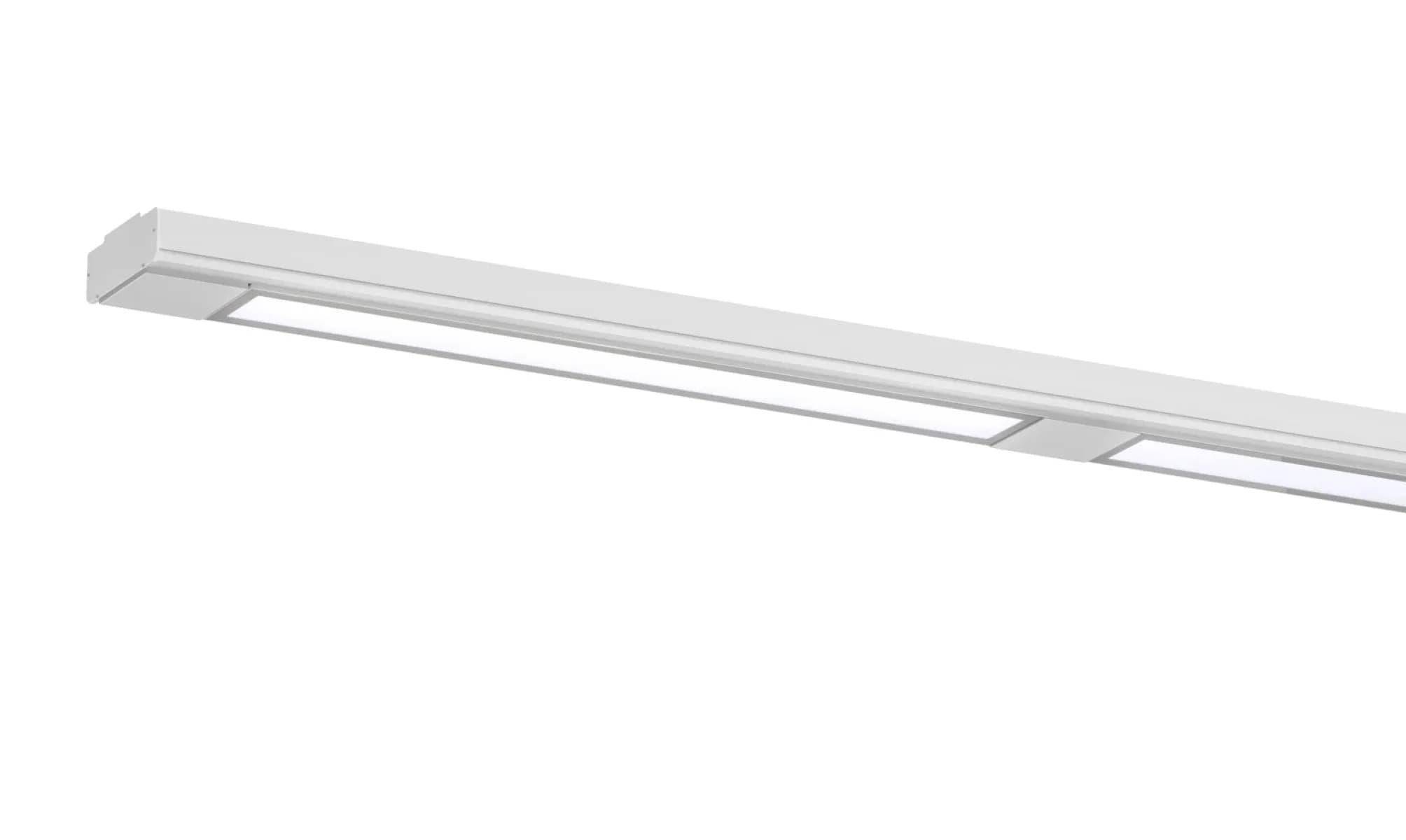

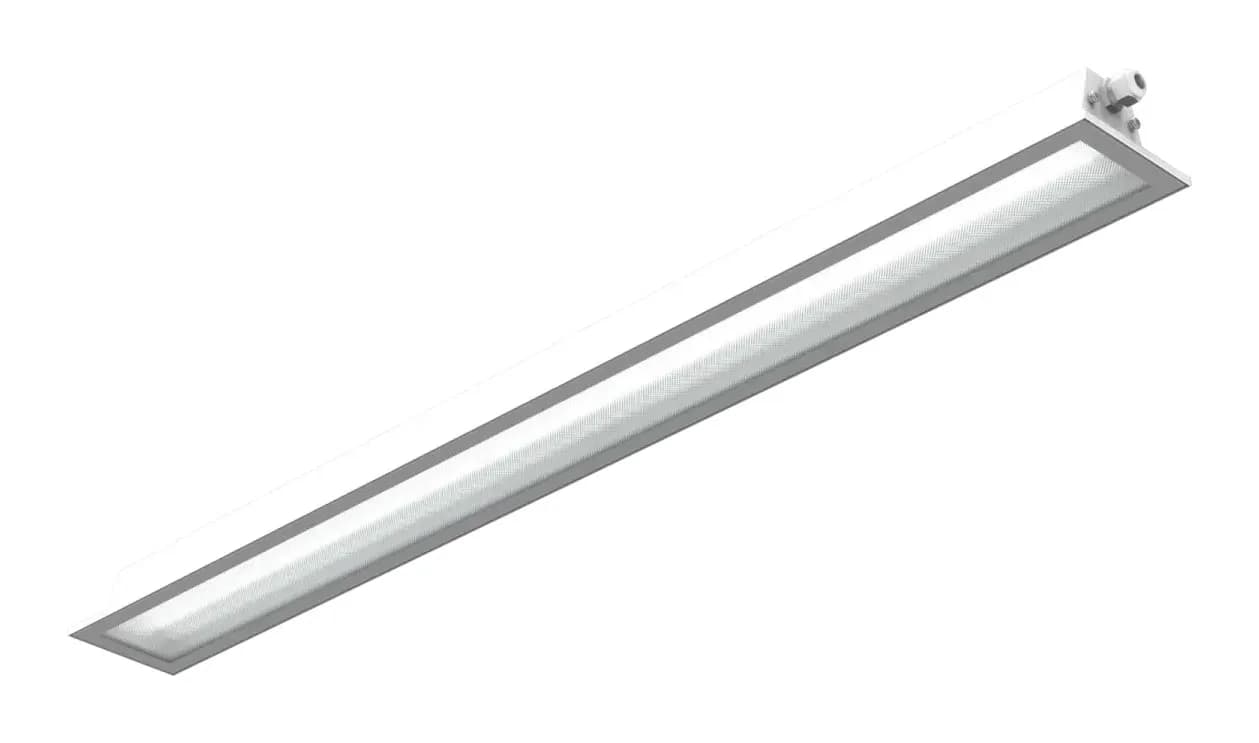

The 3F X8 Rail is a specialised lighting solution for railway infrastructure such as shelters, underpasses and open platforms, designed in accordance with current industry regulations. A linear recessed and surface-mounted product designed specifically for railway applications. High efficiency, robustness and safety, can be integrated into the 3F1 and 3F2 linear systems.

Manufacturer: 3F Filippi
Luminaire type: Industrial luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Certified technical compliance: 3F X8 Rail fully meets the environmental and technical suitability requirements for public and railway infrastructure, ensuring full compliance with the following decrees and industry specifications:
RFI (Italian Railway Network) Specifications: RFI DTC STS ENE SP IFS LF 163 A: for the lighting of railway platforms, shelters and underpasses.
RFI DST MA IFS 001 A: List of qualified luminaires.: 3F X8 Rail also qualifies for incentives under the Conto Termico 3.0 scheme (Ministerial Decree of 7 August 2025).
For the 3F X8 Rail, the only limit is space.: The efficiency of the 3F X8 Rail meets maximum design flexibility.
Ready for the future of railway infrastructure: The 3F X8 Rail incorporates a state-of-the-art cabling system that complies with the Abaco RFI and is based on the DALI-2 Data protocol, designed to support the intelligent management of railway systems.
Safe Flicker: Mode activated!: Thanks to Safe Flicker technology, with guaranteed parameters of PstLM ≤ 1 and SVM ≤ 0.4, the 3F X8 Rail ensures stable, flicker-free light output, helping to improve visual comfort and the quality of perception in railway environments.
Maximum protection and visual comfort: The 3F X8 Rail system stands out for its 4 mm VS-patterned glass screen, a non-combustible , toughened solution that is ideal for public infrastructure.
Safe Flicker (flicker-free light)

Applications

Infrastructure

Technical data

Power: 33–49 W
Luminous flux: 3675–5311 lm
Colour temperature: 4000K
CRI >80
Wiring: DALI
Dimensions (mm): 1200x130x80 … 1500x130x80
SELV driver

Protection and resistance

IP66
IK06
Glow-wire test 960 °C

Certifications

CE, ENEC
