3F Filippi Beta 235

Image 1 of 2

3F Filippi

3F Filippi Beta 235

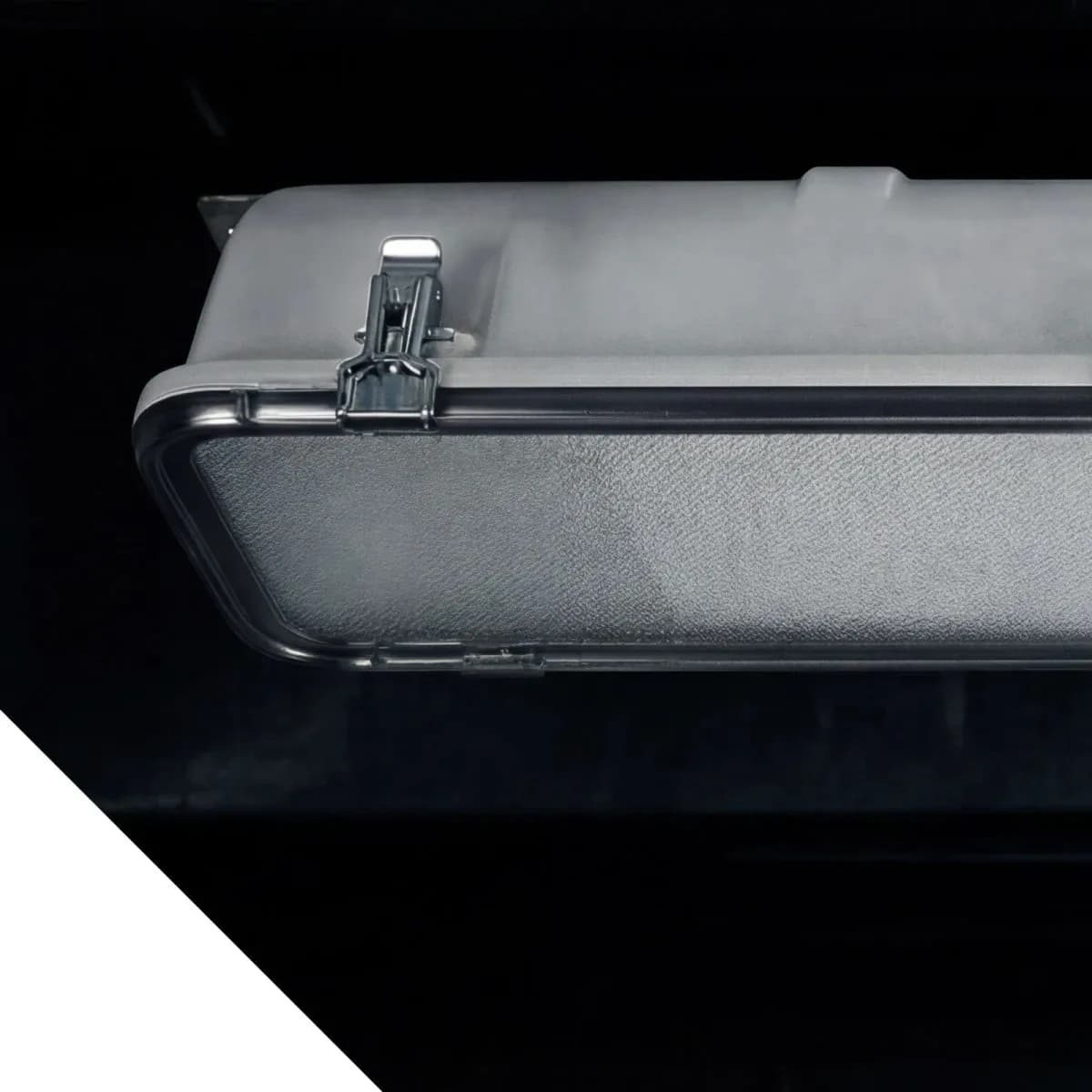

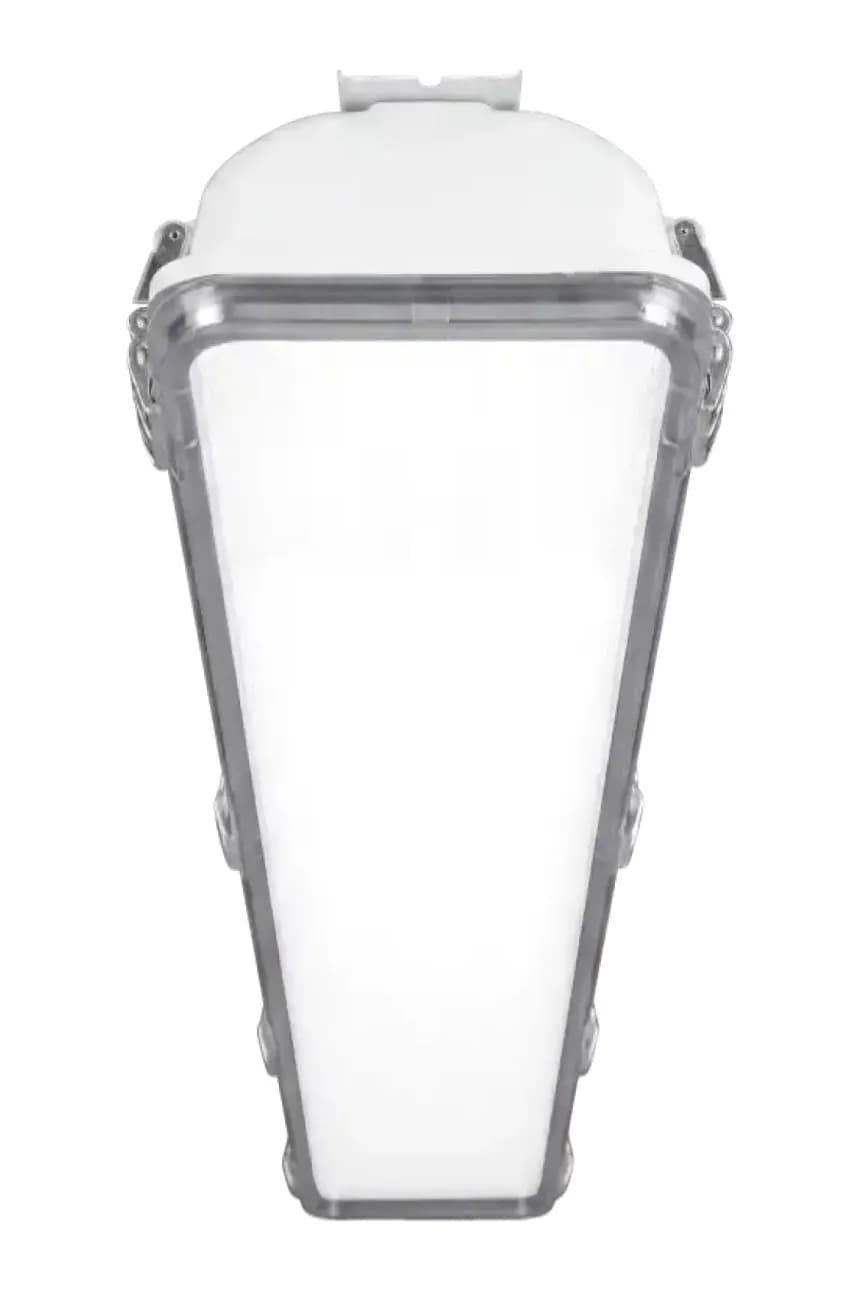

A robust, powerful, lightweight body that meets the requirements of increased protection levels. Steel body and optical system consisting of a diffuser screen and lenticular optics. Robust and versatile industrial product with multiple mechanical and lighting combinations. Robust steel or stainless steel housing. One-piece moulded and painted steel body. Polycarbonate (PC), moulded glass (VS) and clear glass (VT) screens. Methacrylate (PMMA) lenses for multiple light distributions.

Manufacturer
3F Filippi
Luminaire type
Industrial luminaires

from 461 €

372 € + VAT

VAT included. We'll put together the exact price for the version you choose in your quote.

Message · 3F Filippi

Contact us

On the manufacturer site

Full technical data, dimensioned drawings and files (IES, BIM) are on the manufacturer’s page – always the latest version.

Lighting a whole project? Our lighting designer helps choose and place the luminaires so the whole space works. Lighting design

Features

  • Robustness first: Steel or stainless steel body to withstand environments where plastic materials are not sufficient.
  • Many light distributions: Specific lenses allow for a multitude of light distributions: Lite, Wide, Medium, Concentrated, Hyperconcentrated and UGR.
  • Triple diffuser screen: Versions with anti-glare moulded glass (VS), transparent glass (VT) and polycarbonate (PC) screens.
  • Quick connection: Latest generation connector, designed for super-fast installation to reduce business downtime costs.
  • Safe Flicker (flicker-free light)

Applications

  • Industry
  • Infrastructure
  • Sport
  • Offices

Technical data

  • Power: 27.5–112 W
  • Luminous flux: 3645–18416 lm
  • Colour temperature: 4000K
  • CRI >80
  • Wiring: ON-OFF / DALI
  • Dimensions (mm): 655x235x110 … 1565x80x80

Protection and resistance

  • IP65 / IP66
  • IK09
  • Glow-wire test 850 °C
  • Glow-wire test 960 °C

Certifications

  • CE, ENEC, HACCP
