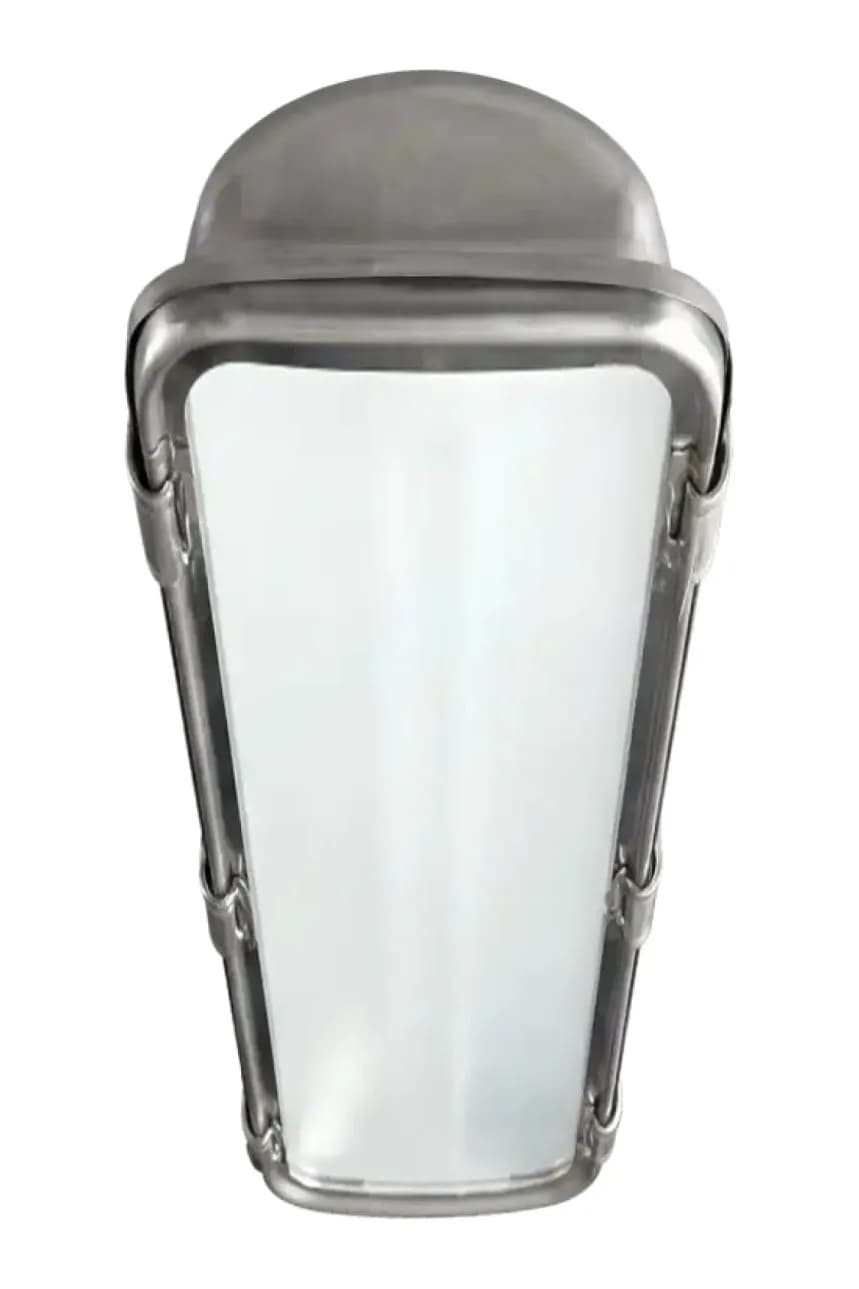

3F Filippi Beta A3F Fosse

3F Filippi

3F Filippi Beta A3F Fosse

Adjustable product designed specifically for inspecting trains in railway pits. Can be rotated upwards to adjust the light beam. Stainless steel body.

Manufacturer
3F Filippi
Luminaire type
Industrial luminaires
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Maximum Durability in AISI 304 Stainless Steel: Designed to withstand the most harsh outdoor conditions, the luminaire’s body is die-cast from a single piece of exceptionally robust AISI 304 stainless steel.
  • IP65 protection rating and IK09 mechanical impact resistance: The luminaire guarantees complete dust-tightness and advanced protection against water jets from all directions, making it ideal for withstanding the rigorous washing and maintenance operations carried out on trains.
  • Asymmetrical and Adjustable Lighting for Inspection Pits: The luminaire is ideal for the professional lighting of inspection pits, allowing the operator to adjust the light beam according to work requirements.
  • Visual comfort and photobiological safety: The protective screen is made of non-glare, non-combustible moulded glass, with a highly resistant thickness of 4 mm.
  • Suitability for centralised emergency lighting: It is fully compliant with standard EN 60598-2-22 for direct power supply from a centralised emergency power supply system (CPSS), maintaining 100% of its performance even when operating on direct current (DC).
  • Safe Flicker (flicker-free light)

Applications

  • Infrastructure

Technical data

  • Power: 14 W
  • Luminous flux: 1501 lm
  • Colour temperature: 4000K
  • CRI >80
  • Wiring: ON-OFF
  • Emergency versions: EP
  • Dimensions (mm): 655x235x110
  • Insulation class II
  • SELV driver

Protection and resistance

  • IP65
  • IK09
  • Glow-wire test 960 °C

Certifications

  • CE
