Duralamp HB5

Image 1 of 2

Duralamp

Duralamp HB5

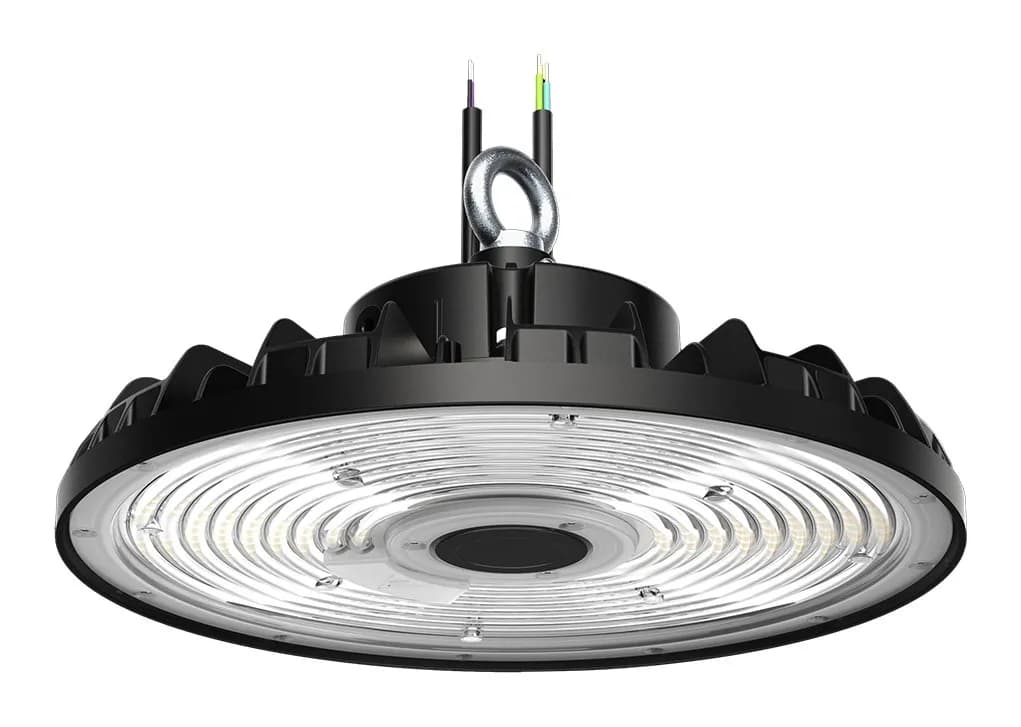

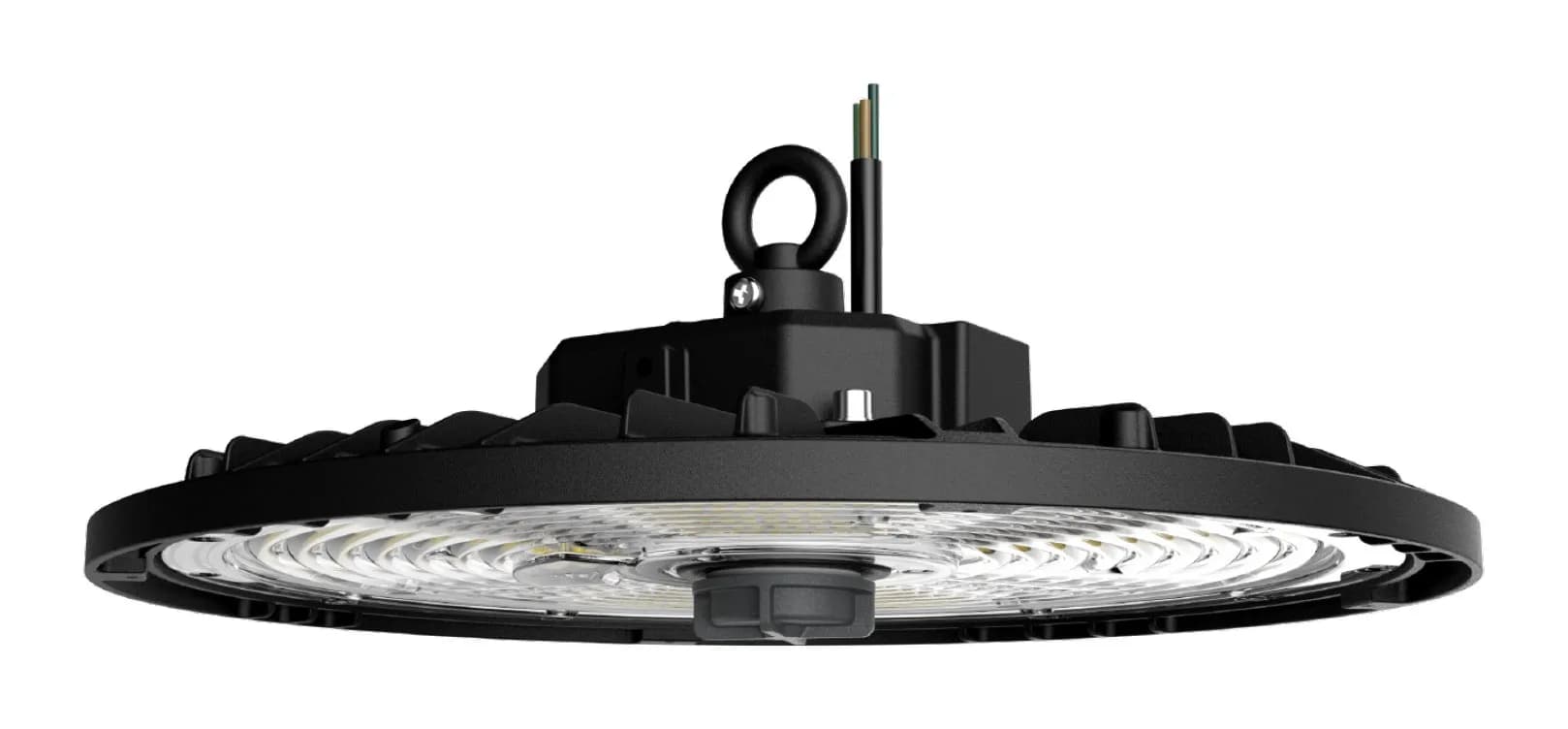

Suspended luminaire for installation in large commercial and industrial spaces; uses highly efficient SMD technology. Available in various sizes and power ratings. DALI2 version, 29cm diameter. Polycarbonate reflector available for 32cm diameter; aluminum reflector available for 32cm and 36cm diameters, see accessory code.

Manufacturer
Duralamp
Luminaire type
Industrial luminaires

from 133 €

107 € + VAT

VAT included. We'll put together the exact price for the version you choose in your quote.

Message · Duralamp

Contact us

On the manufacturer site

Full technical data, dimensioned drawings and files (IES, BIM) are on the manufacturer’s page – always the latest version.

Lighting a whole project? Our lighting designer helps choose and place the luminaires so the whole space works. Lighting design

Features

  • The optical unit is integrated into the aluminium body for perfect heat dissipation.
  • Equipped with 4kV voltage surge protection.
  • Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection.
  • Equipped with a mounting ring for suspension installation.
  • For surface mounting, order bracket accessory code.
  • Grooved die-cast aluminium for heat dissipation.
  • Suitable for use in dusty and humid environments due to its high IP rating.
  • Optical system consisting of an array of PC lens optimised for SMDs, opening beam 90°.
  • Optional polycarbonate lenses available for diffuse illumination, 120° beam opening.

Technical data

  • Duralamp range: PRO
  • Power: 80–200 W
  • Luminous flux: 13000–32000 lm
  • Colour temperature: 4000K
  • CRI: Ra 80
  • Beam angle: 90°
  • Input voltage: 220-240 Vac
  • Dimmable: DALI 2
  • Connection / base: Wire
  • Lifetime: 100000 h L70B50
  • Operating temperature: -25°C … +35°C
  • Photobiological safety: Risk Group 1
  • Insulation class I
  • Flicker free
  • Full guarantee 5 years (24h/24h)

Protection and resistance

  • IP65
  • IK08
