Duralamp Batten BT3

Image 1 of 2

Duralamp

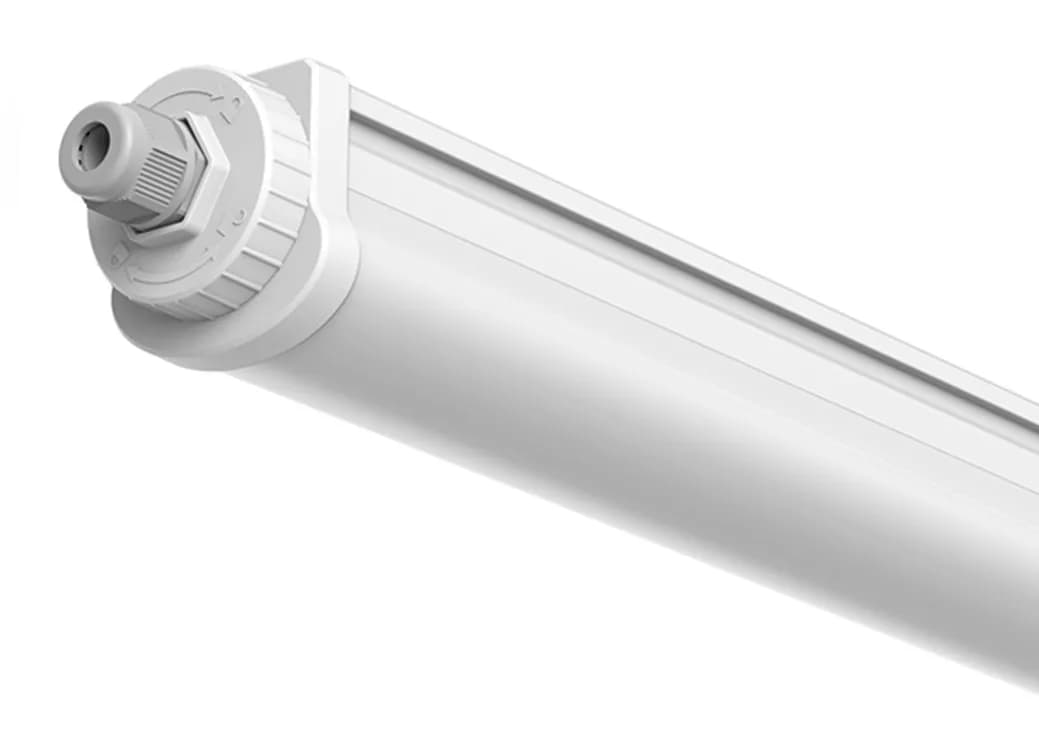

Duralamp Batten BT3

Linear ceiling fixture equipped with high efficiency LED sources. Fitted with a quick spring clamp for connection in series.

Manufacturer
Duralamp
Luminaire type
Industrial luminaires

from 43 €

35 € + VAT

VAT included. We'll put together the exact price for the version you choose in your quote.

Message · Duralamp

Contact us

On the manufacturer site

Full technical data, dimensioned drawings and files (IES, BIM) are on the manufacturer’s page – always the latest version.

Lighting a whole project? Our lighting designer helps choose and place the luminaires so the whole space works. Lighting design

Features

  • Quick opening mechanism for wiring.
  • Easy to connect in series thanks to the quick spring clamp supplied.
  • Can be used in series of up to 22 fixtures for the 18 W model, 11 fixtures for the 34 W model and up to 7 fixtures for the 50 W model.
  • "Snap on" AISI 316 stainless steel brackets for ceiling or suspension installation.
  • Every batten is equipped with brackets.
  • Adjustable suspension cables available as a separate code.
  • Polycarbonate body: opal polycarbonate screen equipped with internal fins for flow recovery and emission optimization.

Applications

  • Supermarkets
  • Car parks
  • Laboratories
  • Warehouses

Technical data

  • Duralamp range: PRO
  • Power: 18–50 W
  • Luminous flux: 2025–6450 lm
  • Colour temperature: 3000K / 4000K / 6000K
  • CRI: Ra >80
  • Beam angle: 120°
  • Input voltage: 220-240 Vac
  • Non-dimmable
  • Connection / base: Screws
  • Lifetime: 50000 h L70B20
  • Operating temperature: -25°C … +35°C
  • Photobiological safety: Risk Group 1
  • Insulation class II
  • Full guarantee 5 years (24h/24h)

Protection and resistance

  • IP65
  • IK08
