Ateljé Lyktan Quad Pixel

Image 1 of 2

Ateljé Lyktan

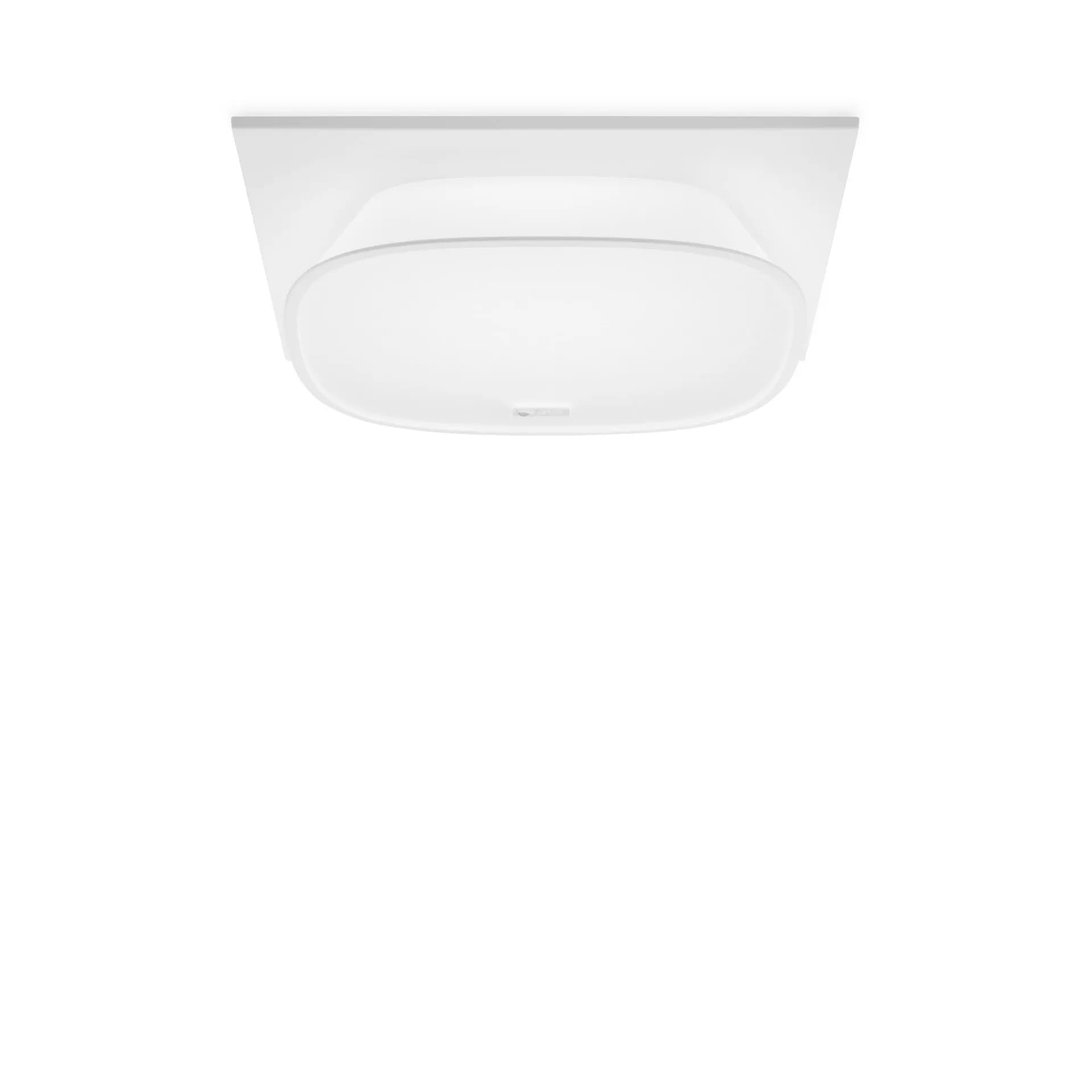

Ateljé Lyktan Quad Pixel

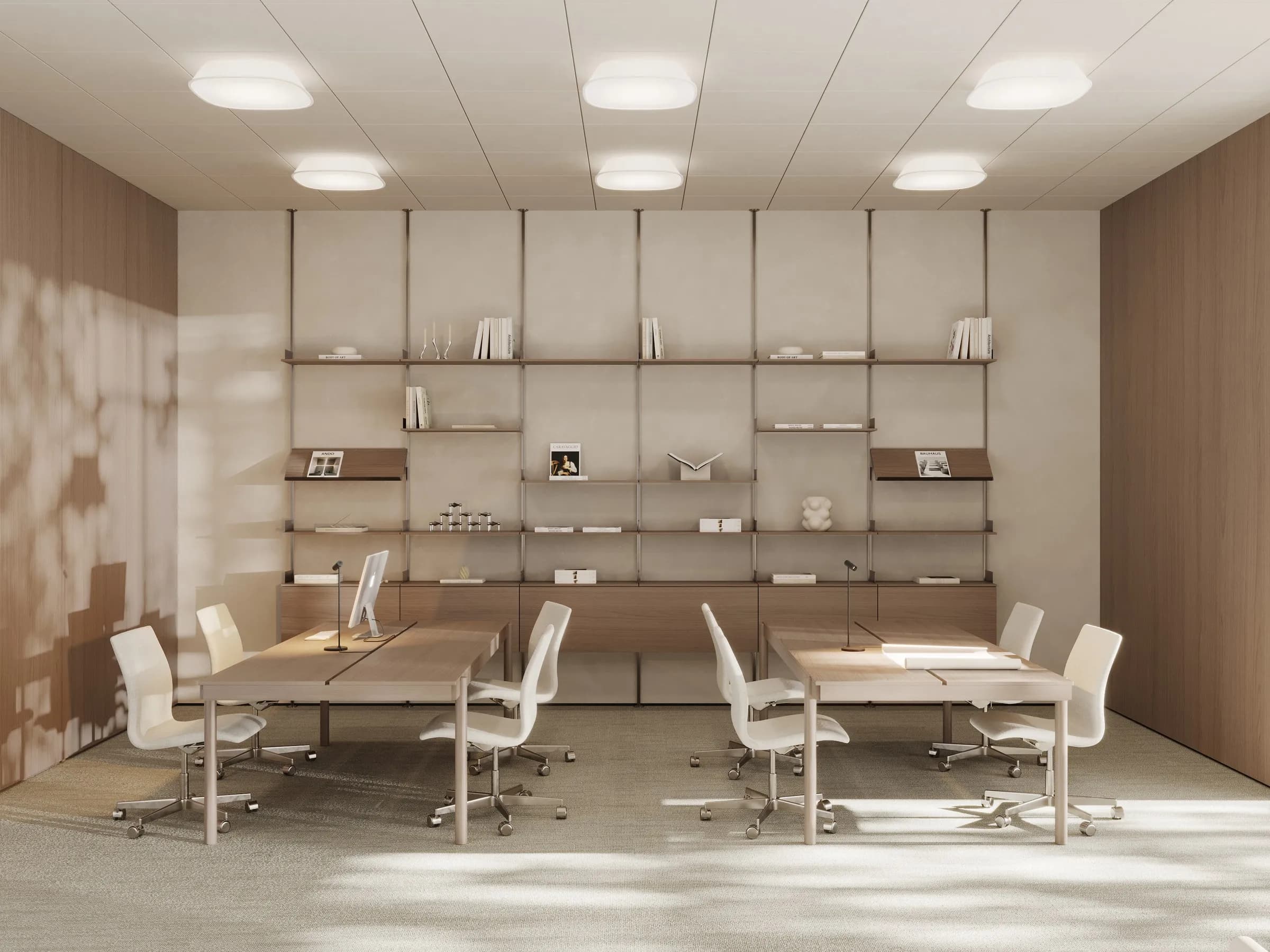

Quad Pixel 530 is designed for a new reality—where visual comfort, contrast reduction, and glare control are non-negotiable. With a carefully balanced light distribution and advanced side-lighting, it enhances the ceiling plane and creates a soft transition between luminaire and surface. The result: a calmer visual environment and improved luminance ratios that meet today’s stricter demands—without the need for pendant fixtures. With a recessed depth above ceiling grid of just 78 mm, CRI90 as standard, and Tunable White as an option for dynamic lighting, Quad Pixel delivers an upgraded lighting experience—for the eyes and for the installer. Easy to fit. Hard to replace.

Manufacturer
Ateljé Lyktan
Luminaire type
Recessed luminaires
On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Luminance control - Quad Pixel 530: To achieve a suitable luminance distribution, luminaires with direct/indirect light distribution are preferred.
  • Simple installation: Quad Pixel fits seamlessly into standard suspended ceilings—just like a LED panel, but with precision optics and premium light quality.
  • Smart lighting: The luminaire is available with the wireless control system Organic Response, where PIR sensors detect occupancy and communicate with nearby luminaires via infrared and radio signals to illuminate the space efficiently based on…

Applications

  • Office & education
  • Healthcare

Technical data

  • SDCM: 3
  • CRI: 90
  • CCT: 3000K / 4000K
  • Optical efficiency: 120-136 lm/W
  • Lifetime LED: L100 100 000h
  • Lifetime driver: 100 000h
  • Material: Integrated base/ceiling plate in partly recycled (30%) injection-moulded ABS/PC.
  • Light source: Including LED light source.
  • Driver: Equipped with LED driver that regulate the light with amplitude modulation creating a flicker-free light.
  • Diffuser: Microprismatic acrylic glass combined with optic film from BrightView.
  • Weight: 3kg
  • Luminous flux: 1500–5000 lm
  • Power: 13–47 W

Protection and resistance

  • IP20
