3F Filippi

3F Filippi Manta

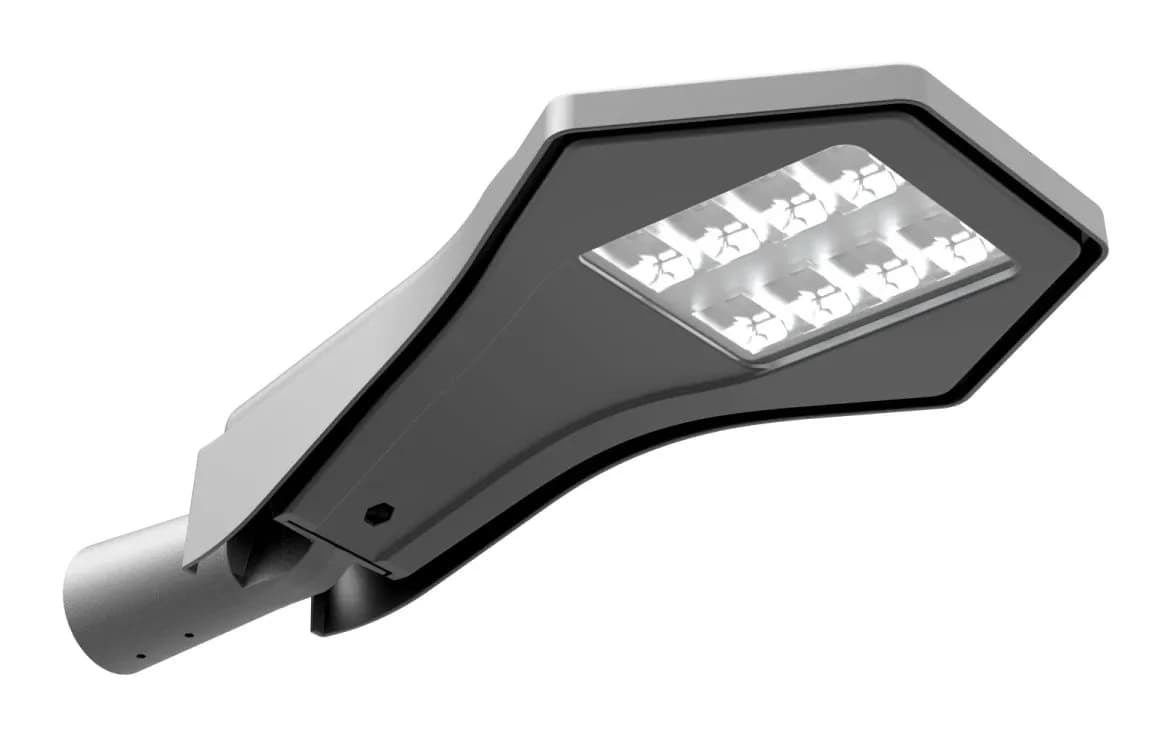

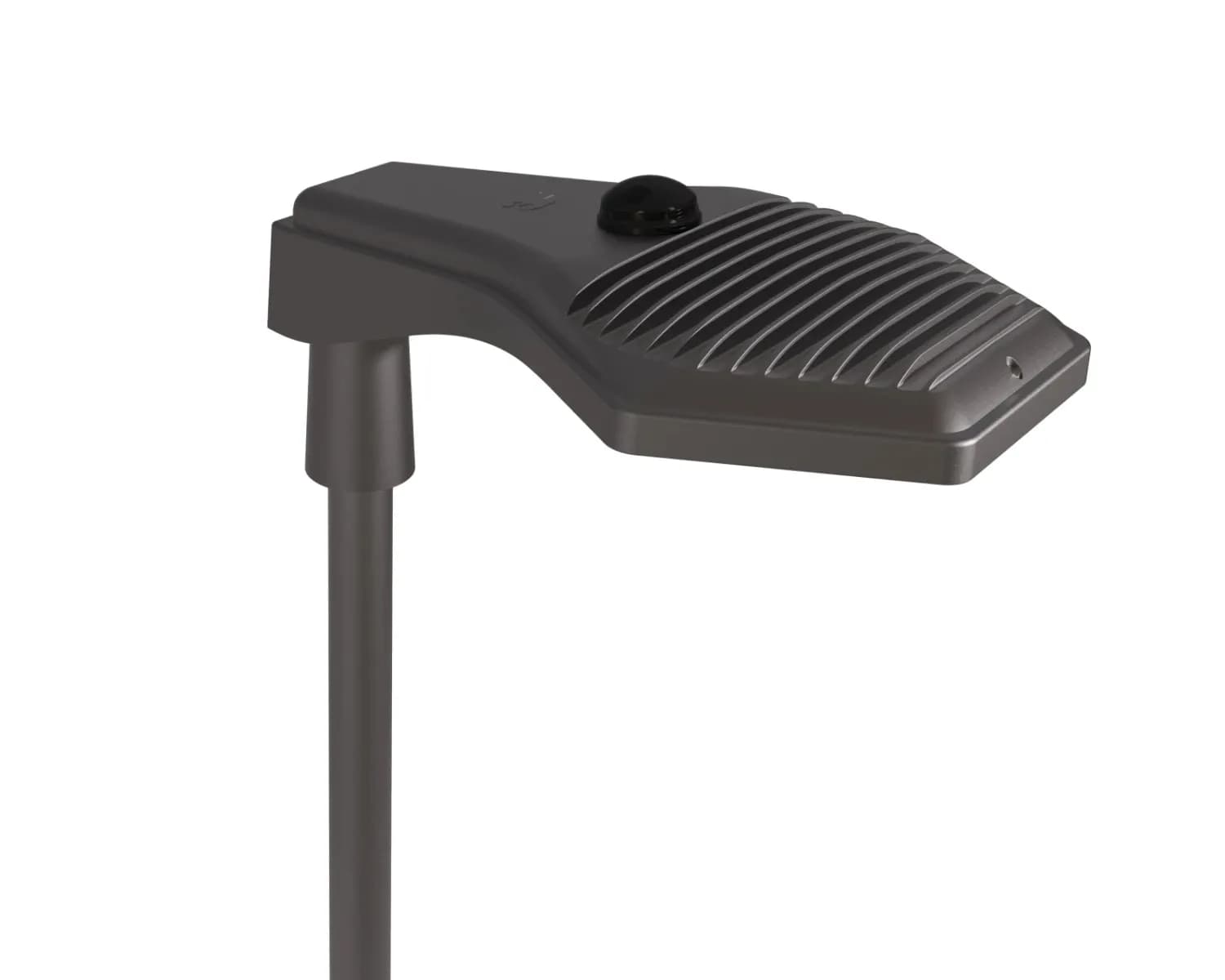

Created to bring the excellence that 3F Filippi has been offering for 75 years in production facilities, retail areas and architectural spaces to the outdoors. Outdoor pole-top luminaire specifically designed for car parks and façades. Aluminium optical system capable of achieving three different light distributions. IoT functionality thanks to integrated sensors and intelligent light management functions based on the time of day. Double-shell body in die-cast aluminium closed with stainless steel screws. Parabolic optics composed of total recovery cells made of semi-specular aluminium with very high reflectivity. Diffuser in 4 mm thick tempered glass. Installation on pole or wall.

Manufacturer: 3F Filippi
Luminaire type: Outdoor luminaires

from 859 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

All-proof optics: A versatile, ad hoc optic made entirely of semi-specular aluminium with titanium and magnesium treatment.
Three light distributions: Wide, Medium and Front distributions, perfectly controlled to ensure the elimination of light pollution.
Virtual midnight: Automated management of light flow based on the time of day, specially designed to be adjustable and to limit energy consumption.
Protection and prevention: SPD technology that guarantees adequate protection against electrical surges and an NTC system to prevent operating temperatures from exceeding the specified limits.
Safe Flicker (flicker-free light)

Applications

Retail
Industry
Infrastructure
Outdoor
Sport

Technical data

Power: 34.5–195 W
Luminous flux: 4092–22451 lm
Colour temperature: 3000K
CRI >70 / >80
Wiring: ON-OFF
Dimensions (mm): 660x440x166
Insulation class II

Protection and resistance

IP66
IK08
Glow-wire test 960 °C

Certifications

CE, ENEC
