3F Filippi Linux

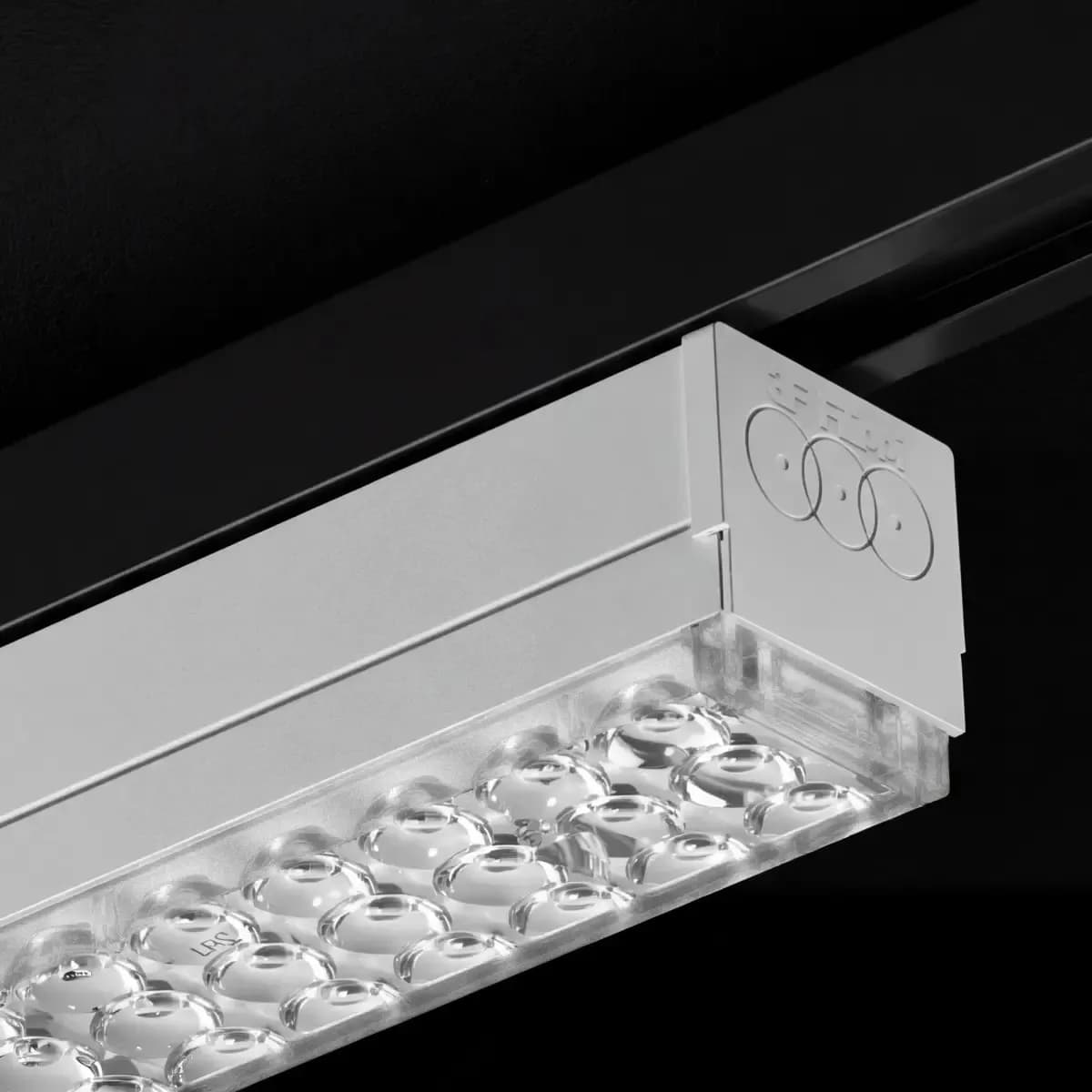

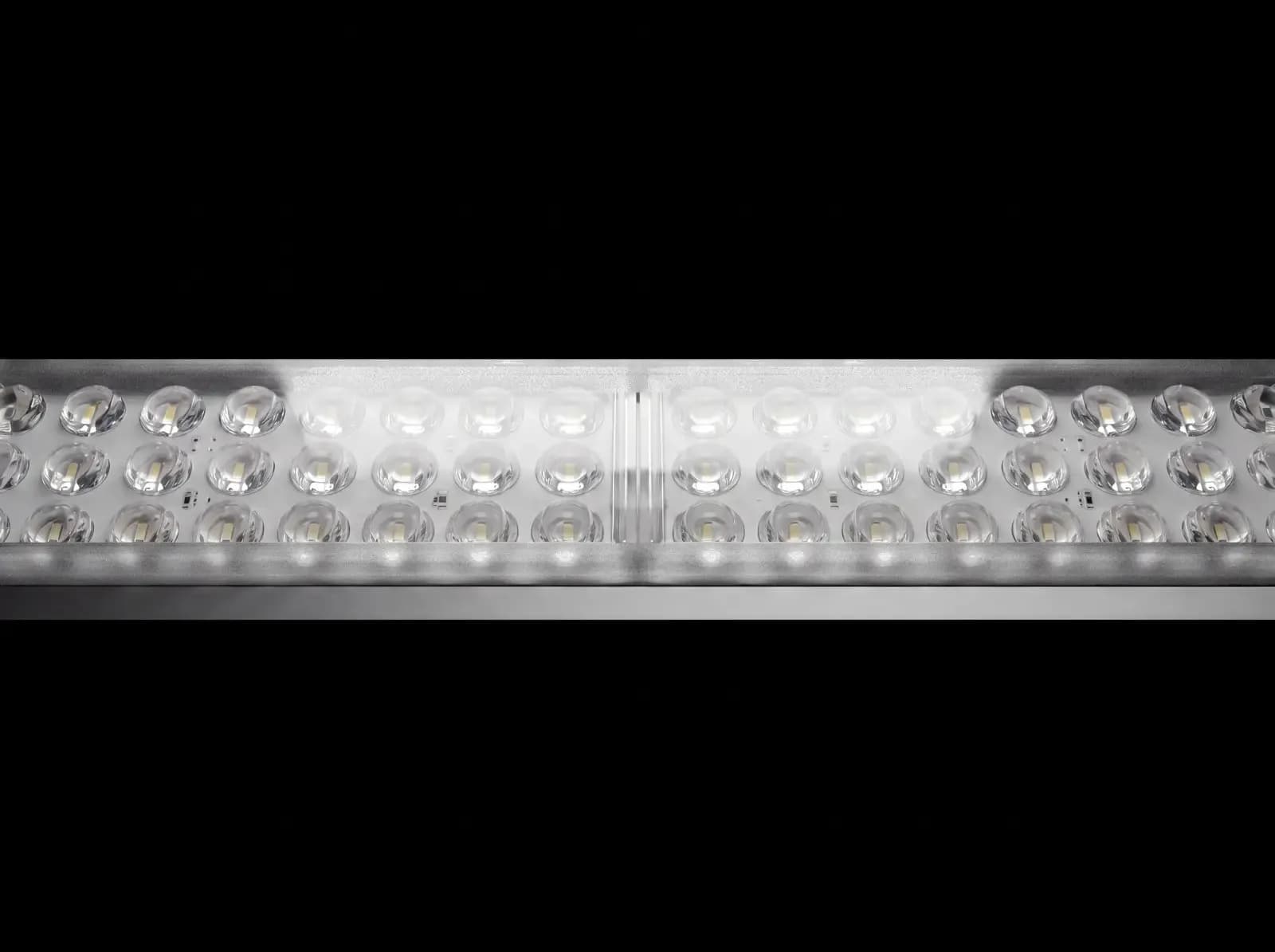

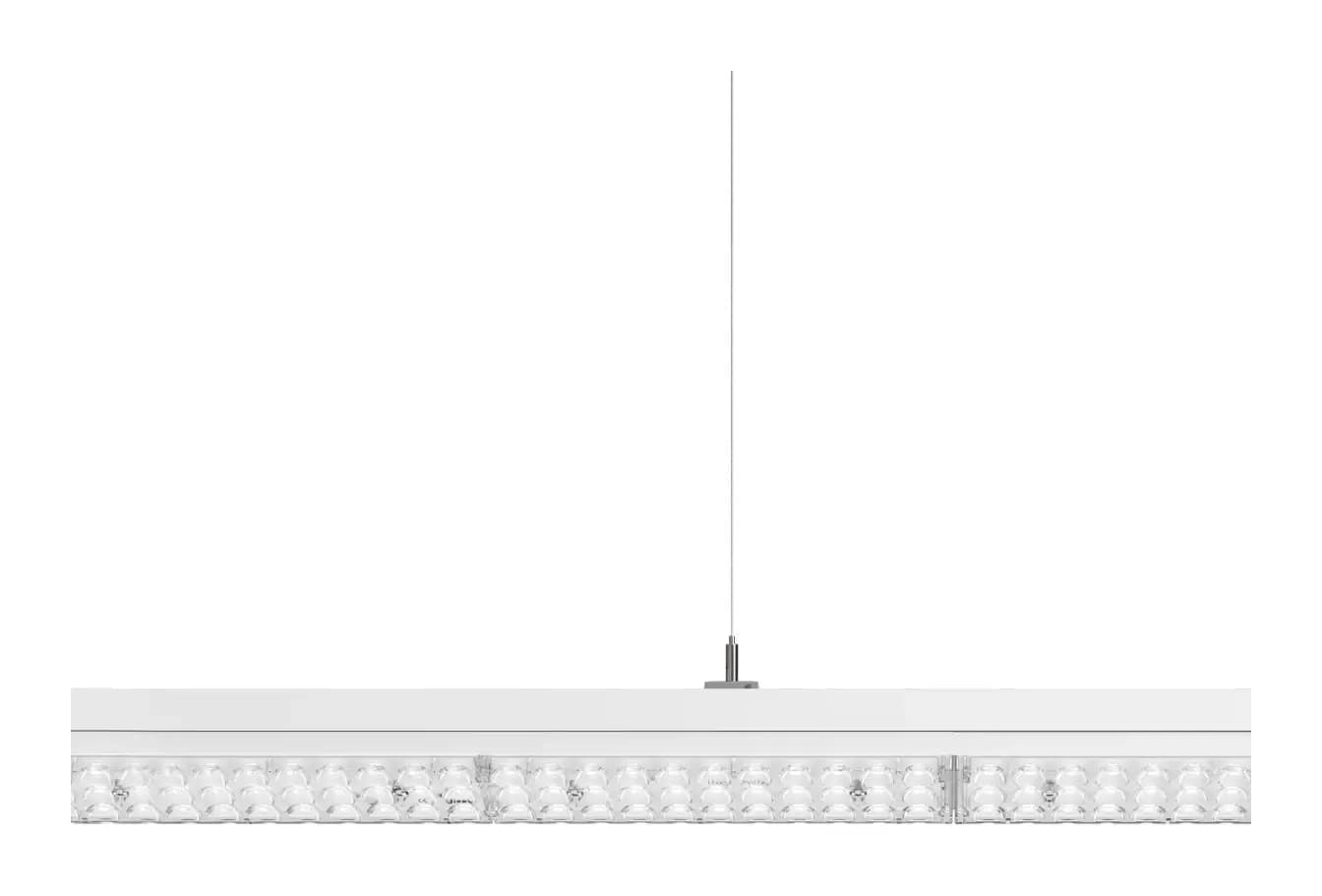

3F Linux is more than a continuous line system: it was designed to compose channels in a simple and efficient way and significantly reduce the installation and maintenance costs of the system. Simple and efficient linear continuous row system. Hot-dip galvanised steel body. Lenticular optics with multiple light distributions and polycarbonate (PC) diffuser screens. FastWiring connection system for quick connection between modules. Ceiling, suspension and rail installation. This fixture makes it possible to create light channels with IP40 protection. Modular and flexible structural system with small dimensions to create continuous channels and compositions, transport electrical lines and fixing of various types of products. Quick and easy ceiling or pendant installation.

Manufacturer: 3F Filippi
Luminaire type: Track systems and track luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Naturally complete: 3F Linux is more than a continuous line system: it was designed to compose channels in a simple and efficient way and significantly reduce the installation and maintenance costs of the system.
Maximum design flexibility: 3F Linux is fitted with high-efficiency LED sources and features a compact body, modular components and accessories which give unrivalled freedom in terms of planning the installations.
One system. Many configurations: 3F Linux is an extremely versatile system, designed to adapt to different application contexts whilst maintaining the same installation platform.
Simplicity and immediacy: 3F Linux has been designed to simplify installation and optimise the costs of setting up the system.
Safe Flicker (flicker-free light)

Applications

Education
Retail
Healthcare
Industry
Infrastructure
Offices
Outdoor
Sport

Technical data

Power: 34–84 W
Luminous flux: 4393–14331 lm
Colour temperature: 4000K
CRI >80 / >90
Wiring: ON-OFF / DALI
Dimensions (mm): 1778x62x32 … 3556x62x38
SELV driver

Protection and resistance

IP20 / IP40
IK06
Glow-wire test 650 °C
Glow-wire test 850 °C
Glow-wire test 960 °C

Certifications

CE, ENEC, HACCP
