3F Filippi Dìagon recessed luminaire

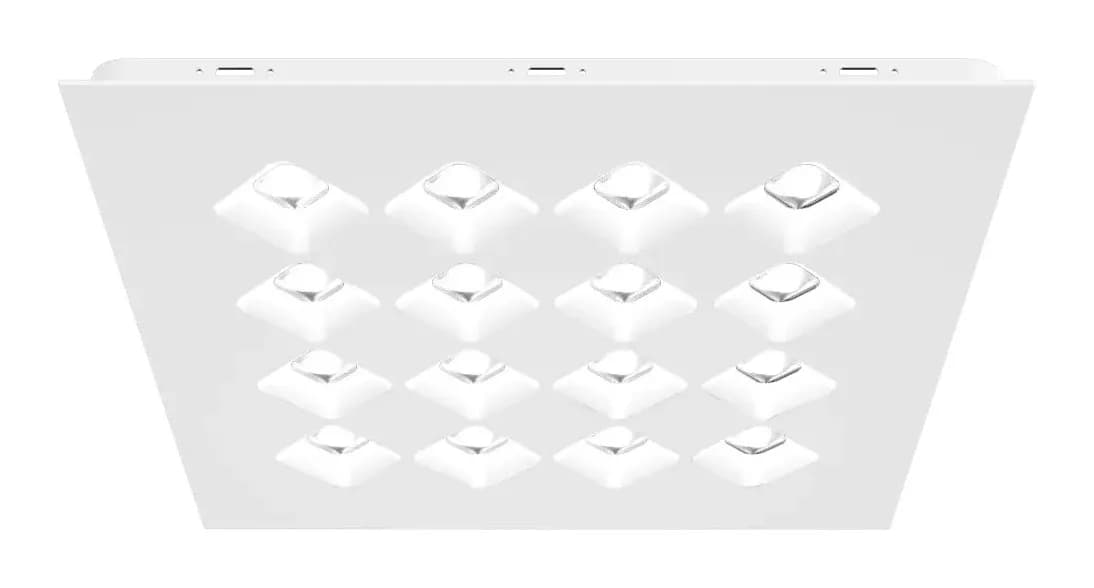

Light to improve working environments, shops and passage ways: providing this is 3F Dìagon, a square shaped recessed fixture whose 16 recessed cells are equipped with state-of-the-art LED sources. Square and compact product, just 30 mm thick with a hot-dip galvanised steel body. 16 light cells oriented at 45° in anti-glare methacrylate (PMMA) with differentiated, engraved and prismatic surface, maximum light uniformity on the work surface. Recessed installation. Hot-dip galvanised steel body, finished in white polyester paint. White polycarbonate (PC) screen, composed of diagonally arranged cells. Lay‑in installation.

Manufacturer: 3F Filippi
Luminaire type: Recessed luminaires

from 370 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Maximum architectural integration: The fixture is only 30 millimetres high which allows installation in very low ceiling cavities (min.
Ultra-compact design: At just 30 mm high, the 3F Dìagon redefines the concepts of integration and design flexibility.
More light, fewer lights: 3F Dìagon introduces an innovative approach to lighting professional spaces, combining high luminous uniformity with design efficiency.
Maximum installation flexibility: Designed to adapt to a variety of architectural contexts, 3F Dìagon offers a high degree of installation flexibility thanks to its compact dimensions and spring-loaded fixing system.
Configurations for each project: 3F Dìagon has been developed to offer maximum design freedom, thanks to a wide range of configurations that allow the system to be adapted to specific functional and aesthetic requirements.
Safe Flicker (flicker-free light)
Tunable White versions

Applications

Education
Retail
Healthcare
Infrastructure
Offices
Sport

Technical data

Power: 17–41 W
Luminous flux: 2694–5796 lm
Colour temperature: 2700K / 3000K / 4000K
CRI >80 / >90
Wiring: ON-OFF / DALI
Emergency versions: EP
Dimensions (mm): 596x596x30 … 621x621x30

Protection and resistance

IP43
IK06
Glow-wire test 650 °C

Certifications

CE, ENEC

Dìagon in other categories

Dìagon ceiling luminaire
