Neri Light 103

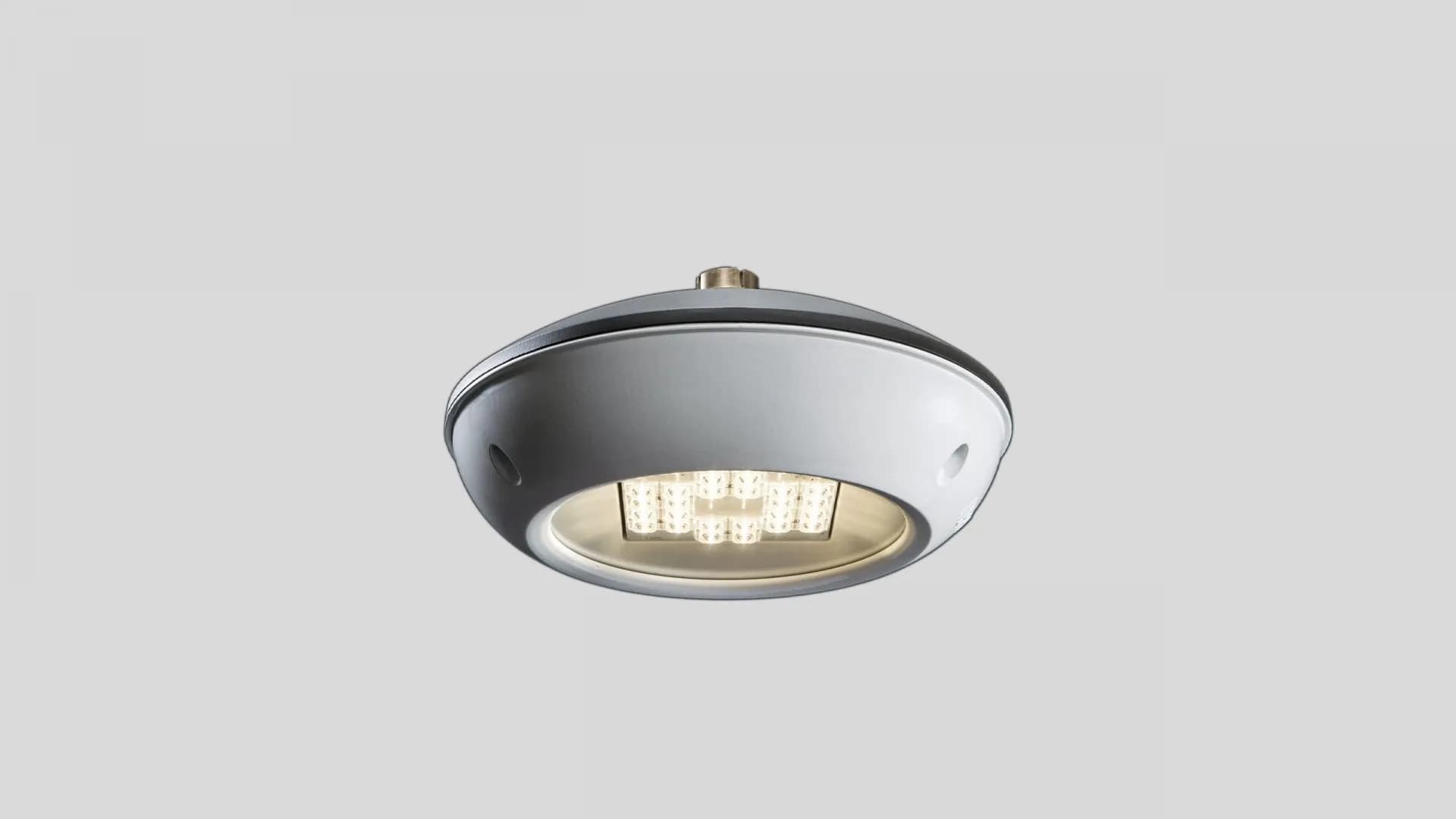

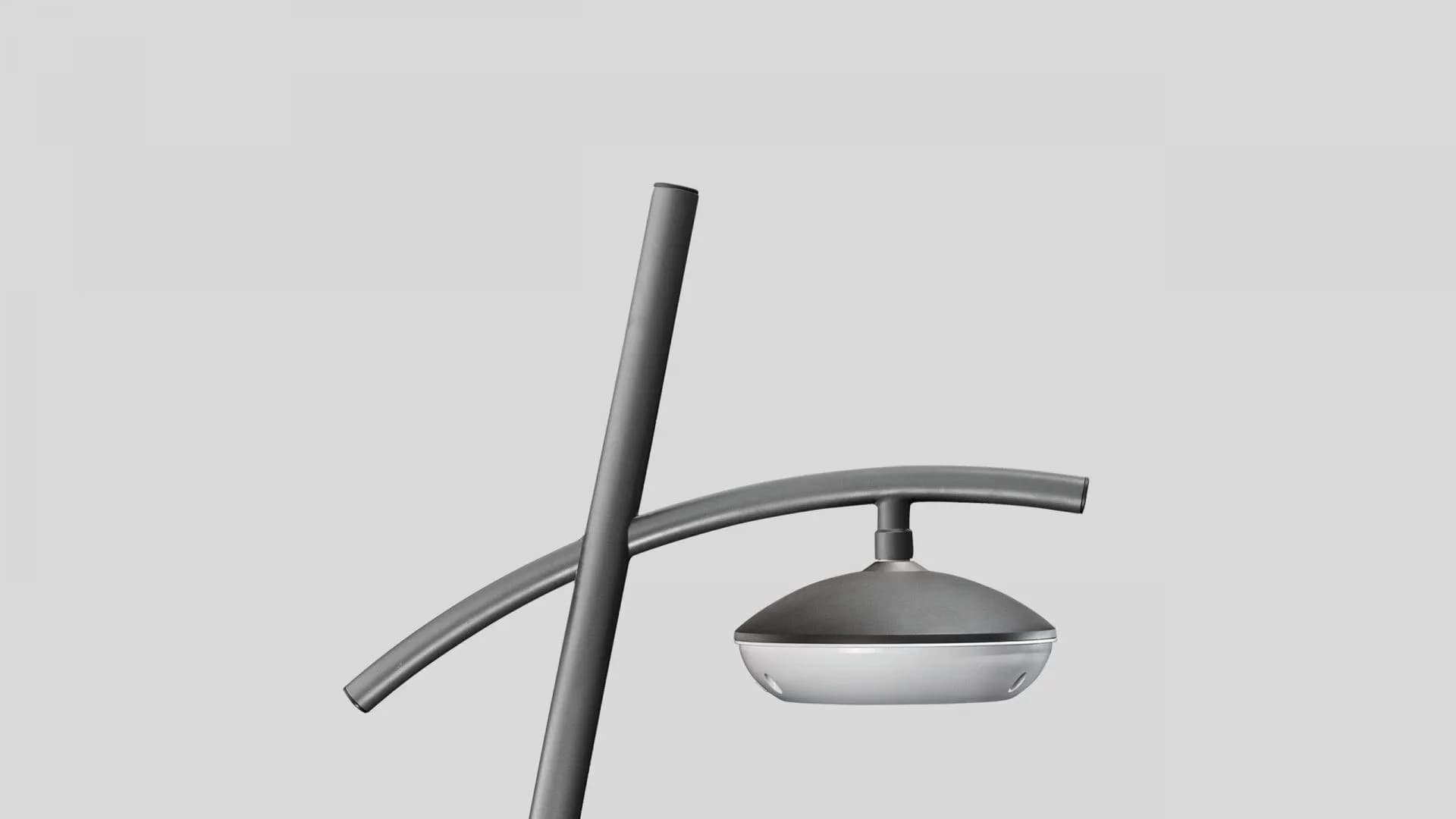

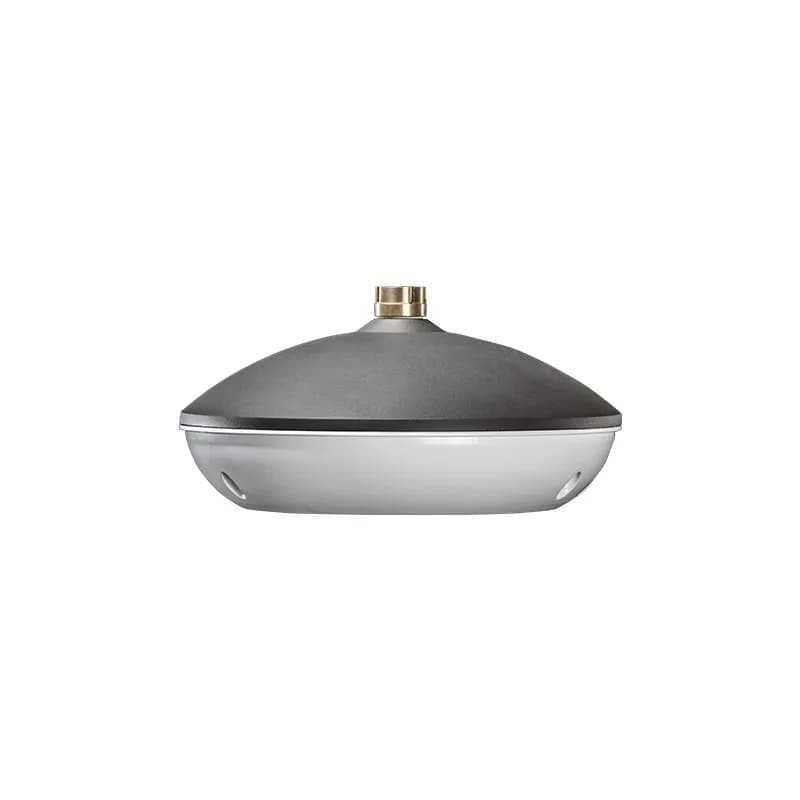

Designed to be versatile, thanks to its G 3/4" GAS fitting and the range of available optics. Light 103 can be used to illuminate everything from roads to pedestrian pathways. Made of die-cast aluminum and equipped with extra-clear transparent flat glass with silk-screened parts, it has an IP66 and IK09 protection rating. The upper part is Neri Grey, while the lower part is RAL 9016 Pure White.

Manufacturer: Neri
Luminaire type: Outdoor luminaires

from 885 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Design: Neri
Versions: Light 103
Light 103 is equipped with highly efficient LED Nichia NVSW219 positioned on a ceramic base to provide high th longer life. The optical system is composed of overlapping PMMA lenses with high performance and constant lioptimises the quality of light, even when the performance of the system changes.

Applications

Roads
Pedestrian pathways

Technical data

Colour temperature: 3000 K / 4000 K
CRI: Ra70
Luminous flux: 1500–7500 lm
Light distributions: Type II - A, Type IV - Forward throw, Type I - Center road, Type V - Rotosymmetric
Screen: Transparent
Driver / control options: 1-10V+CLO, Ampdim+CLO, DALI+CLO, NVL6H+CLO
Power supply: 220V-240V
Insulation: Class II

Protection and resistance

IP66
IK09
