Products/ OUTDOOR LUMINAIRES/ PERISKOP ROUND

Linea Light Periskop Round

Image 1 of 3

Linea Light

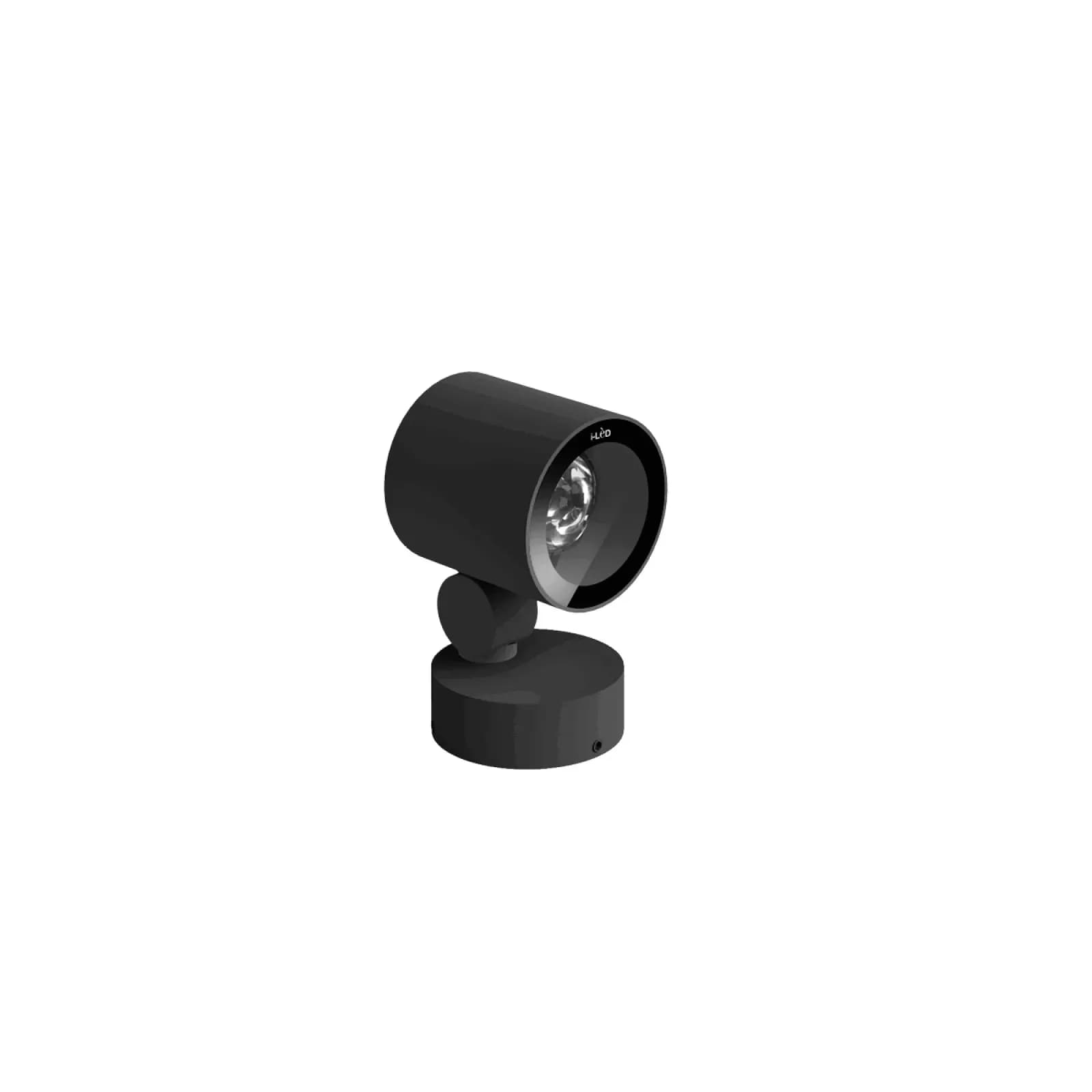

Linea Light Periskop Round

Periskop Round is designed to adapt naturally to any architectural or landscape context. Light reaches exactly where it is needed, even in the most complex configurations. With scalable power options, an extensive optical range, and a modular system, Periskop Round projector lights address every design scenario with coherence , precision , and flexibility. The Periskop Round joint is engineered to ensure maximum freedom in orienting both the head and the optical assembly of these projector lights. Horizontal rotation and wide vertical tilt allow the light beam to be directed in any direction, even in the most extreme positions.

Manufacturer
Linea Light
Luminaire type
Outdoor luminaires

from 403 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Periskop_R: Round base
  • Periskop_RBS: Base + Extension
  • Periskop_RM: Modular base
  • Outdoor installation
  • Ceiling, wall or groung mounting
  • Driver included
  • Power supply cable included
  • Single emission luminaire

Applications

  • Outdoor – Projectors
  • Outdoor – Bollards and poles

Technical data

  • IP66
  • IK07
  • CRI 80
  • CCT: 2200 K / 2700 K / 3000 K / 4000 K / RGB-W 3000 K / RGB-W 4000 K
  • Power: 1.5–48 W
  • Optics: Elliptic Flood (20°÷29°) X (41°÷60°), Elliptic M. Flood (30°÷39°) X (41°÷60°), Elliptic M. Flood (30°÷39°) X <20°, Elliptic M. Flood (40°÷49°) X (20°÷40°), Elliptic M. W. Flood (40°÷49°) X (20°÷40°), Elliptic M. W. Flood (40°÷49°) X <20°, Elliptic Spot (10°÷19°) X (20°÷40°), Flood_1
  • Finishes: Text white RAL 9003, Text black RAL 9005, Dark brown, Text brilliant grey RAL 9006, Text mattefield green R6031
  • Light source (C01147BBAHS): 1 x powerLED 2 W DC - 2.5 W AC
  • Delivered luminous flux (C01147BBAHS): 109 lm

Certifications

  • RoHS, CE, EAC
