Linea Light Footpad

Image 1 of 3

Linea Light

Linea Light Footpad

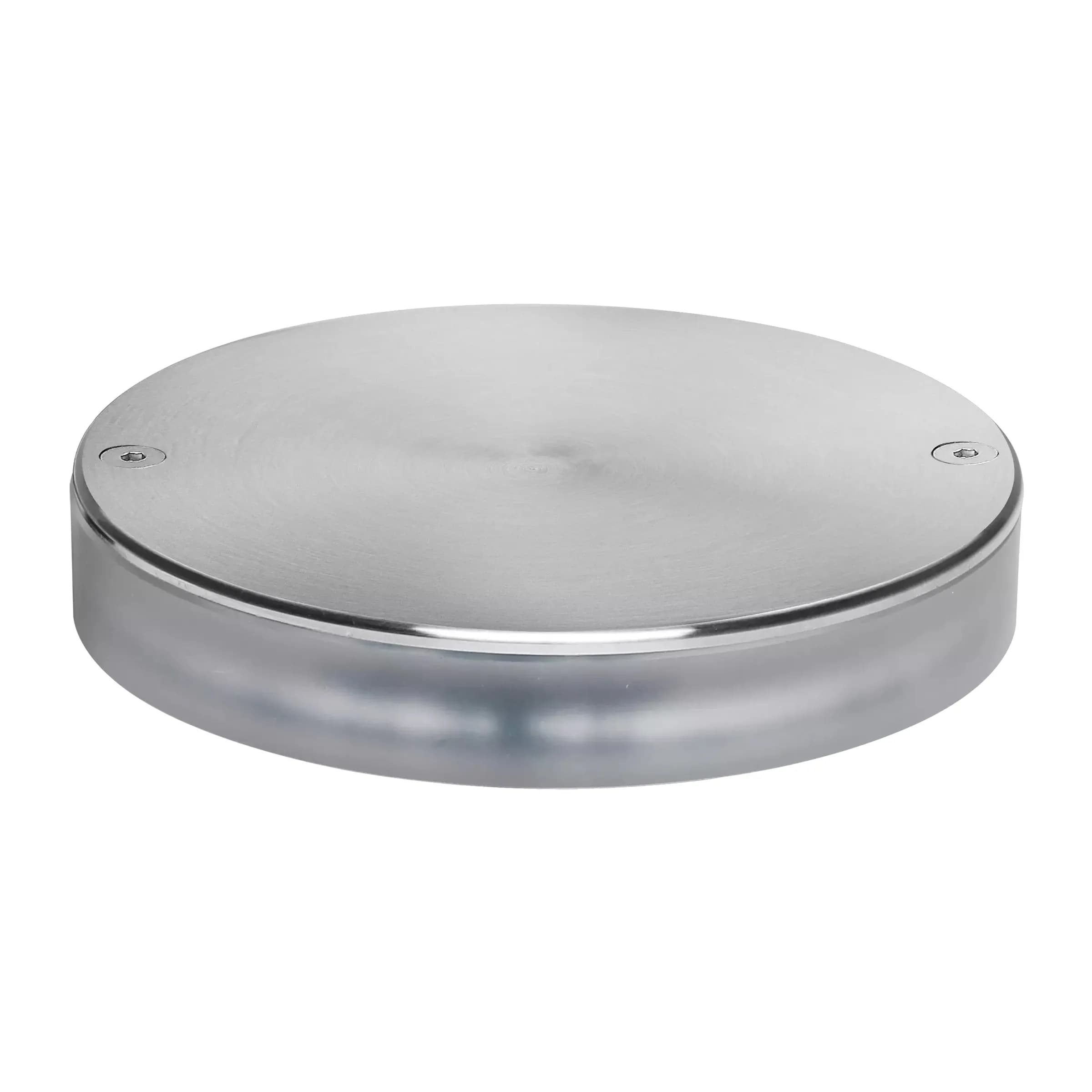

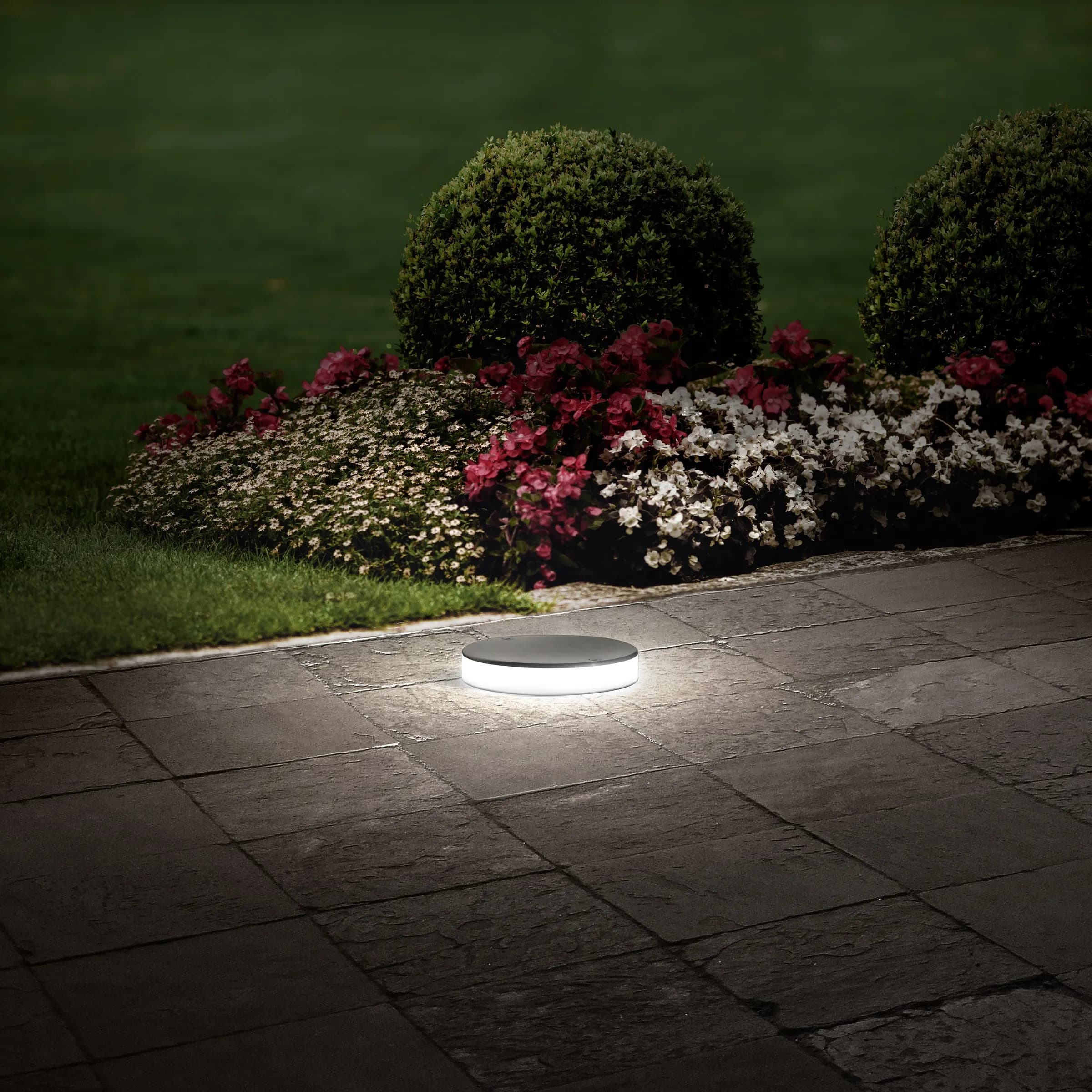

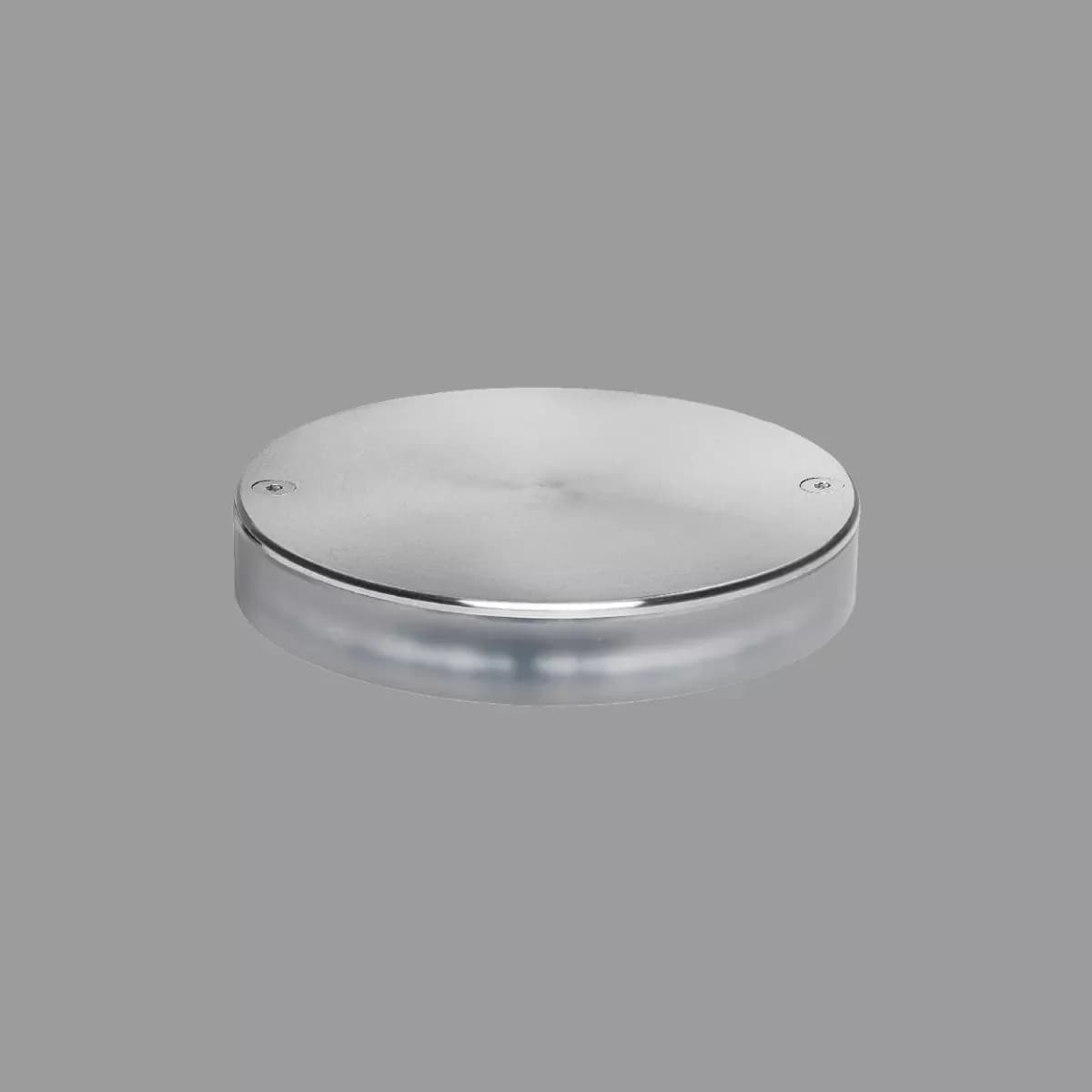

A series of IP67 floor-mounted luminaires, characterised by an ultra-flat AISI 316 stainless steel structure, with a projection of just 20 mm. Available in two shapes and two electrifications, it is designed for 360° grazing lighting above the ground, suitable for illuminating passageways and at the same time creating striking lighting effects. Footpad is installed directly on the surface without the need for casings; the strong and reliable materials guarantee an IK10 impact resistance rating.

Manufacturer
Linea Light
Luminaire type
Outdoor luminaires

from 321 €

VAT included. We'll put together the exact price for the version you choose in your quote.

The luminaire runs on an external power supply, which is priced separately. We will help you choose the right one and include it in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Footpad_R: Round version
  • Outdoor installation
  • Ground mounting
  • Driver not included
  • Constant Current
  • Carriageable device
  • Walkable device
  • Power supply cable included
  • Article protected by resin
  • Single emission luminaire

Applications

  • Outdoor – Step lights

Technical data

  • IP67
  • IK10
  • CRI 80
  • CCT: 2700 K / 3000 K / 4000 K
  • Power: 4.5–5 W
  • Optics: Diffused
  • Finishes: Stainless Steel
  • Light source (77453M00): 1 arrayLED 4.5 W DC 500 mA
  • Delivered luminous flux (77453M00): 200 lm

Certifications

  • RoHS, CE, EAC
