Linea Light

Linea Light Alcor

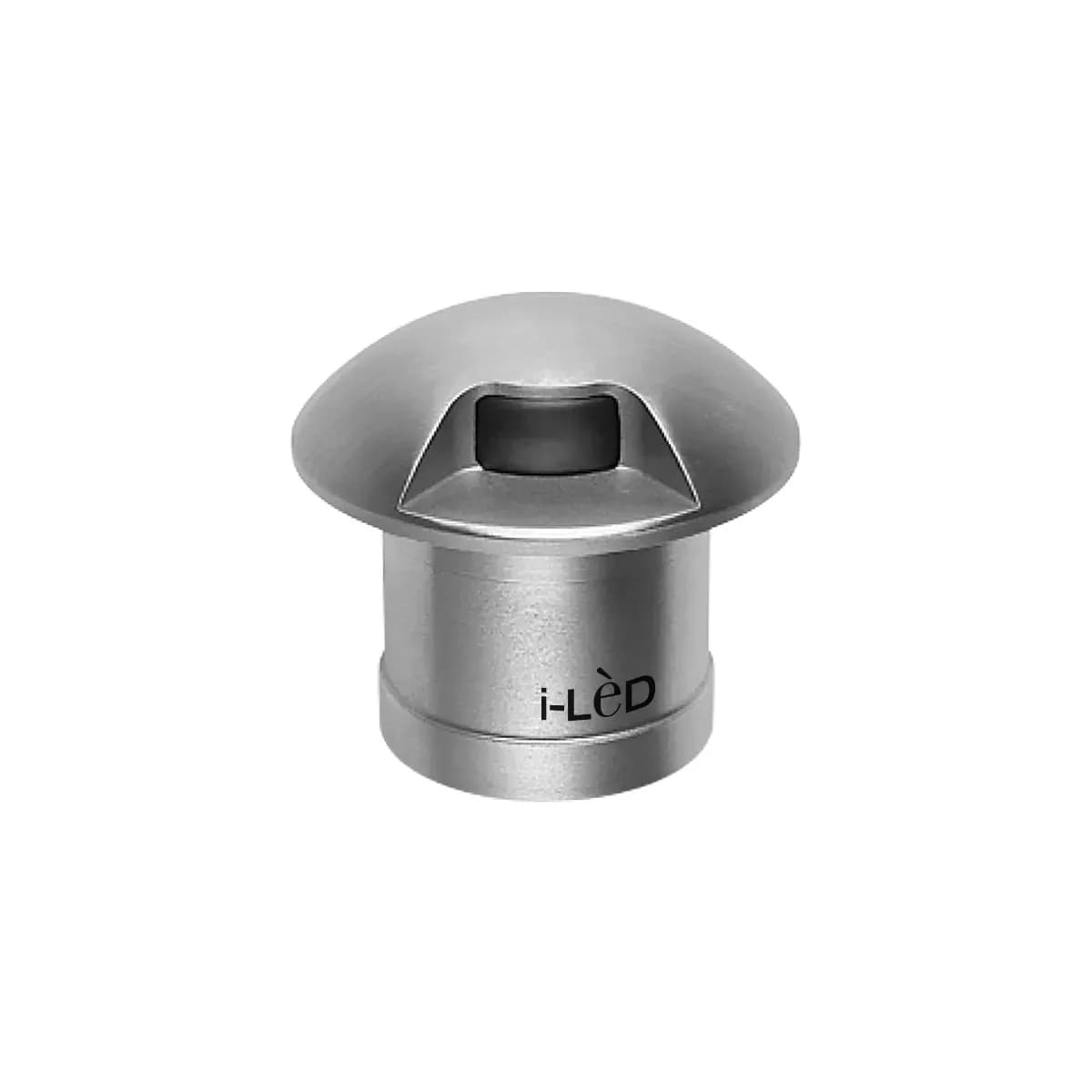

Alcor_R, the IP67 recessed step light from the Alcor range. With extremely compact dimensions and cutting-edge performance, Alcor_R is the ideal solution for illuminating spaces with style and safety. Its round shape, brass body, and tempered prismatic glass diffuser exude timeless elegance, while the mono-directional radial optics ensure precise and uniform illumination.

Manufacturer: Linea Light
Luminaire type: Outdoor luminaires

from 186 €

VAT included. We'll put together the exact price for the version you choose in your quote.

The luminaire runs on an external power supply, which is priced separately. We will help you choose the right one and include it in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Alcor_R: Round version
Alcor_R1: One-emission round version
Alcor_R1 Blade: Version with blade optics
Alcor_R2: Round version with two emissions
Alcor_R4: Four-emission round version
Outdoor installation
Ground mounting
Driver not included
Constant Current
Carriageable device
Walkable device
Power supply cable included
Article protected by resin
Single emission luminaire

Applications

Outdoor – Uplights

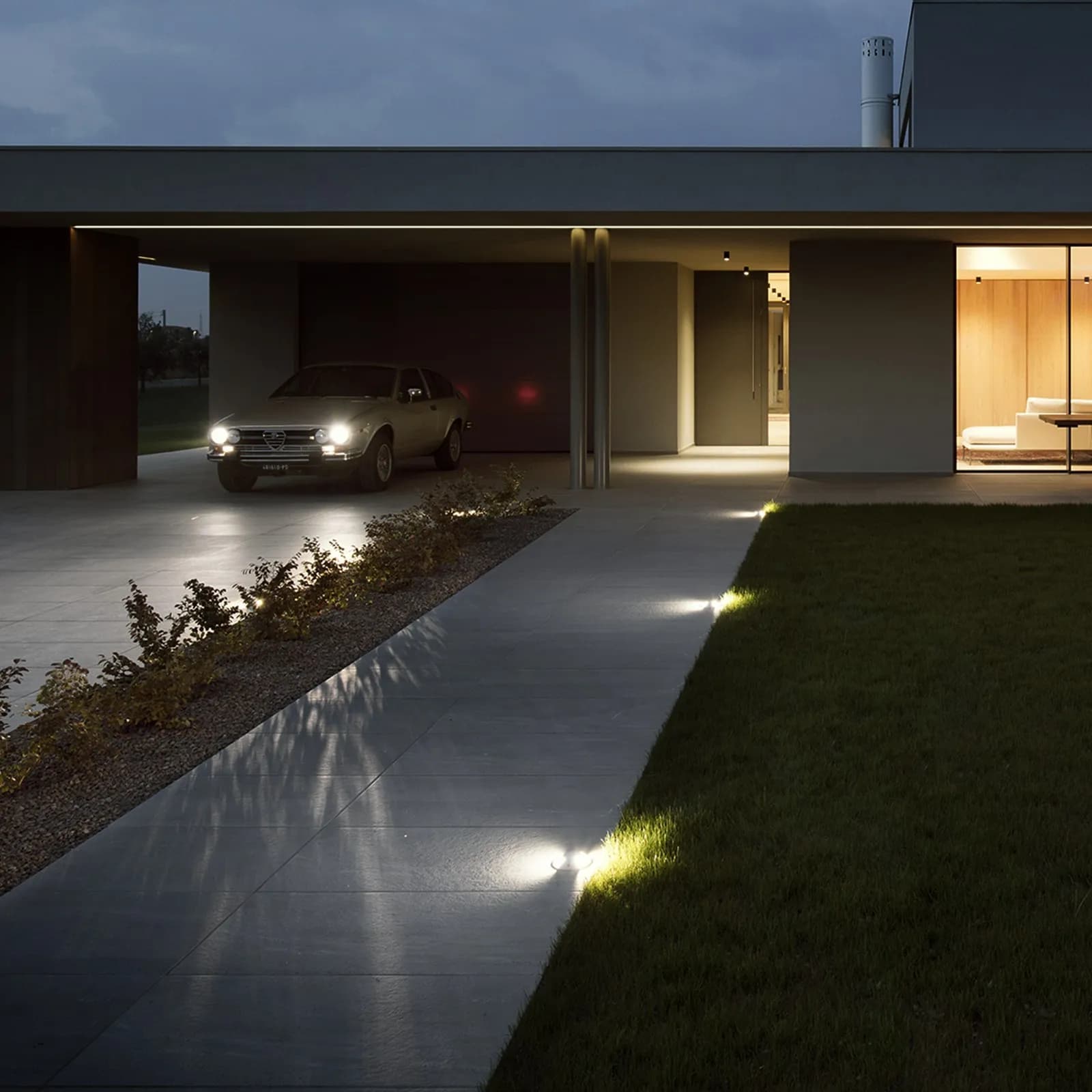

Outdoor – Step lights

Technical data

IP67
IK10
CRI 80
CCT: 2700 K / 3000 K / 4000 K
Power: 1.5–8 W
Optics: Radial Mono-directional Emission, Ultra Spot, Radial Bi-directional Emission, Radial Multidirectional Emission
Finishes: Gunmetal, Stainless Steel, Text brilliant grey RAL 9006, Stainless steel
Light source (97353M18): 1 x powerLED 1.5 W DC 500 mA
Delivered luminous flux (97353M18): 37 lm

Certifications

RoHS, CE, EAC
