Lena Lighting Tiara

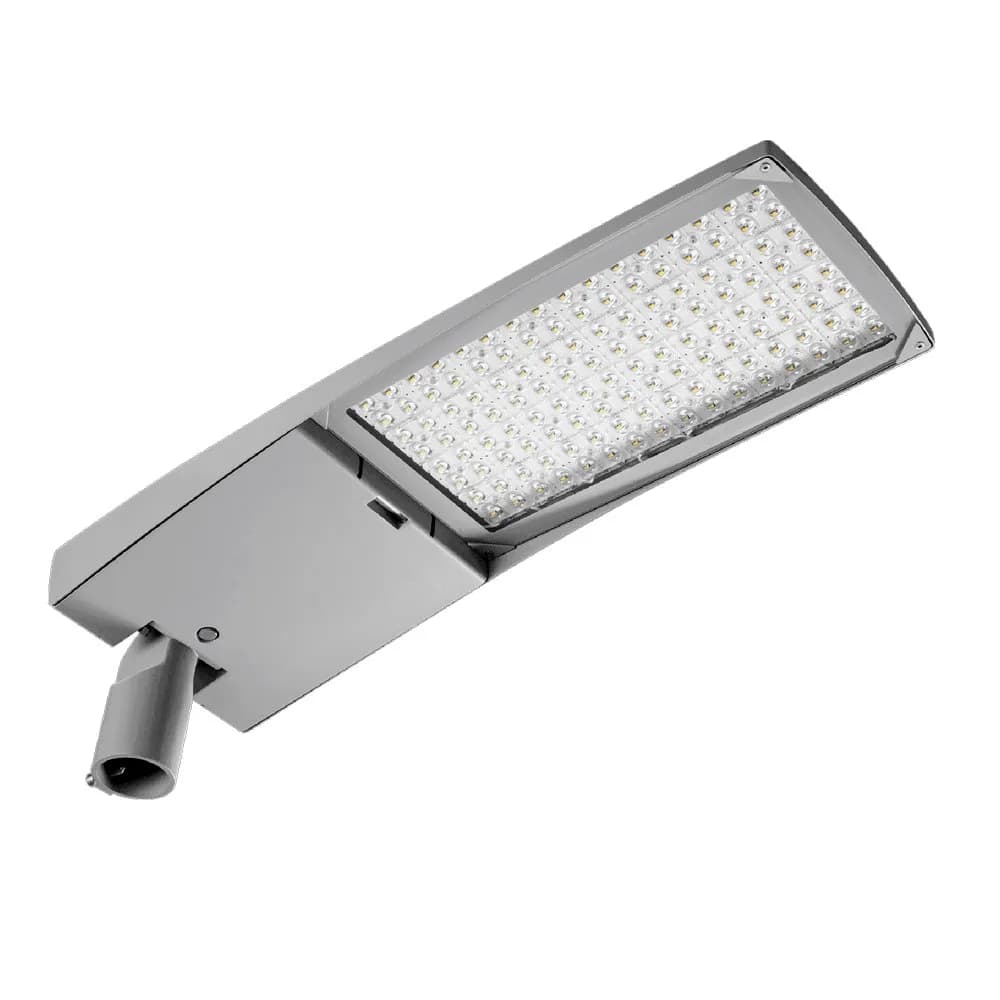

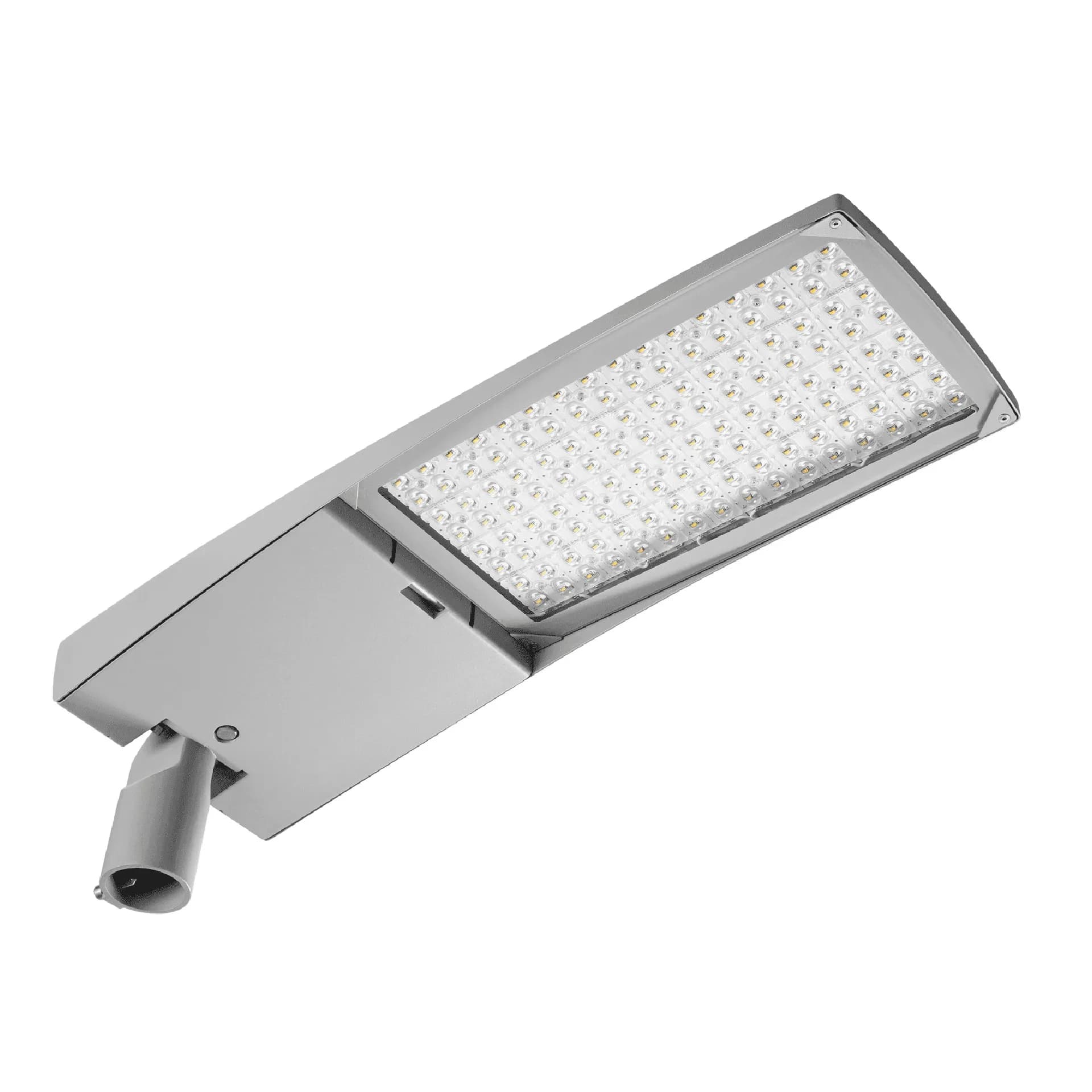

Version with luminous efficacy up to 181lm/W. Tiara 2 LED L a family of LED road luminaires based on a proven form factor. It uses directional multi-lens matrices, made of PMMA, with each lens having the same optics, ensuring that the luminous characteristics remain constant over time. Components from renowned manufacturers and new LED panels contribute to the very high luminous efficacy achieved at the output of the luminaire - reaching 181 lm/W. Thanks to the use of dedicated optics, it is possible to illuminate objects such as: motorways, motorways, national roads, voivodeships, districts, communes, municipalities, housing estates, area lighting. Optics are also available to illuminate: pedestrian crossings, pavements and cycle paths.

Manufacturer: Lena Lighting
Luminaire type: Outdoor luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

High efficiency

Applications

Streets and roads

Technical data

Light source: LED
Power: 49–330 W
Luminous flux: 8750–49574 lm
Luminous efficacy: 145–189 lm/W
Colour temperature: 3000K, 4000K
CRI: >70
Mounting: side entry, post top
DALI dimming version available
Supply voltage: 220-240 V
Protection class II

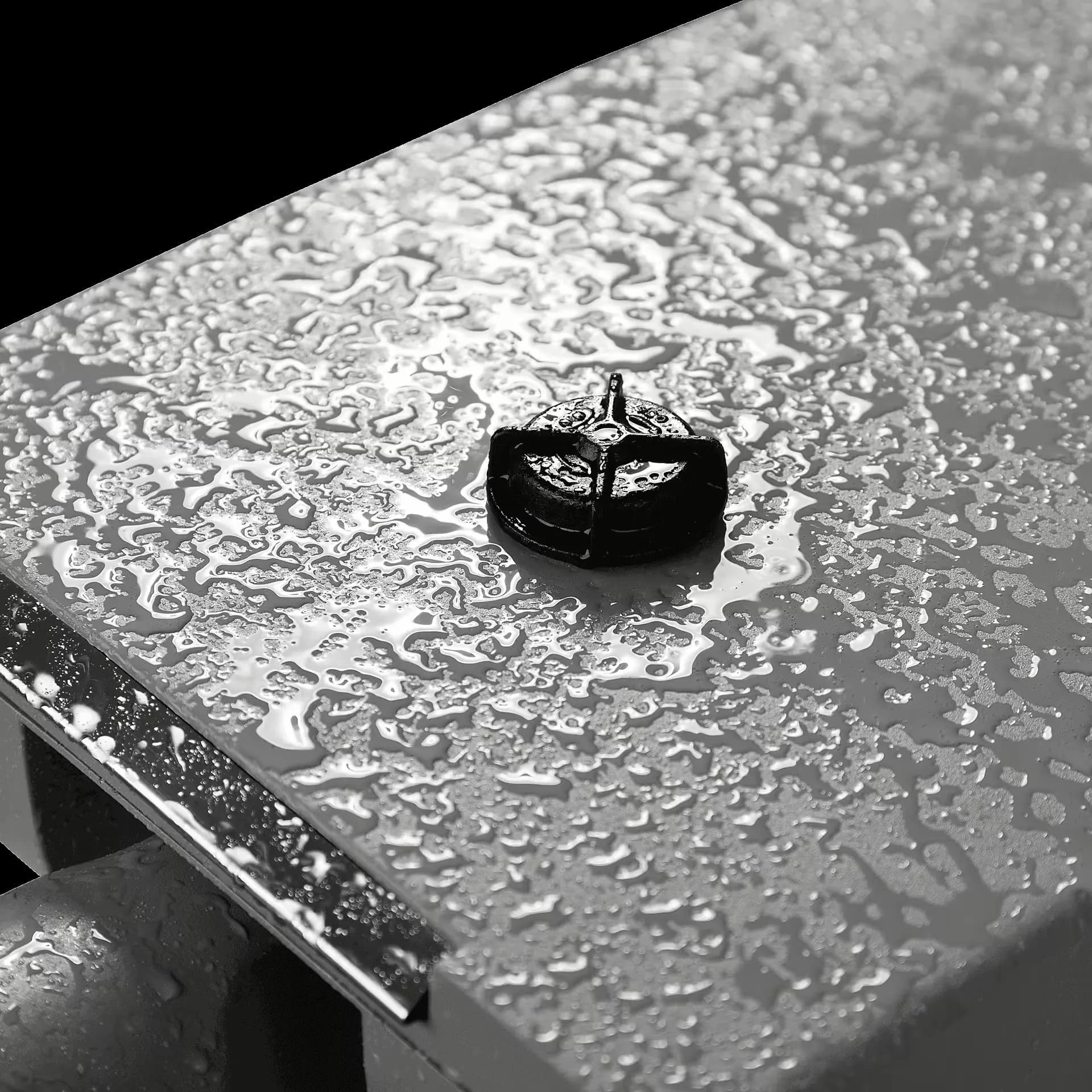

Protection and resistance

IK09
IP66

Certifications

ENEC, ENEC+, CE, Zhaga-D4i, Compliance with the standards of Ukraine, Environmental product declaration (type III)
