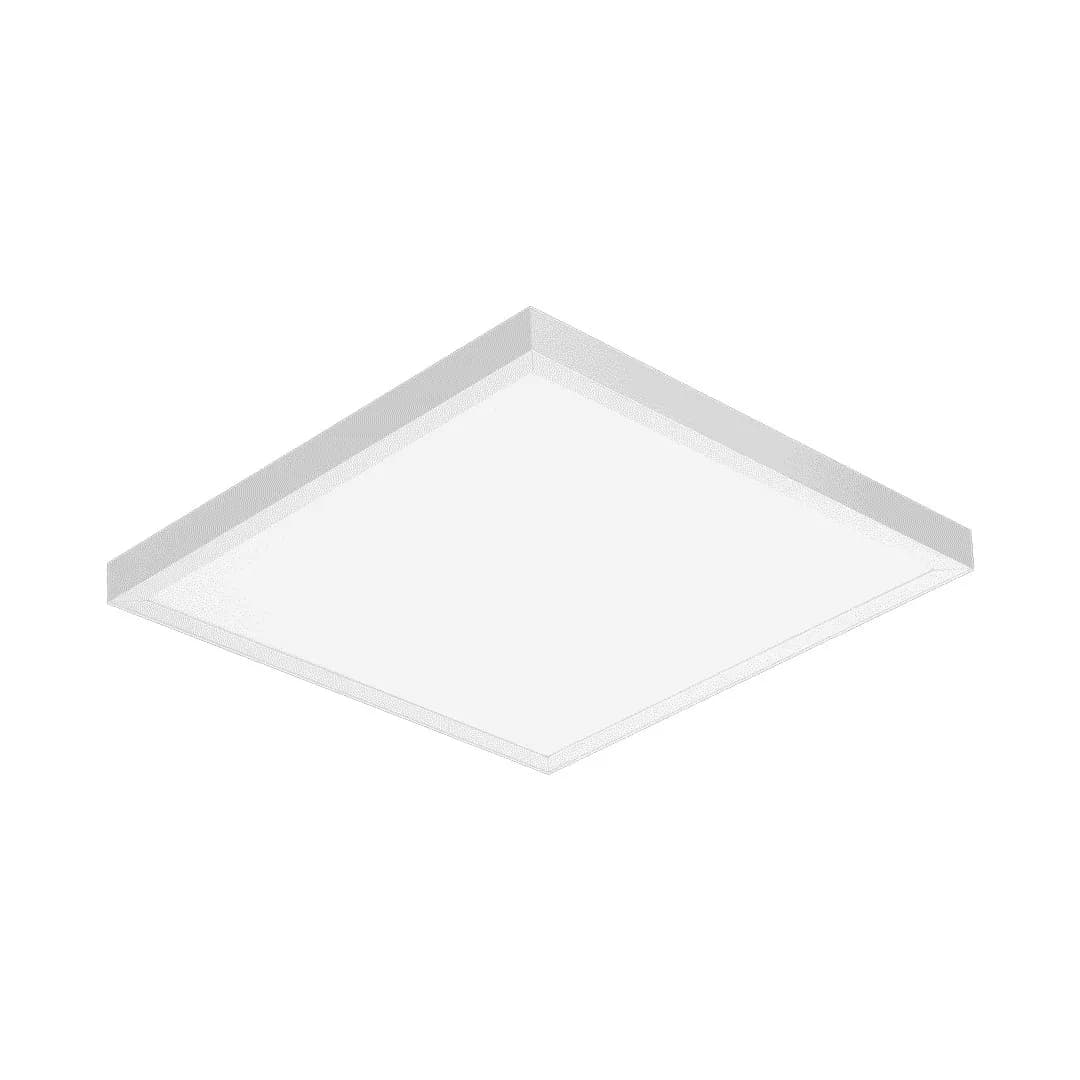

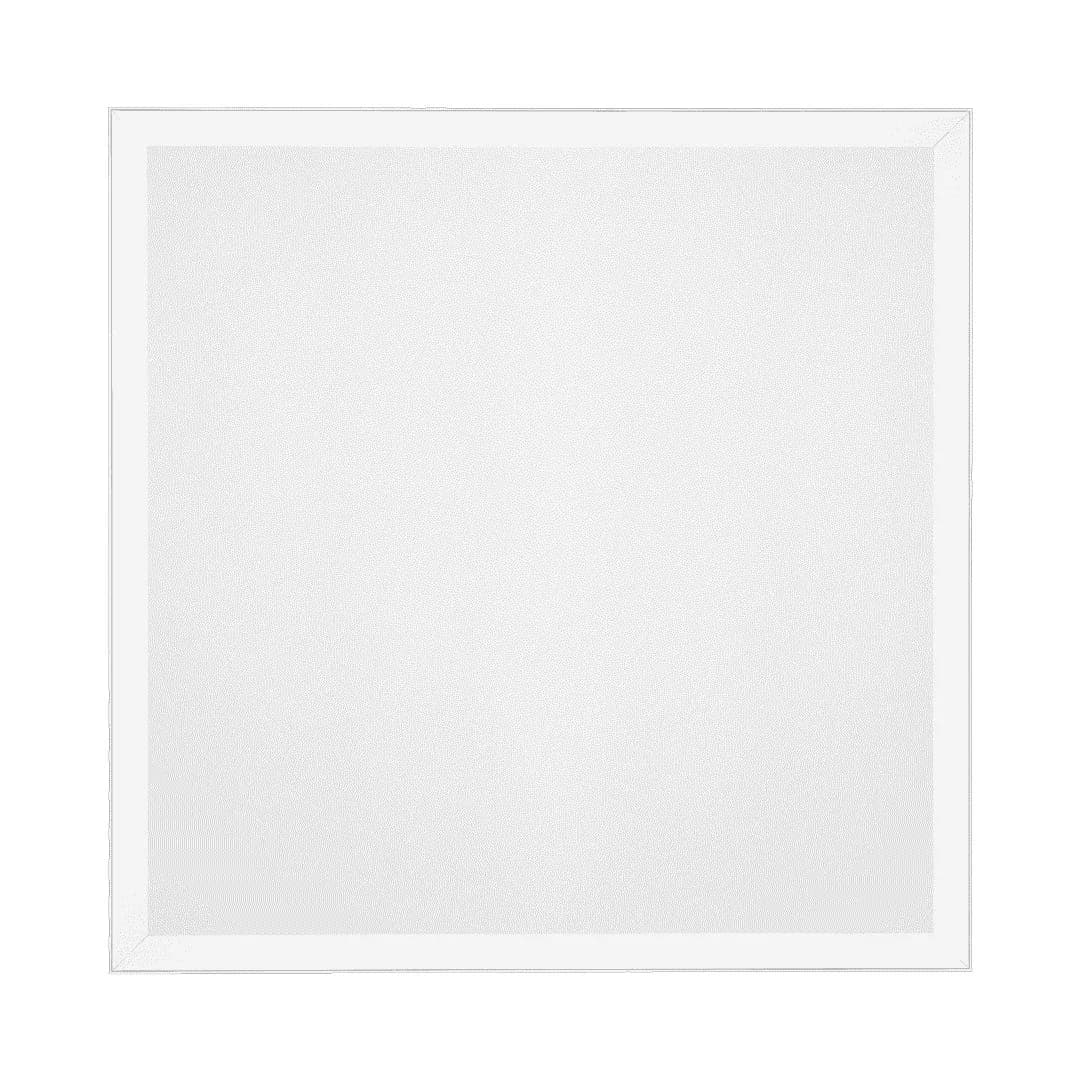

Lena Lighting SQ 600 ceiling luminaire

Sq 600 LED is a new line of square luminaires. The construction, designed from scratch, introduces new solutions ensuring excellent lighting parameters. The body is made of plastic, therefore it is characterized by low weight. The diffuser provides excellent light transmission. The integrated LED module guarantees low power consumption and all the advantages of modern LED light sources. The luminaire is available in 2 versions: Surface-mounted luminaire with the possibility of flush-mounting in modular ceilings and in plasterboard ceilings (using plasterboard recessing kit) is especially recommended for offices, spacious corridors, and public spaces.

Manufacturer: Lena Lighting
Luminaire type: Ceiling luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

with OPAL diffuser - providing soft light
with PRM diffuser - with higher luminous efficiency and low glare UGR <19 (18W, 24W, 32W versions).
RCR sensor - sensor used for motion detection, without twilight detection option; uses microwaves for detection (active sensor),
control in the DALI standard,
CORRIDOR corridor function (RCR + DALI).
surface mounted - IP20,
flush-mounted - IP44/20.
IoT Ready
Quick installation

Applications

Commercial
Educational
Residential
Art and culture
Office

Technical data

Light source: LED
Power: 18–73 W
Luminous flux: 2650–10900 lm
Colour temperature: 3000K, 4000K
Optics / diffuser: OPAL, PRM
Mounting: recessed, surface
Dimensions [mm]: 592/592/44
Body colour: black mat, white
DALI dimming version available
Protection class I

Protection and resistance

IP20
IP44

Certifications

ENEC, CE, Environmental product declaration (type III)
