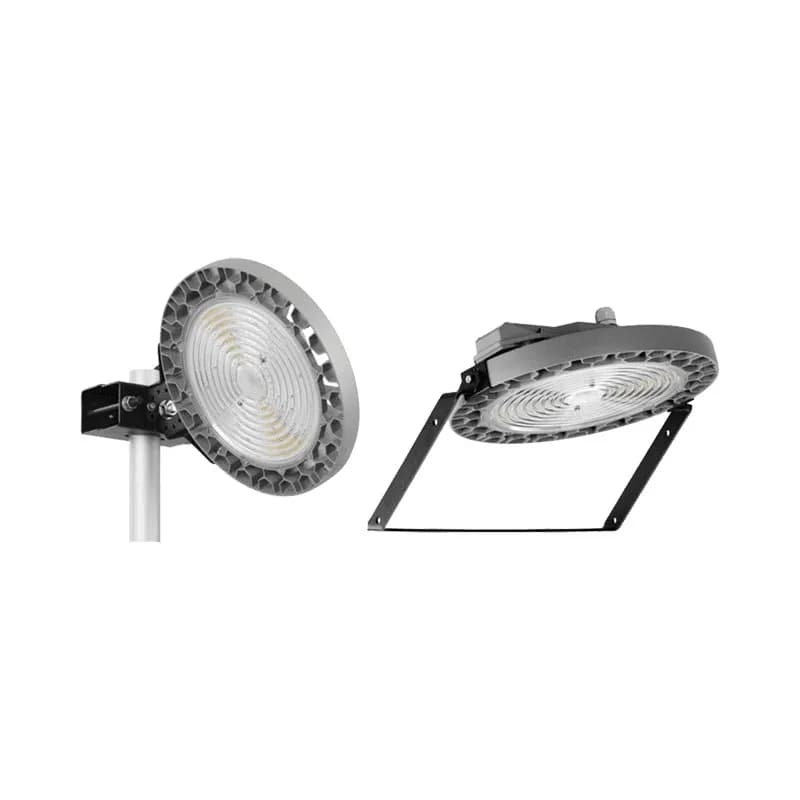

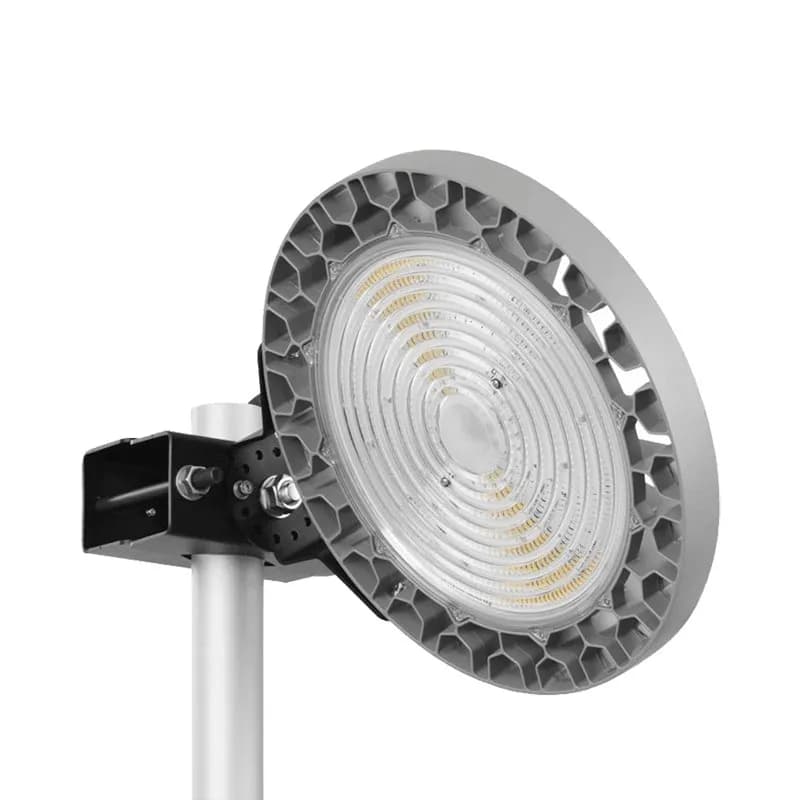

Lena Lighting Oculus outdoor luminaire

IP66 floodlight for pole mounting. For illuminating open spaces: car parks, squares, sports facilities. Oculus LED Pole is a HIGH-BAY luminaire from the NEXT GEN product line, which is a new generation of luminaires dedicated to LED technology. The body, designed from scratch, made of die-cast aluminum and powder-coated, uses natural conduction and convection processes, which have a positive effect on the lamp's heat efficiency. The shape of the body with an integrated, effective heatsink and high-quality materials ensure maximum heat dissipation from the LED module. The luminaire is designed to illuminate open spaces: parking lots, squares, sports facilities.

Manufacturer: Lena Lighting
Luminaire type: Outdoor luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

IoT Ready

Applications

Industrial

Technical data

Light source: LED
Power: 206–294 W
Luminous flux: 34650–47500 lm
Colour temperature: 4000K
Optics / diffuser: transparent
Beam angle: 55°
Mounting: into the ground, side entry, post top
Dimensions [mm]: 106/371
Protection class I

Protection and resistance

IK09
IP66

Certifications

PZH (Polish Institute of Hygiene), CE, Environmental product declaration (type III)
