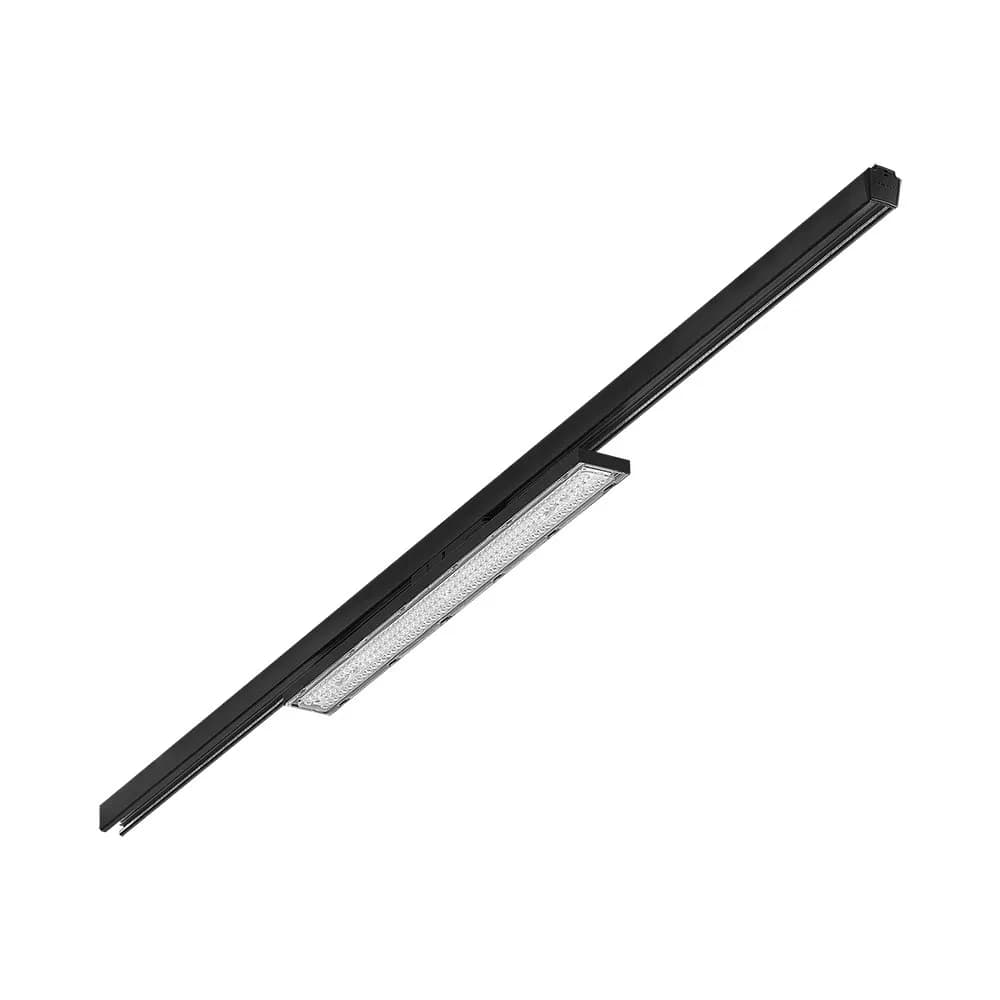

Lena Lighting Linea track luminaire

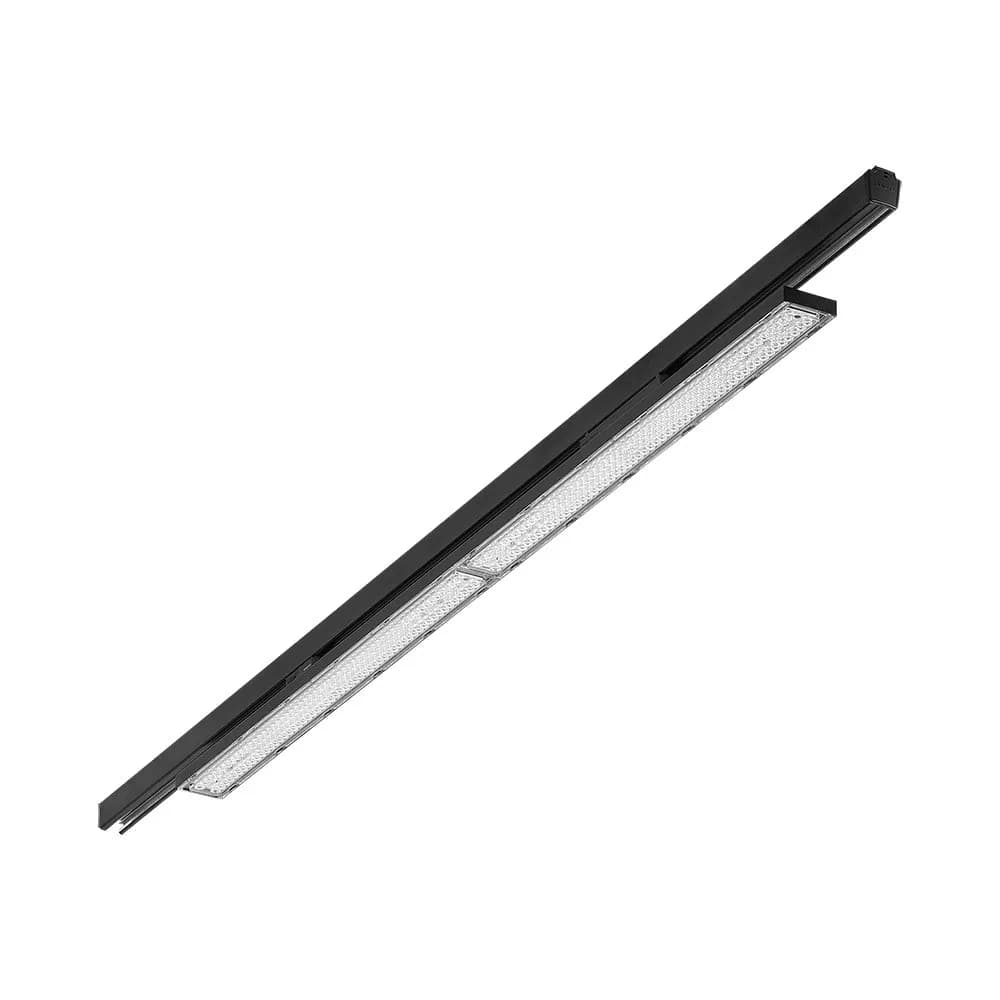

Professional optics system for linear systems dedicated to 3-phase buses. Linea S Track LED is a linear alternative and complement to projectors with a COB LED light source. The modules are available in lengths of 590 and 1175 mm, with a variety of optics to suit particular concepts. Installation in a trunking system increases the range of applications and allows the user to make changes to the layout after installation. They are innovative, highly energy-efficient modules with excellent luminous efficiency and a minimalist, delicate appearance. The main areas of application are in the field of accent lighting in commercial buildings, museums, exhibition halls, offices, flats as an alternative or complement to rail-mounted projectors.

Manufacturer: Lena Lighting
Luminaire type: Track systems and track luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Luminaire with limited surface temperature
Quick installation

Applications

Commercial
HoReCa
Industrial
Art and culture
Architectural

Technical data

Light source: LED
Power: 11–69 W
Luminous flux: 1750–11100 lm
Colour temperature: 4000K
Optics / diffuser: lens matrix
Beam angle: butterfly, asymmetric right, asymmetric, asymmetric left, 65, 80, 90, 105, 120°
Mounting: track
Dimensions [mm]: 590/54/66; 1175/54/66
Body colour: black, white
DALI dimming version available
Supply voltage: 220-240 V
Protection class II

Protection and resistance

IK03
IP20

Certifications

CE, Environmental product declaration (type III)
