Lena Lighting Dione

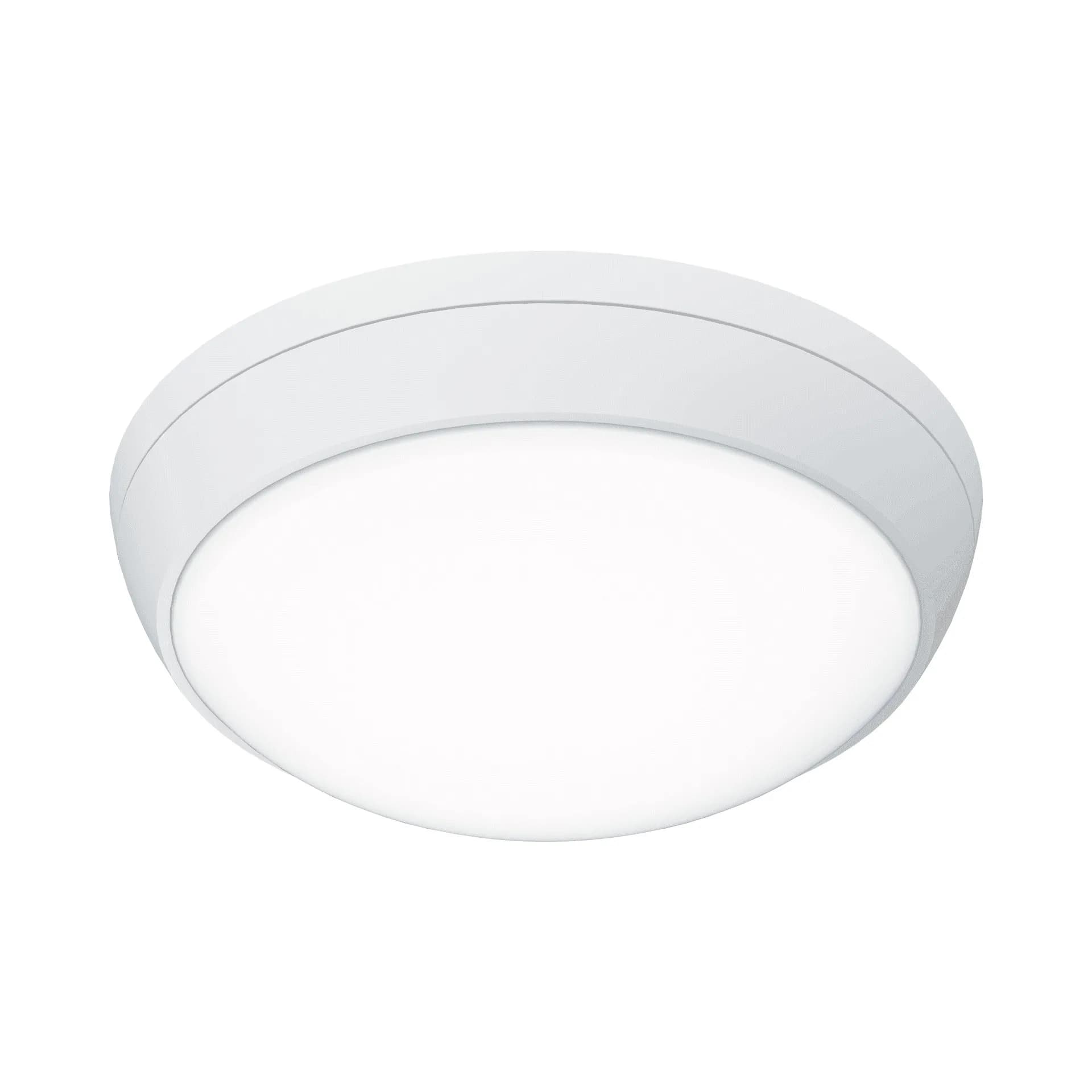

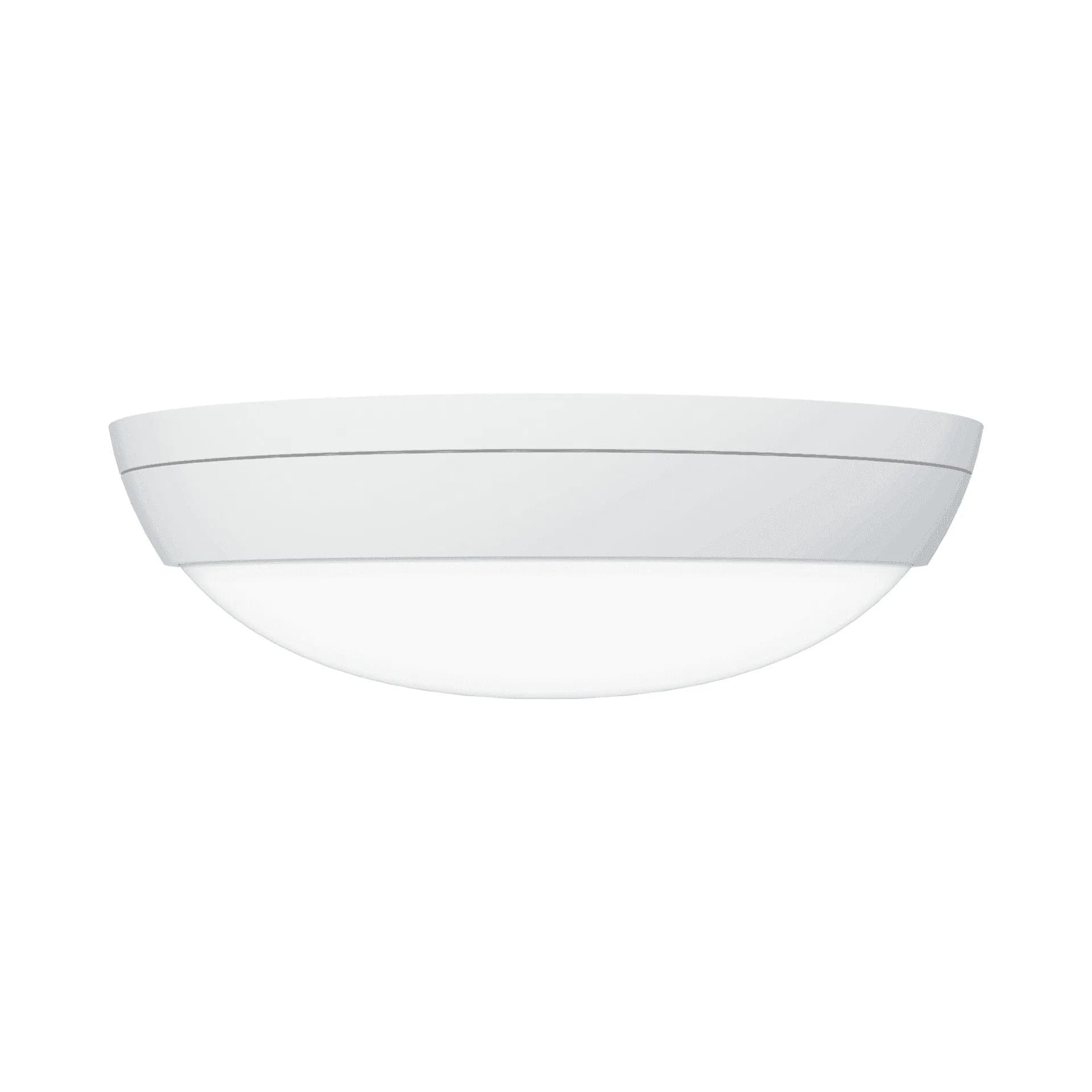

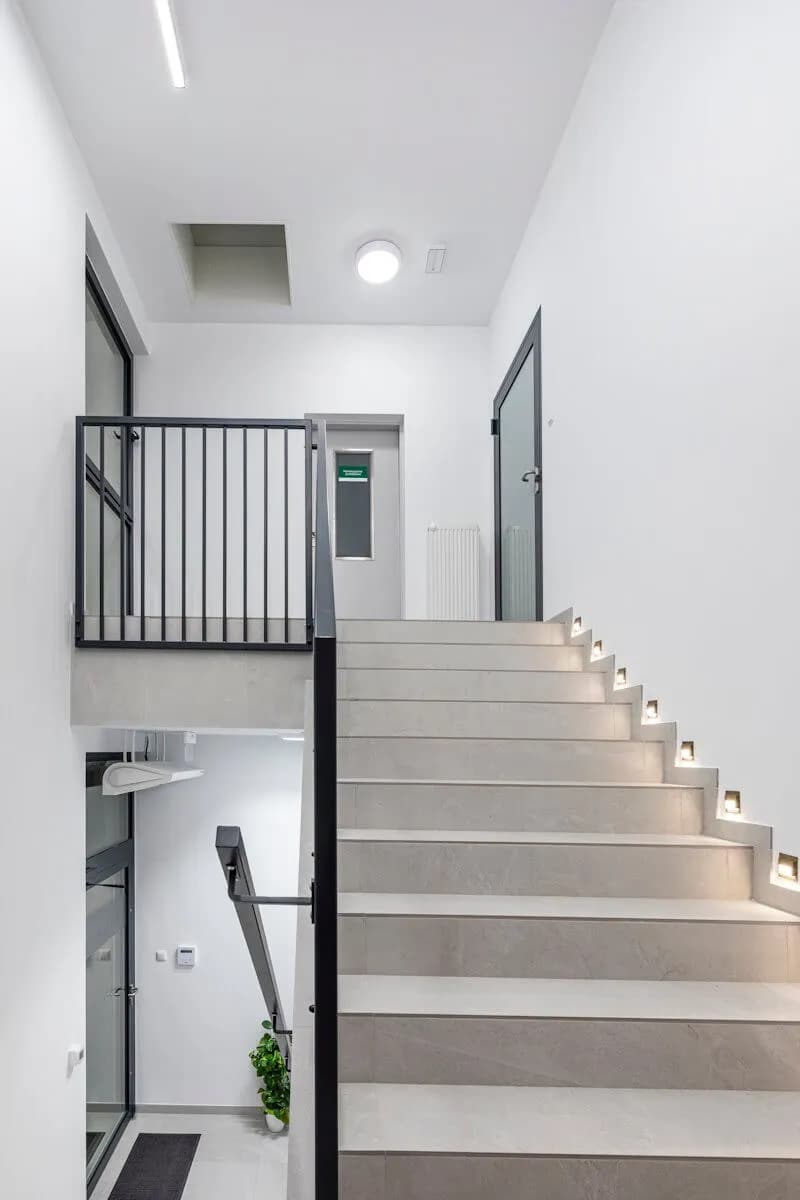

Designed from scratch surface mounted, round LED luminaire with integrated, energy-saving LED panel. The fitting introduces new solutions to improve the light distribution and balance of the temperatures. It is characterized by high lighting efficiency and very high IP65 ingress protection. Specially profiled diffuser made of vandal-resistant PC allows keeping the highest degree of impact resistance IK10. Surface-mounted wall or ceiling luminaire intended for indoor use (utility rooms, staircases, circulation routes) or outdoor. It is also available in a version with an RF motion detector which is especially recommended for use in spaces open to the public.

Manufacturer: Lena Lighting
Luminaire type: Ceiling luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

the sensor used to detect motion
for detection uses microwaves (active sensor).

Applications

Residential

Technical data

Light source: LED
Power: 12–31 W
Luminous flux: 1410–3800 lm
Colour temperature: 3000K, 4000K
Optics / diffuser: OPAL
Mounting: surface
Dimensions [mm]: ø340/115
DALI dimming version available
Emergency lighting version available
Protection class I

Protection and resistance

IK10
IP65

Certifications

ENEC, CE, Environmental product declaration (type III)
