Lena Lighting Capella ceiling luminaire

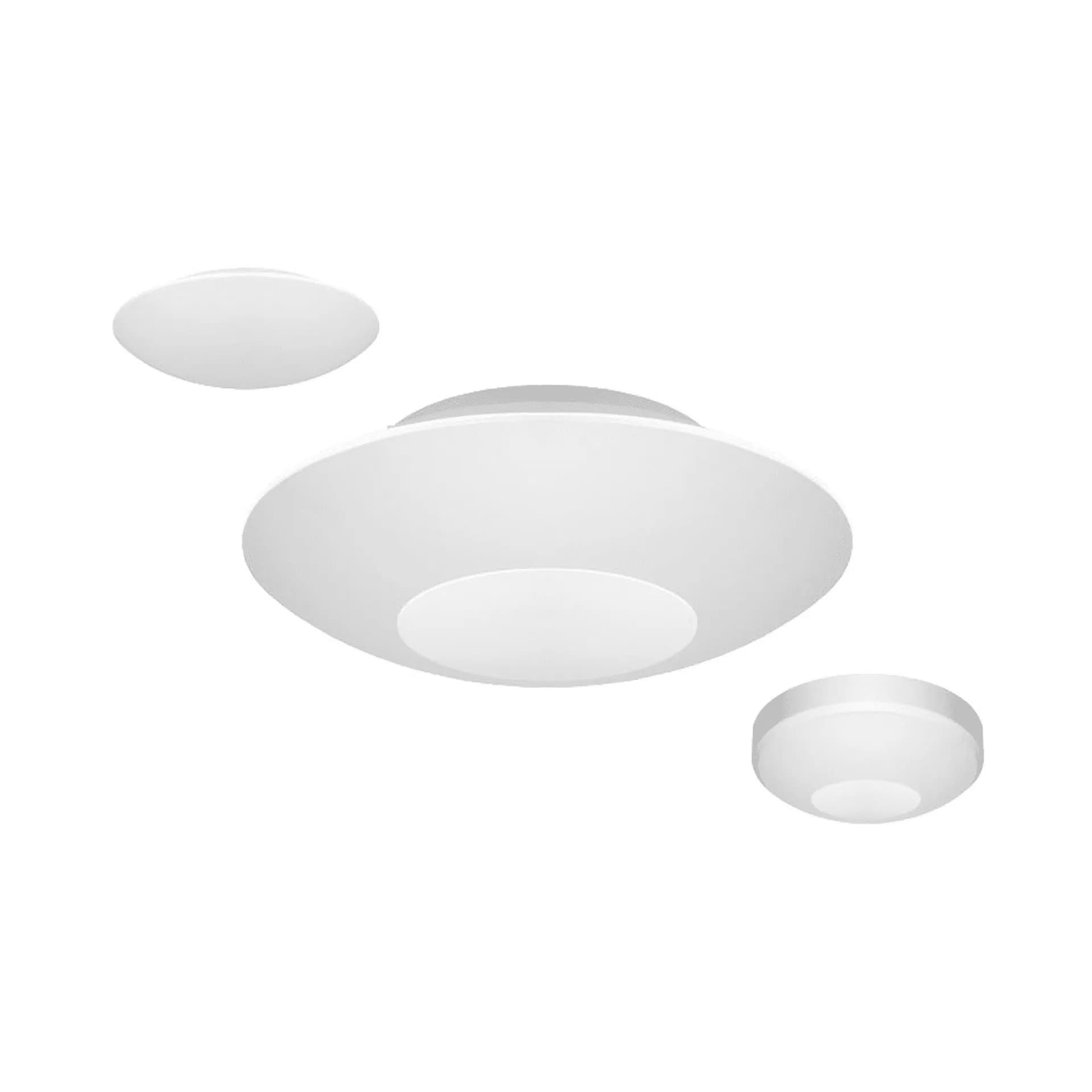

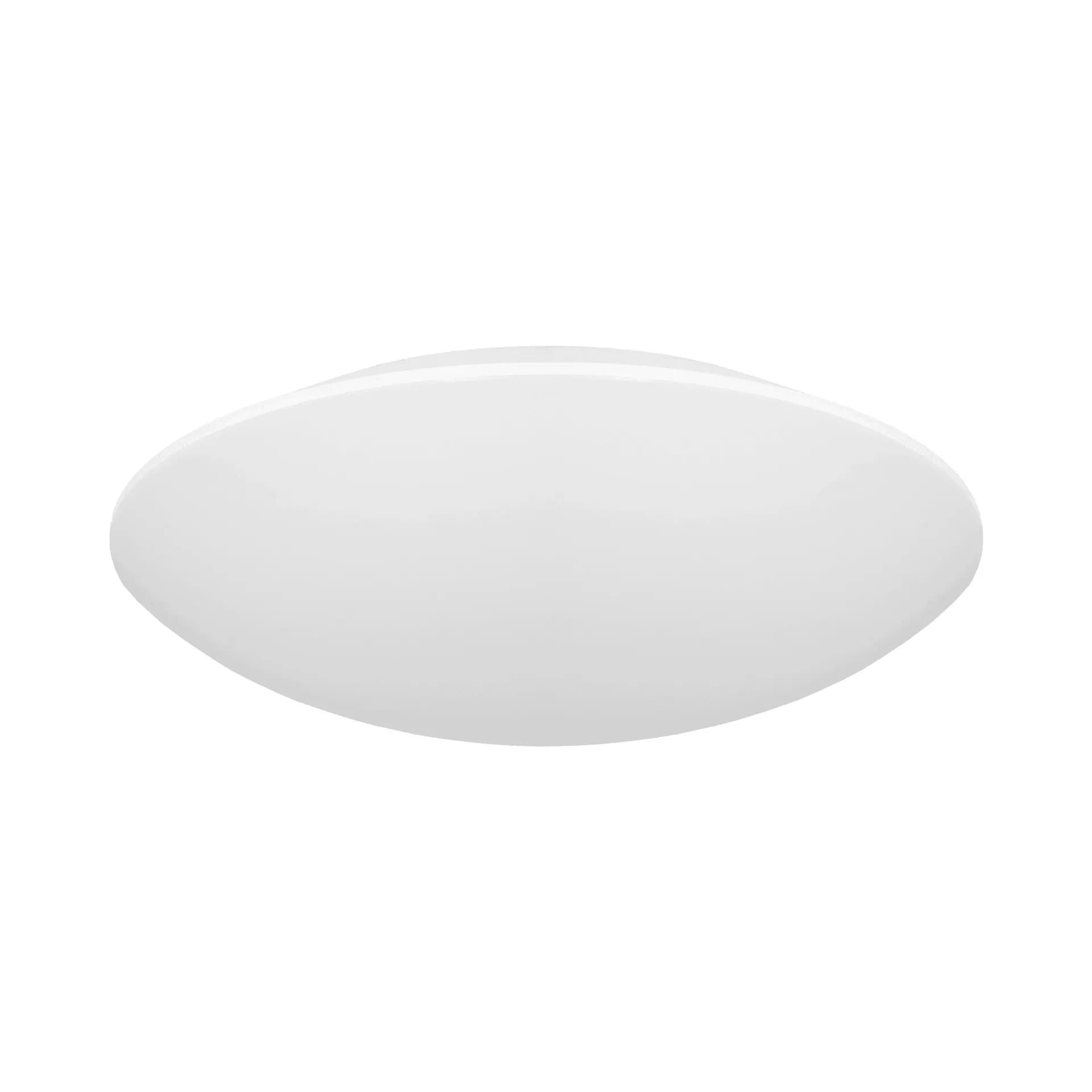

Capella LED is a wide line of luminaires combining high aesthetic values and lighting parameters. The body has been made from ABS and the frosted diffuser from impact-resistant polycarbonate (PC). A multitude of versions makes it possible to adapt the luminaire to many non-standard applications. Luminaires of the PLUS variant line are fitted with branded components of recognized global manufacturers. It features extended life and warranty, increased light efficiency, and optimal use of electricity (Power Factor). Surface-mounted wall or ceiling luminaire intended for indoor use (utility rooms, staircases, circulation routes). It is also available in a version with an RF motion detector which is especially recommended for use in spaces open to the public.

Manufacturer: Lena Lighting
Luminaire type: Ceiling luminaires

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

with a radio motion sensor,
with a PIR presence detector,
with DALI control,
with CORRIDOR function (DALI + RCR),
with Master / Slave RCR motion sensor (wireless),
with emergency module,
with very high ingress protection IP65,
with ANTIVANDAL protection.

Applications

Educational
HoReCa
Residential
Art and culture

Technical data

Light source: LED
Power: 11–26 W
Luminous flux: 950–2450 lm
Colour temperature: 3000K, 4000K
Optics / diffuser: OPAL
Mounting: surface
Dimensions [mm]: 320/105; 340/105
DALI dimming version available
Emergency lighting version available
Protection class II

Protection and resistance

IK06
IK07
IP54
IP65
