Products/ RECESSED LUMINAIRES/ SLIMFLUX BL UGR BASIC
Duralamp

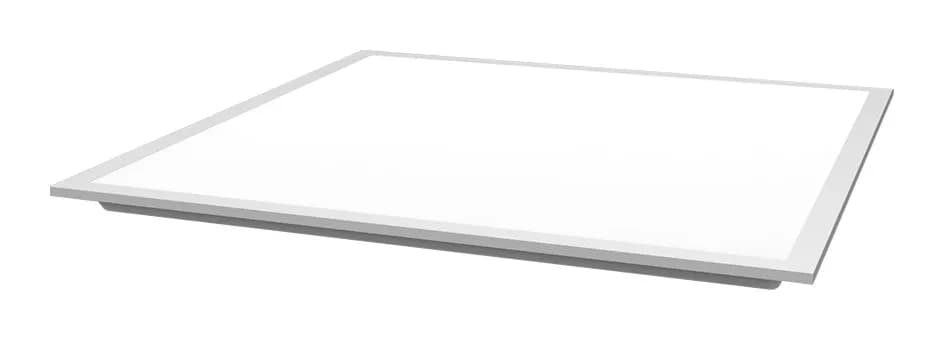

Duralamp Slimflux BL UGR Basic
Direct lighting LED panel.
- Manufacturer
- Duralamp
- Luminaire type
- Recessed luminaires
from 45 €
VAT included. We'll put together the exact price for the version you choose in your quote.
Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.
Features
- The backlit panel is composed of a metal material back compartment providing a heat sink function.
- Colour rendering: Ra>80.
- Do not use with dimmer.
- Insulation Class I panels cannot be made dimmable by changing the driver nor can they be used with the ballast for stand-by lighting.
- Consider more depth for recessed installations.
- Surface mounting: select the recommended frame from the accessories table.
- B3: painted white aluminium body; high-transmittance PMMA primary optics.
- B4: white painted metal body.
- Micro-prismatic anti-glare screen.
- Providing greater visual comfort, improved definition of detail and reduction of stress.
Technical data
- Duralamp range: BASIC
- Power: 30–40 W
- Luminous flux: 3400–4000 lm
- Colour temperature: 3000K / 4000K / 6000K
- CRI: Ra >80
- UGR <19
- Input voltage: 220-240 Vac
- Non-dimmable
- Connection / base: Free Wire
- Lifetime: 25000 h L70B20
- Operating temperature: -20°C … +45°C
- Photobiological safety: Risk Group 0
- Insulation class II
- Flicker free
- Warranty: up to 2 years (4000 h/year)
Protection and resistance
- IP20 (inside) / IP43 (optical side)
Accessories
- Class II SLIMFLUX panels can be used with multi-current dimming power supply, code DELT40D-M.
- Class II SLIMFLUX panels can be used with standby emergency kit, code KTEMR03.
