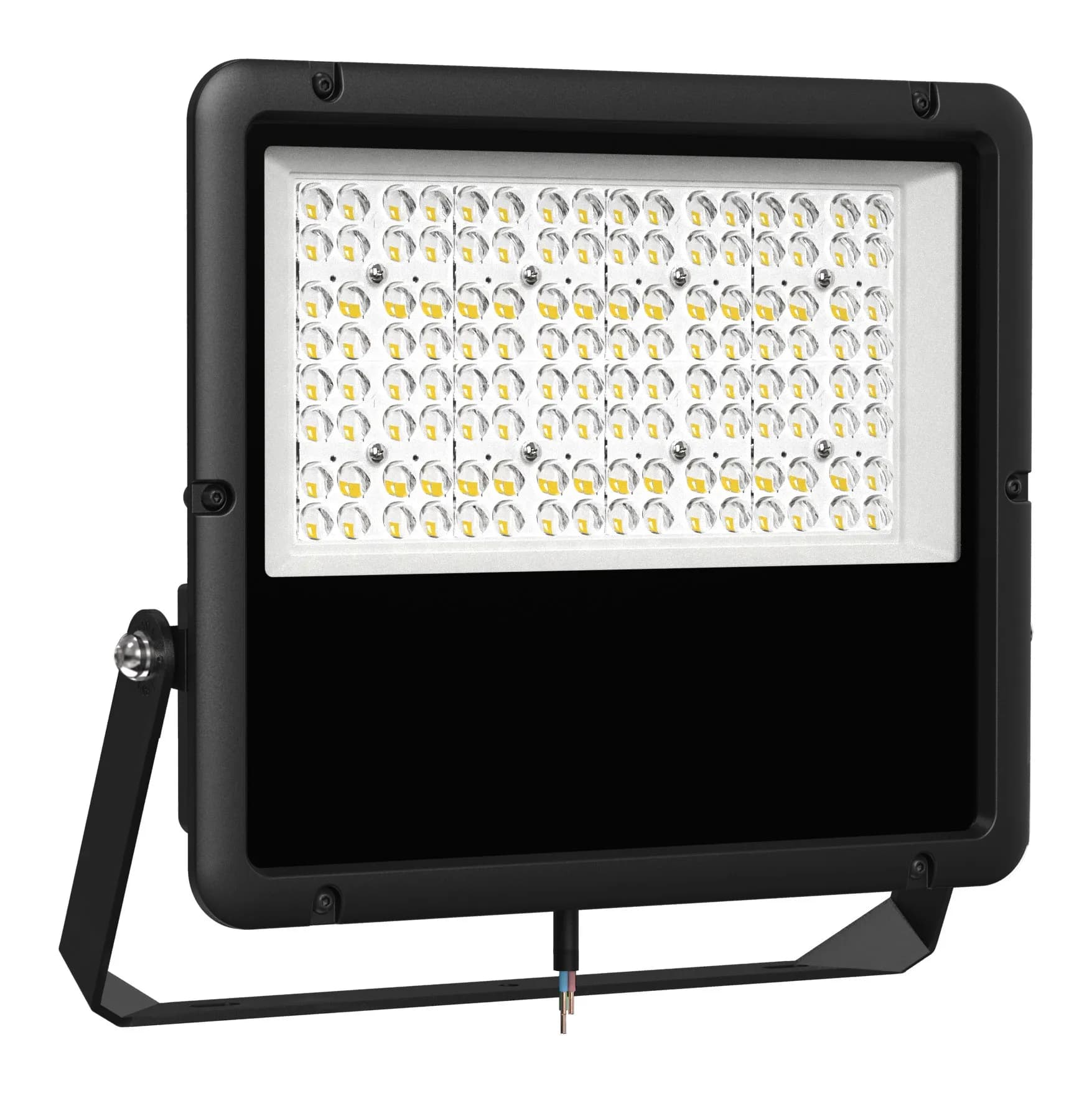

Duralamp Panth H2 CCT

Super-compact professional projectors for large commercial and industrial spaces; uses highly efficient SMD technology, up to 140lm/W. Very versatile thanks to the colour temperature selector switch: 3000K-5000K.

Manufacturer: Duralamp
Luminaire type: Outdoor luminaires

from 146 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Ultra-flat, highly efficient, long service life: reliable products for use in all areas where powerful light output with significant energy savings is required.
EL version, with 6/6kV surge protection, compliant with EN 60598 2 22 for power supply from centralized emergency system CPSS.
Free-standing or fixed to the surface with its swivelling bracket.
Available as accessories: reinforced bracket with tilt control and bracket for mounting on pole head or wall arm (diam. 60).
Die-cast aluminium body.
Suitable for use in dusty and humid environments due to IP65 rating.

Technical data

Duralamp range: PRO
Power: 100–200 W
Luminous flux: 14000–28000 lm
Colour temperature: 3000K / 4000K / 5700K
CRI: Ra 80
Beam angle: 55°x65°
Input voltage: 220-240 Vac
Non-dimmable
Lifetime: 50000 h L70B20
Operating temperature: -25°C … +40°C
Flicker free
Full guarantee 5 years (24h/24h)

Protection and resistance

IP66
IK08
