coeLux CoeLux LS Array

Image 1 of 3

coeLux

coeLux CoeLux LS Array

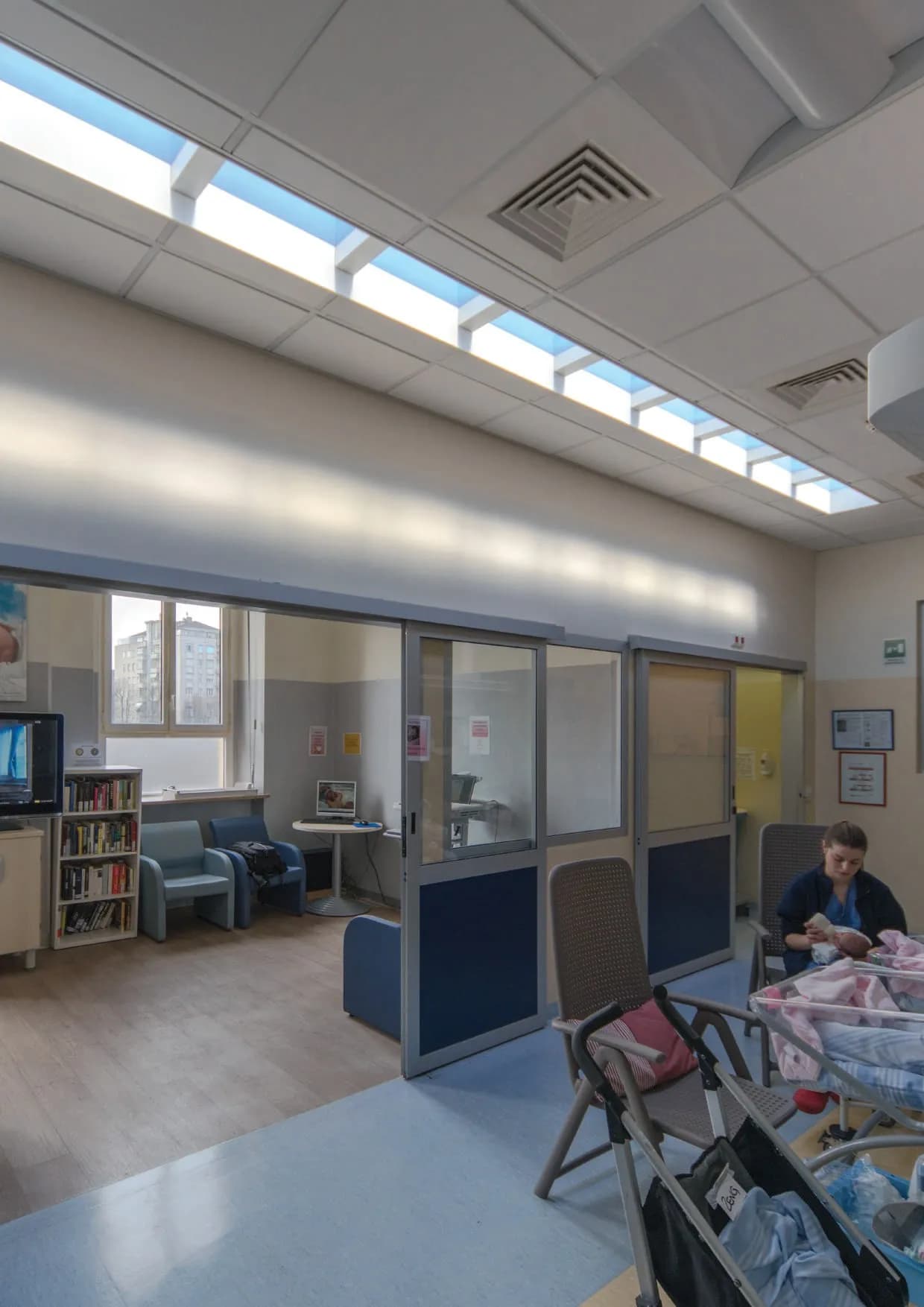

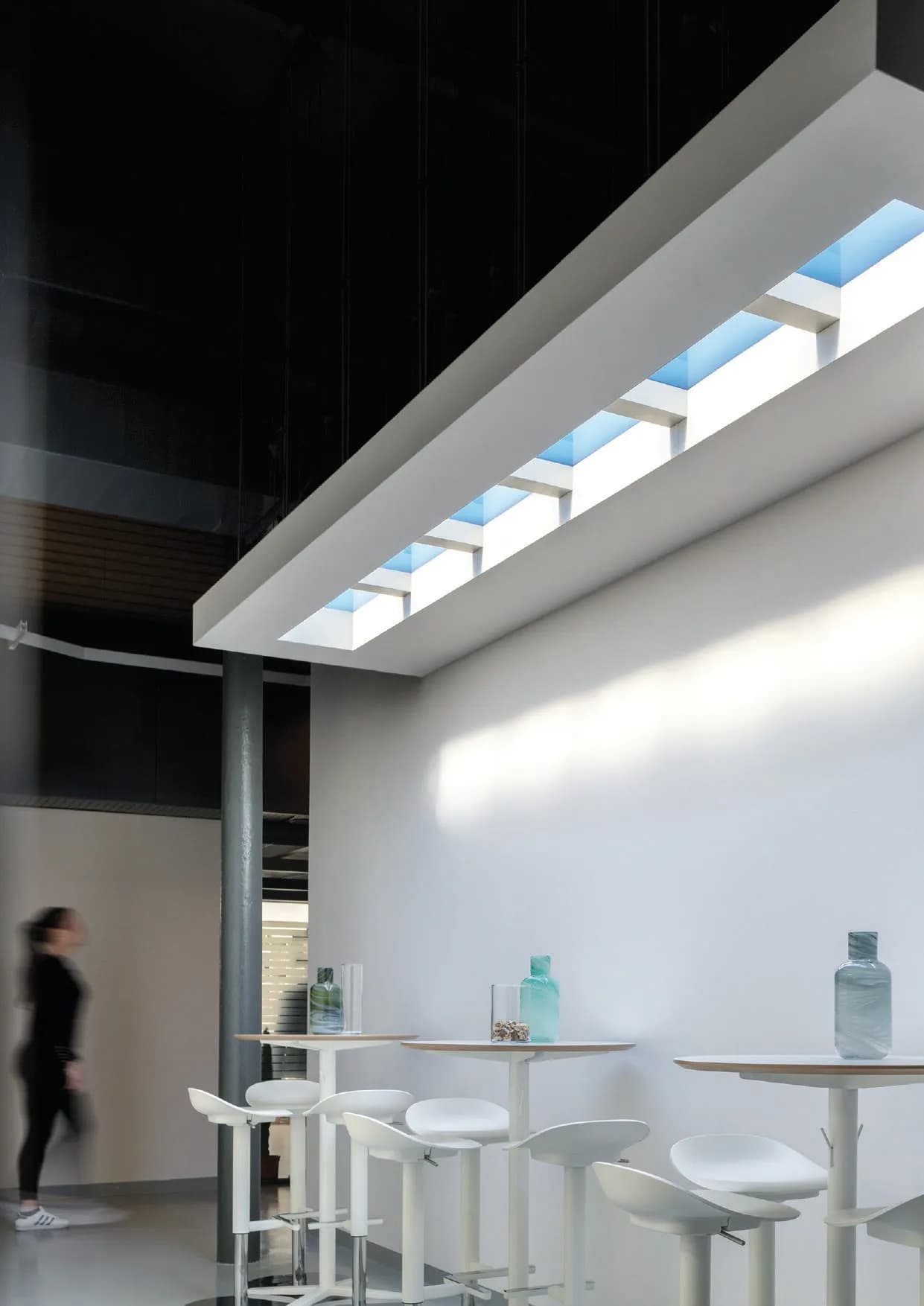

Observing the layout of the CoeLux LS Array and moving in the space below, a sun with shaded outlines seems to follow the observer: a play of optics creates the illusion of a slight movement that gives realism to the system. The infinite modularity of CoeLux LS Array allows you to create long corridors of sky. Each module is interrupted by a small geometric element that divides the window into two equal parts. The light spot on the wall, interspersed with small areas of shadow, gives an extremely realistic effect to the composition.

Manufacturer
coeLux
Luminaire type
Recessed luminaires

from 7 316 €

VAT included. We'll put together the exact price for the version you choose in your quote.

The luminaire runs on an external power supply, which is priced separately. We will help you choose the right one and include it in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Modular system for long corridors of sky
  • Single, Head and Middle modules
  • Each module divided into two equal windows
  • Beam of light at 45 degrees
  • Dimmable by DALI or 0-10V, 0.1-100%

Technical data

  • Skylight size: (498 + 498) x 295 mm per module
  • Device dimensions: 1159 x 500 x h460 mm (Single)
  • Weight: 24 kg
  • Total light output: 3000 lm (Single)
  • CRI (Ra) > 92
  • CCT of transmitted beam: 4800 K; CCT of the sky: > 30000 K
  • Max power consumption: 80 W
  • Lumen maintenance (L90B10): > 50000 h
  • IP20 (IP44 on the sky panel side only)
  • Drivers not included (2 x DALI driver required)

Certifications

  • CE, CB, PSE
