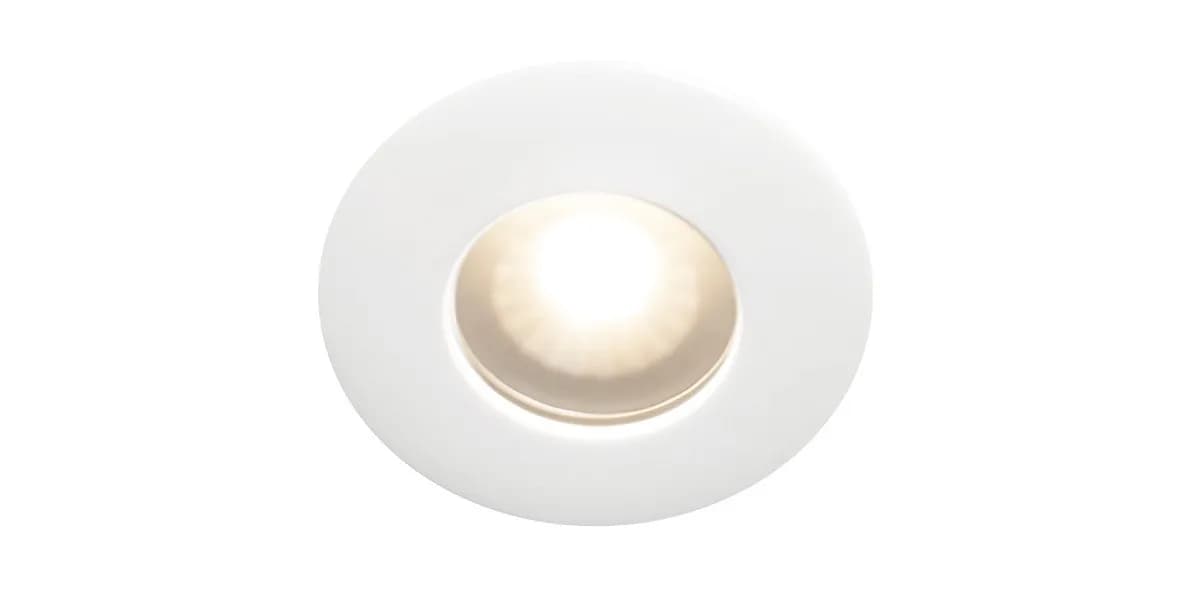

Barthelme Downlight 1208

High-quality downlight for indoor and dry, protected outdoor use (dimmable in AC mode only) with matt, white powder-coated surface, for versatile applications from retail to residential.

Manufacturer: Barthelme
Luminaire type: Recessed luminaires

from 74 €

VAT included. We'll put together the exact price for the version you choose in your quote.

The luminaire runs on an external power supply, which is priced separately. We will help you choose the right one and include it in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

Protection class: IP 44 for use in various environments
Input voltage variants 12 V DC or 12 V AC, constant voltage (CV)
Color temperatures: 2700 K, 3000 K
Beam angle, symmetrical: 70 °
Energy-efficient and contemporary replacement for conventional halogen downlights

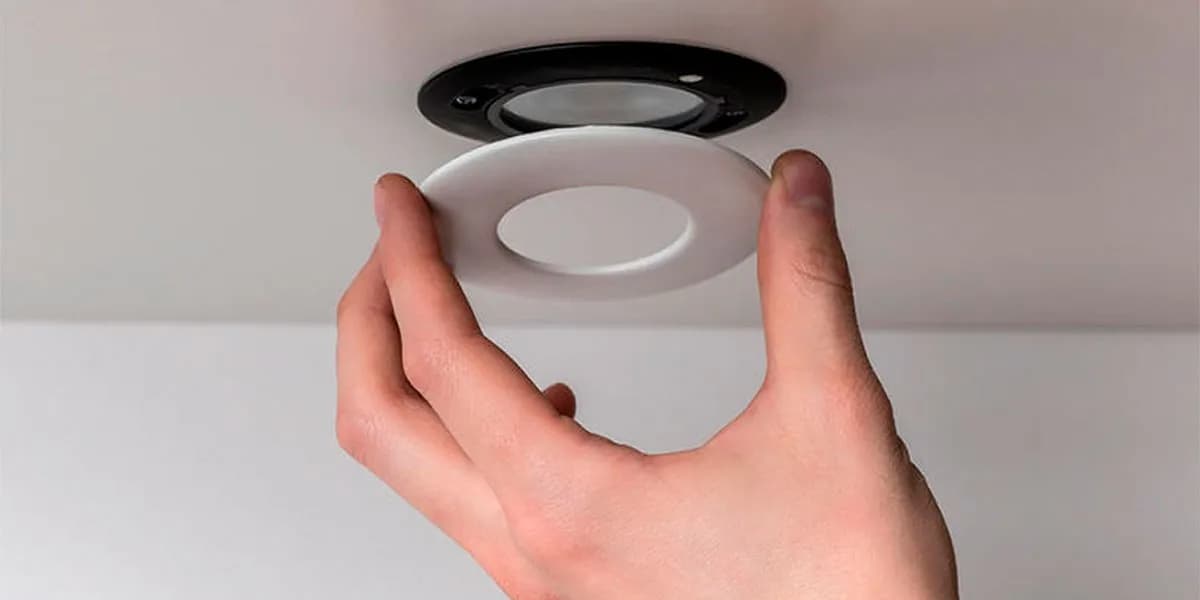

Easy installation thanks to push-in clamps (mounting tension springs) integrated in the heat sink
Front Ø: 82 mm, mounting Ø: 58 mm, mounting height without shield: 18 mm, with shield: 22 mm

Applications

Retail
Residential

Technical data

Dimensions: 22×Ø82 mm (h×d)
Number LED: 4
Input voltage: 12 VDC/12 VAC
Housing/colour: white
Beam angle: 70°
Lifespan L70: 75000 h
Colour consistency: SDCM 3

Protection and resistance

IP44
