Ateljé Lyktan Vault wall luminaire

Image 1 of 3

Ateljé Lyktan

Ateljé Lyktan Vault wall luminaire

The Ateljé Lyktan Vault wall luminaire is the wall luminaire version of the Vault family. This version: IP20, 3850 lm, 37 W, 3000 K. The same family is also available as: pendant luminaire.

Conceived by London based creative agency Fourmation, Vault is a culmination of their experience of designing interior spaces and addresses the need for a flexible lighting system. The system creates an architectural feature, complimenting any interior space.

Manufacturer
Ateljé Lyktan
Luminaire type
Wall luminaires

Price on request

Project-based price – we will send a quote within one working day.

Message · Ateljé Lyktan

Contact us

On the manufacturer site

Full technical data, dimensioned drawings and files (IES, BIM) are on the manufacturer’s page – always the latest version.

Lighting a whole project? Our lighting designer helps choose and place the luminaires so the whole space works. Lighting design

Features

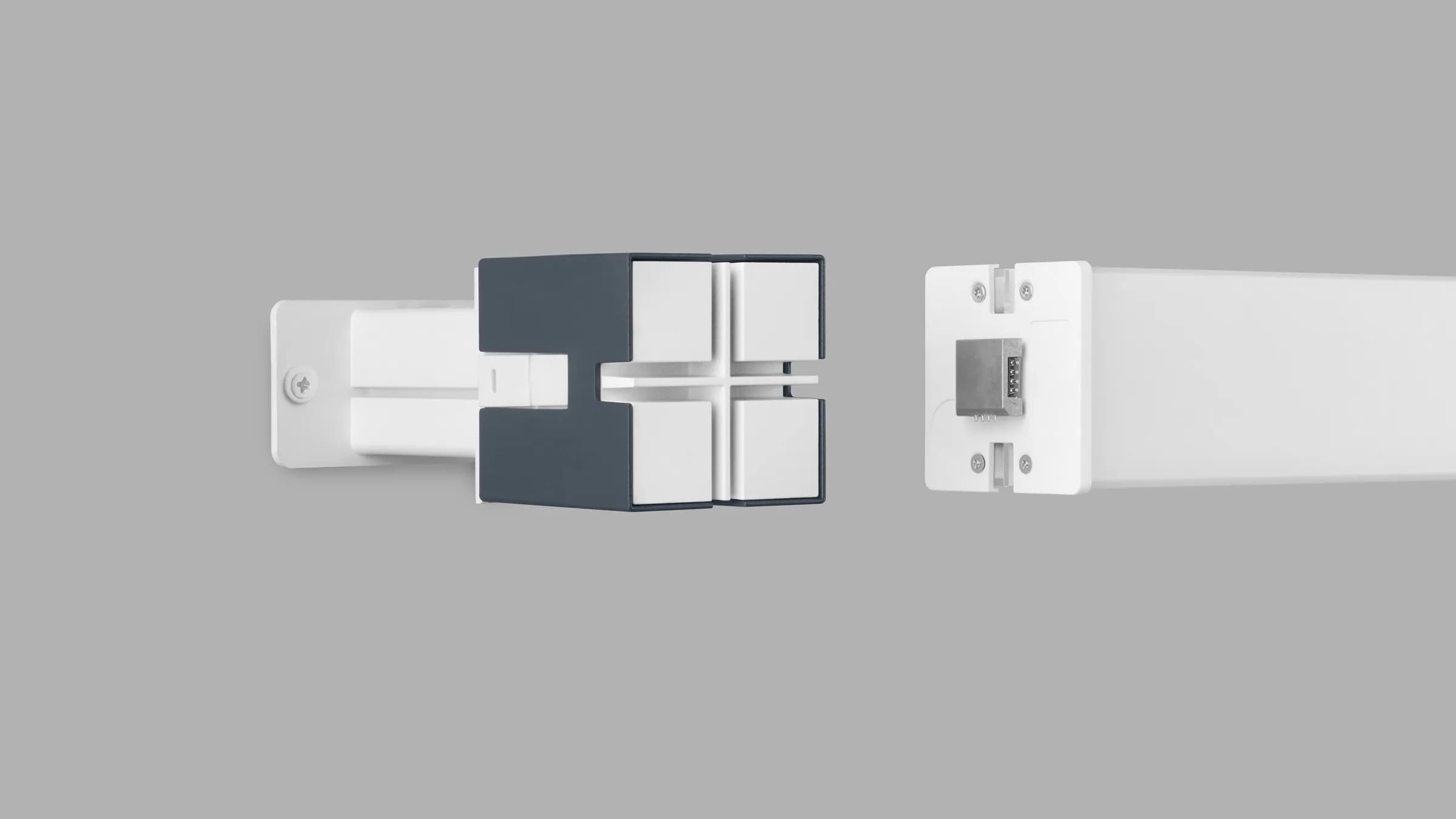

  • Blocks: There are three different kinds of blocks, delivered with wall brackets.
  • Powering: The light bars are instantly powered when placed inbetween the blocks.
  • Light distribution: Profile can be mounted in two directions, main direction of the light can be up and down or to the sides.
  • Acoustic tile: Vault can be installed with acoustic tile for an attractive lit effect and better acoustic environment.
  • Driverbox: A driverbox is available for installation with external drivers.

Applications

  • Office & education

Technical data

  • SDCM: 3
  • CRI: 80
  • CCT: 3000 K / 4000 K
  • Lumen output: 2100-3850 lm
  • Efficiency: 78-87 lm/W
  • Lifetime LED: L90B10 60 000h
  • Material: Profile in extruded aluminium.
  • Driver: Equipped with 24V DALI driver from Tridonic.
  • Diffuser: Opal acrylic glass.
  • Power: 22–37 W

Protection and resistance

  • IP20
