Products/ WALL LUMINAIRES/ PILO WALL LUMINAIRE

Ateljé Lyktan Pilo – seinavalgusti

Image 1 of 3

Ateljé Lyktan

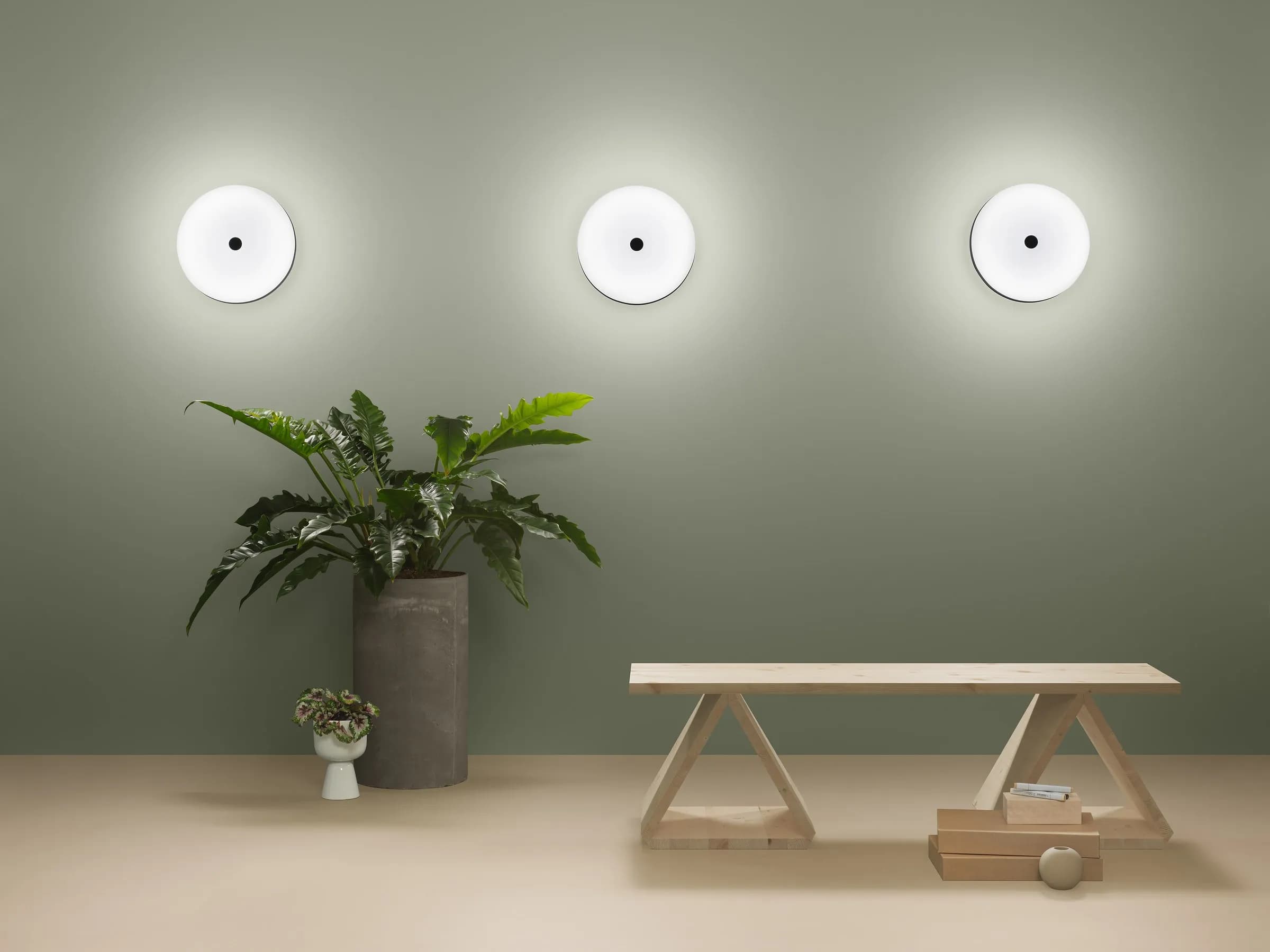

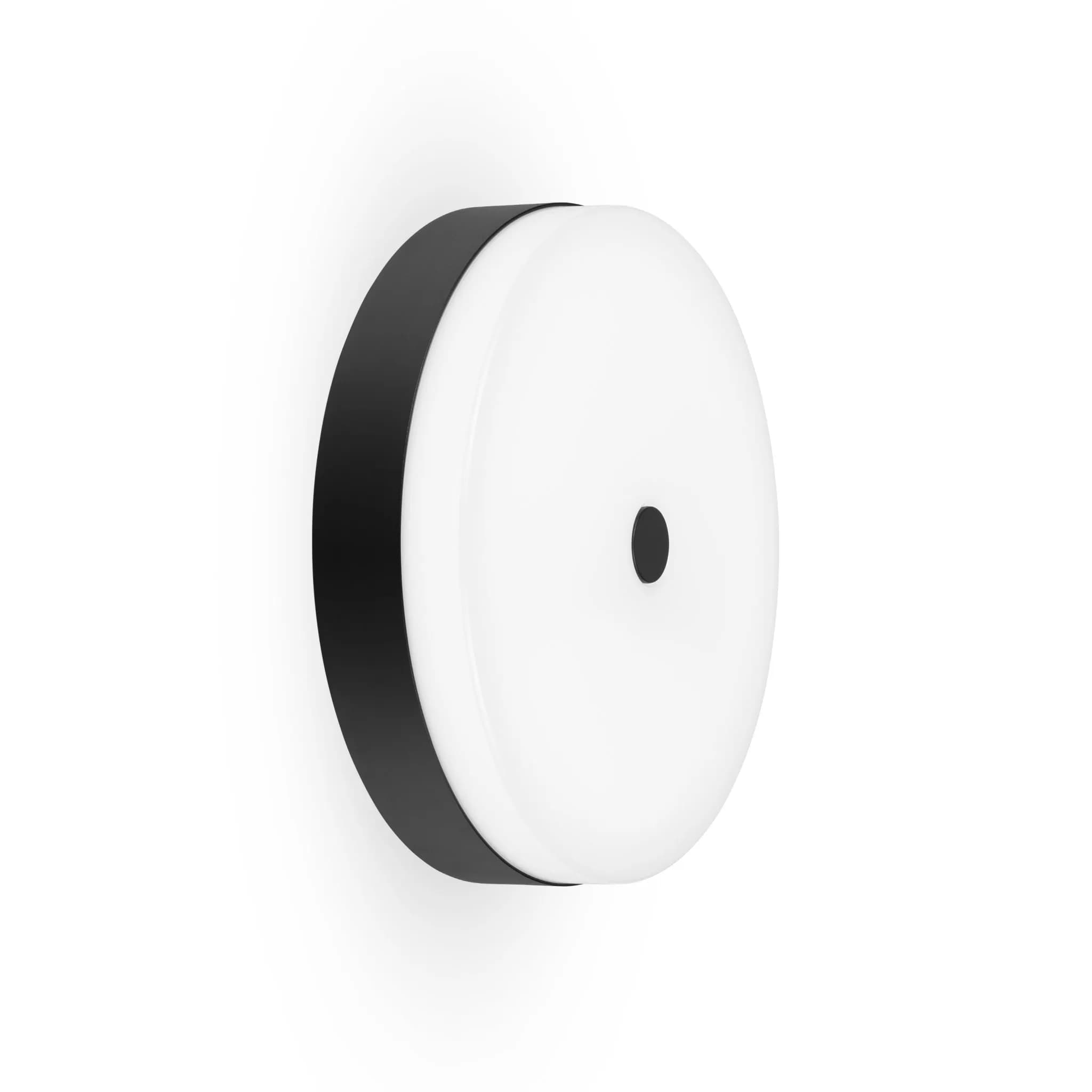

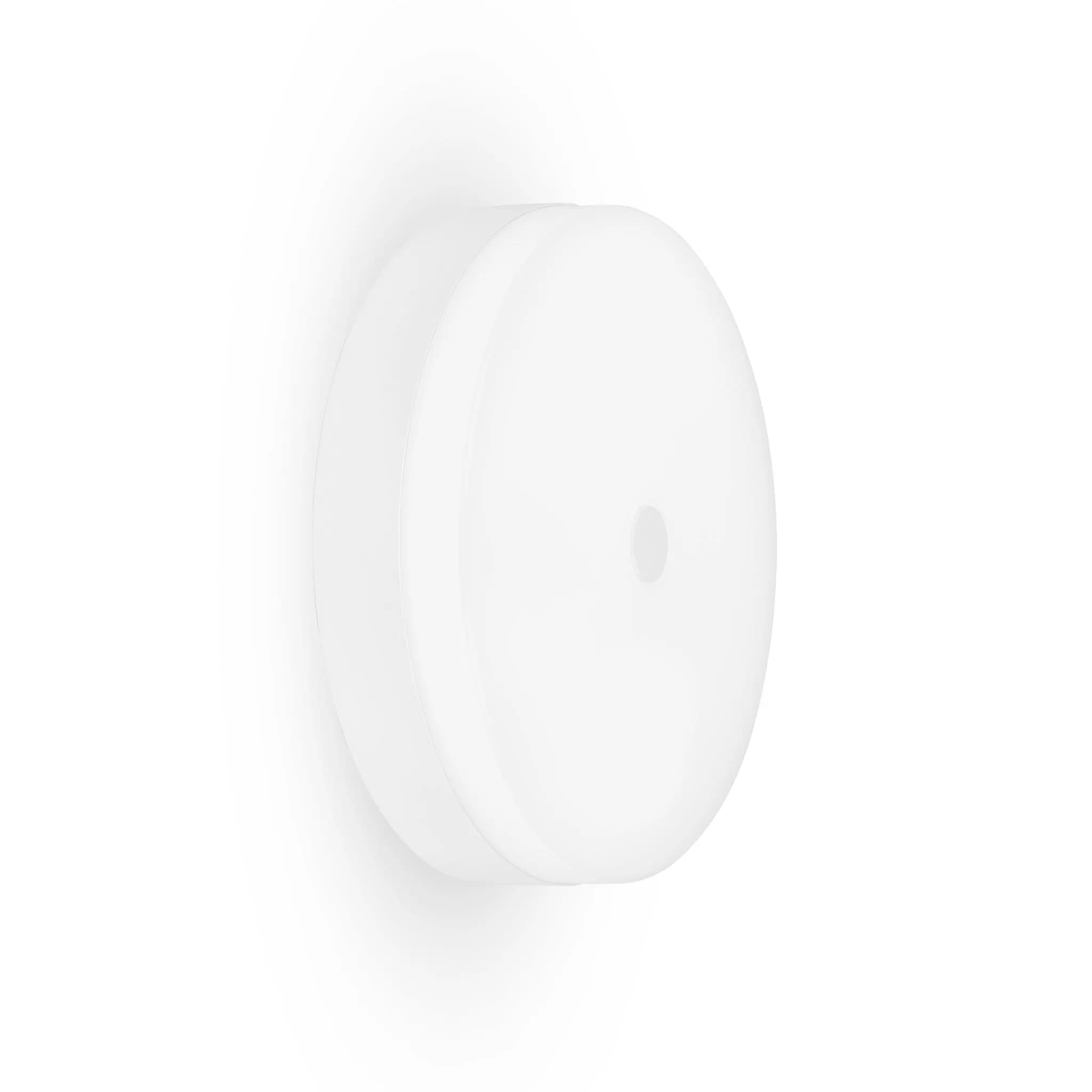

Ateljé Lyktan Pilo wall luminaire

Elevate the atmosphere in your surroundings with Pilo's minimalist design, meticulously crafted to seamlessly complement public environments. "A technically designed product with a focus on lighting technology, flexibility, and high-quality surface and detail finishing," says designer Olle Lundberg. We appreciate Pilo's clean aesthetics that effortlessly blend into various contexts, whether it's in offices, entrances, or shared spaces. With its carefully developed lighting technology, Pilo ensures a harmonious blend of function and ambiance, creating an inviting and comfortable feel in every room.

Manufacturer
Ateljé Lyktan
Luminaire type
Wall luminaires

from 386 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Made to be an easy installation: Three grooves with 90 degree distribution are integrated in the luminaire housing to allow installation with external cable.
  • Our intelligent lighting solution: Pilo can be equipped with the wireless controls solution Organic Response, where PIR sensors react to presence and communicate with nearby sensors through IR and radio waves to efficiently light the space according to the actual…
  • Master & follower: The integrated microwave sensor with motion detection acts as a motion switch and offers simple on/off function or corridor function in three levels, for a single luminaire or a group of luminaires (master and follower).
  • Emergency light function: We can supply Pilo with integrated emergency light function with DALI-2 interface and automatically controlled and monitored testing.

Applications

  • Office & education
  • Healthcare
  • Hospitality & residential

Technical data

  • Material: Luminaire housing in painted die-casted aluminium.
  • Light source: Includes LED light source.
  • Driver: DSI/DALI driver that regulates the light with amplitude modulation creating a flicker-free light.
  • Weight: 1,5kg
  • Luminous flux: 1500–3400 lm
  • Power: 13–32 W

Protection and resistance

  • IP20 (IP21)
  • IP20
  • IP20/IP21
  • IK08
