Ateljé Lyktan Halo 450

Image 1 of 3

Ateljé Lyktan

Ateljé Lyktan Halo 450

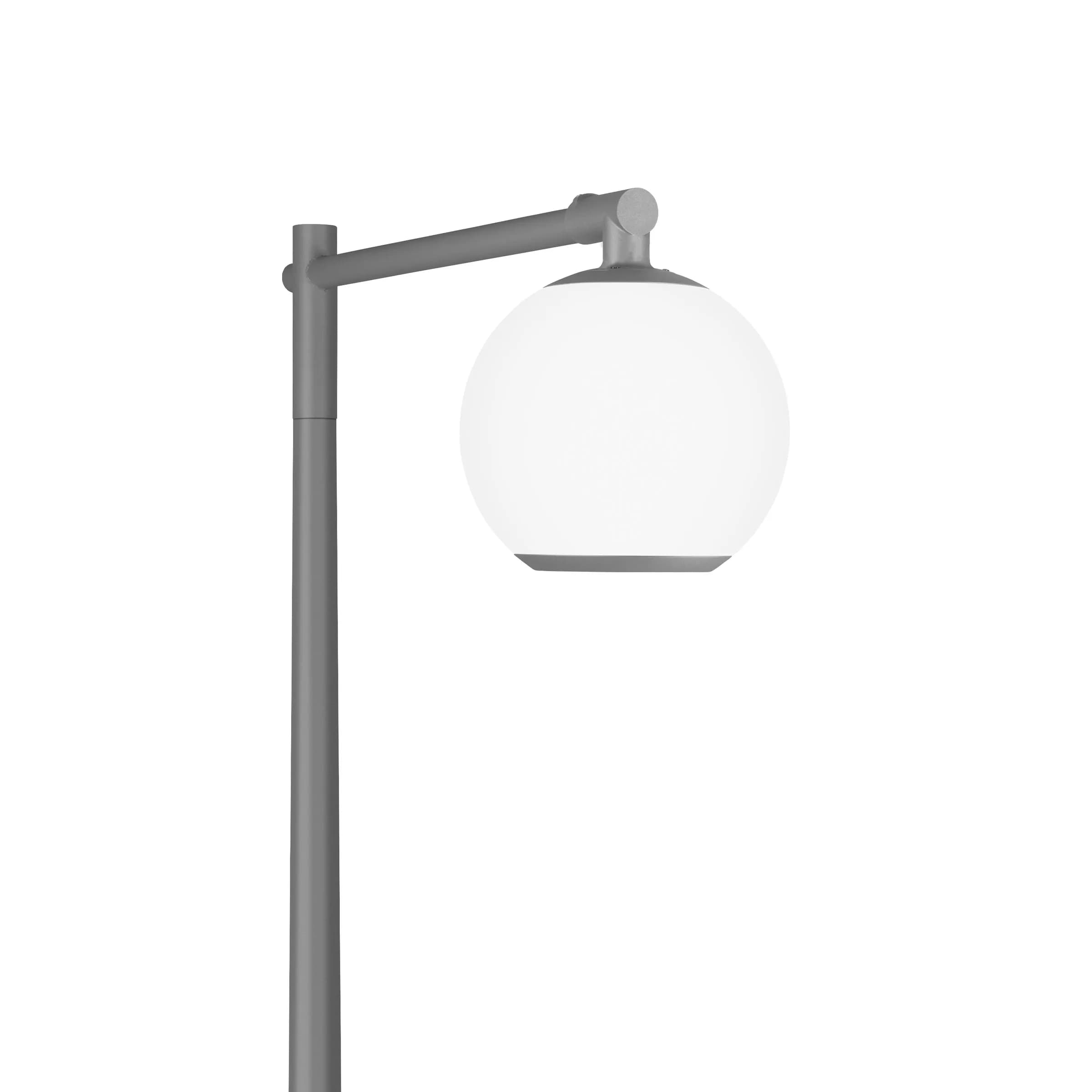

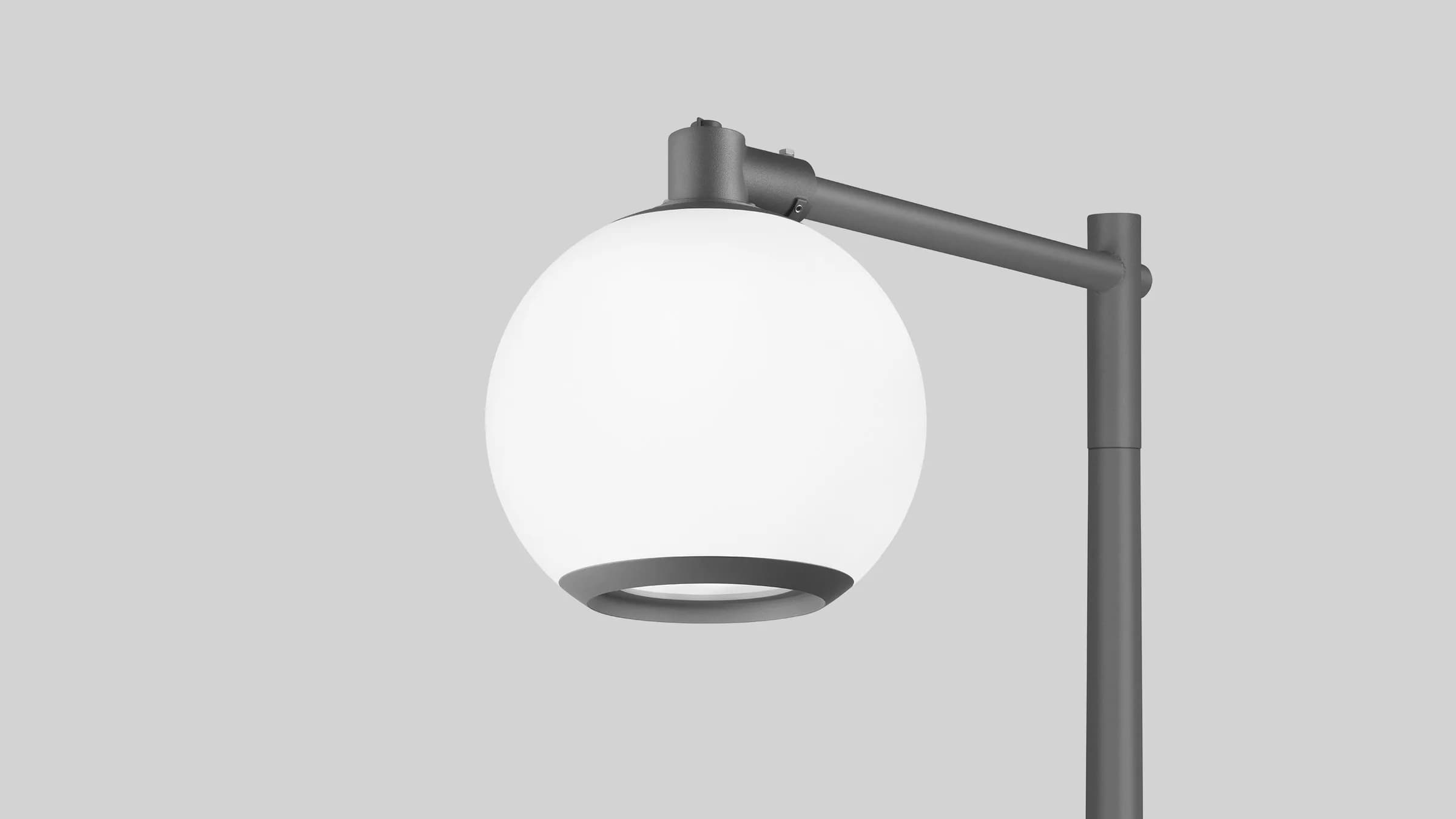

Stefan Borselius was asked to design an outdoor luminaire for the street environment to add to ateljé Lyktan’s outdoor product range. It had to fit in with many different surroundings – everything from old city districts to more modern architecture. The result was Halo. “I started out with a basic shape, the circle, a sphere. I wanted to create something that would blend in with the surroundings. A shining globe, like a little moon,” Stefan tells us.

Manufacturer
Ateljé Lyktan
Luminaire type
Outdoor luminaires

from 1 476 €

VAT included. We'll put together the exact price for the version you choose in your quote.

On the manufacturer site

Technical data, dimensioned drawings and files are on the manufacturer’s own page, where the latest version always lives.

Features

  • Smart lighting with sensors: It is also possible to add Zhaga sensors to the luminaires to monitor areas with high activity, identifying where the need is greatest and at what time of day.
  • Asymmetric: Halo 450 GC has an asymmetric elliptical light distribution in combination with a technical BrightView film for walk and cycle path.
  • Symmetric: Halo 450 with symmetrical reflector that gives a symmetric omnidirectional light scattering.
  • Installation: For mounting on 48 mm lamp post arms.
  • Creativity Illuminated: Halo is a luminaire whose light source puts creativity at the forefront and opens the door to unique and inspiring projects.

Applications

  • Street & Pathways
  • Urban spaces

Technical data

  • SDCM: 3
  • CRI: 80
  • CCT: 3000K/4000K
  • Efficiency: 59-92 lumen/W
  • Lifetime LED: L90B10 50 000h/100 000h
  • Material: Luminaire body and connection to arm in die-casted aluminium.
  • Light source: Includning LED module with color temperature 3000K or 4000K.
  • Diffuser: Symmetrical light scattering: Clear glass or microprismatic acrylic glass.
  • Weight: Luminaire: 6,5 kg.
  • Luminous flux: 1100–3000 lm
  • Power: 14–42 W

Protection and resistance

  • IP65
  • IK08
  • Corrosivity category: Our outdoor products are in their standard performance painted for environments corresponding to corrosivity category C3.
